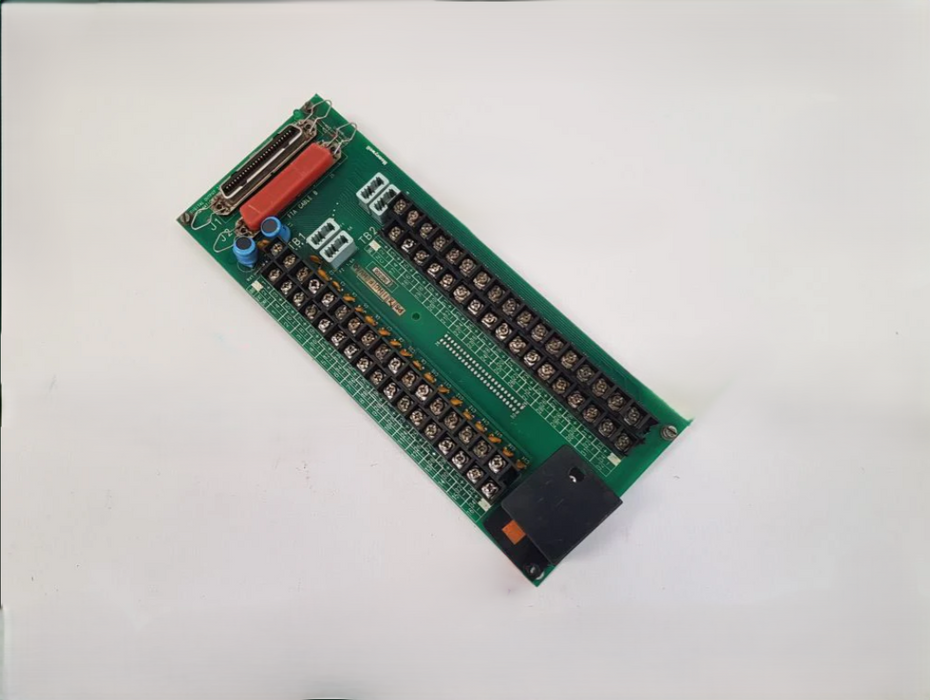

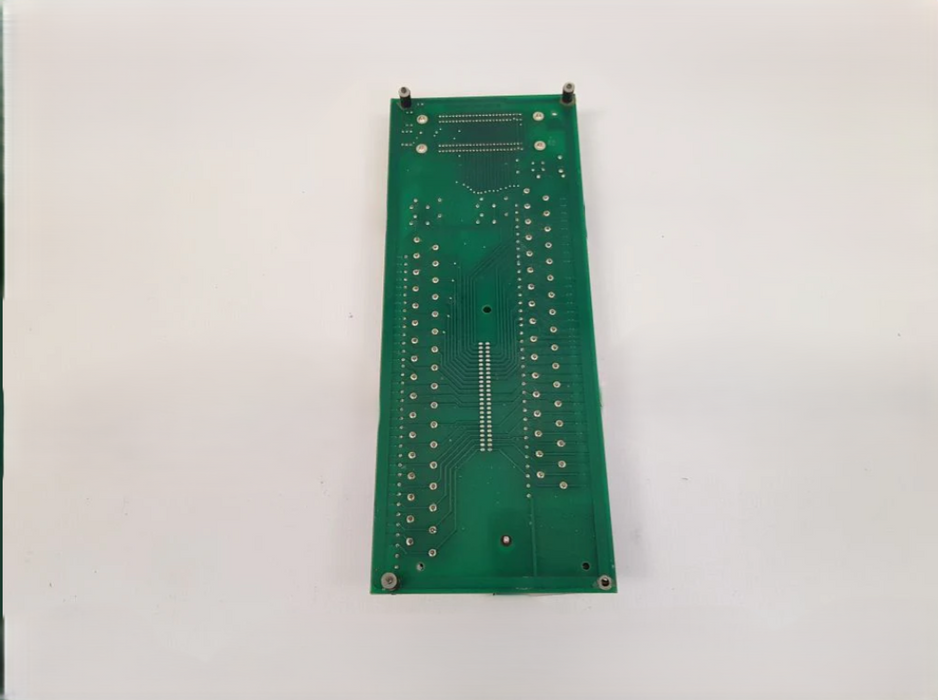

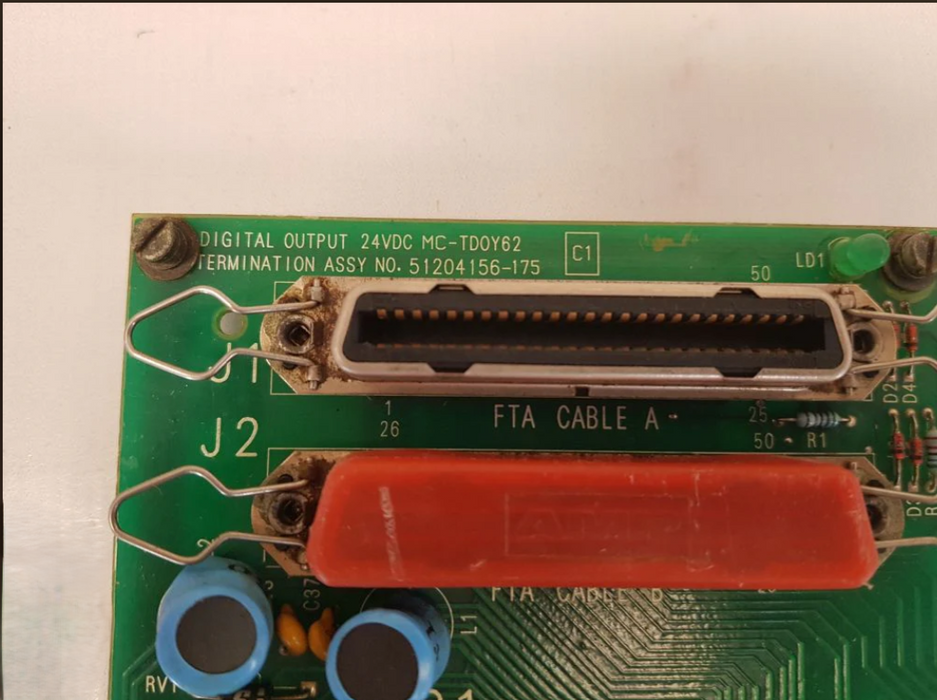

The Honeywell MC-TDOY62 (51204156-175) is a rugged Digital Output Field Termination Assembly (FTA) engineered for demanding industrial automation environments. Designed for use with the MU-PDOY22 digital output processor, it delivers 32 isolated output channels to power relays, solenoids, and indicators. Built with conformal coating, it ensures long-term reliability in extreme conditions. Ideal for both single and redundant configurations, this FTA is a compact, high-integrity solution for distributed control systems.

Model: MC-TDOY62

Part Number: 51204156-175

Applications:

• Industrial automation systems

• Process control systems

• Distributed Control Systems (DCS)

• Manufacturing Execution Systems (MES)

Key Features:

• Output Channels: 32 digital outputs

• Output Voltage: 24 VDC

• Load Voltage Range: 15 to 30 VDC

• Maximum Load Current: 500 mA per channel

• Output Type: Isolated digital outputs

• Terminal Type: Screw terminals

• Mounting: Rack-mounted

• Redundancy Support: Yes

• Power Supply: 24 VDC (±10%)

• Operating Temperature Range: -40°C to +70°C

• Storage Temperature Range: -40°C to +85°C

• Humidity: 5% to 95% non-condensing

• Dimensions: 30.73 cm × 12.446 cm × 5.25 cm

• Weight: Approximately 2.0 kg

• Country of Origin: USA
