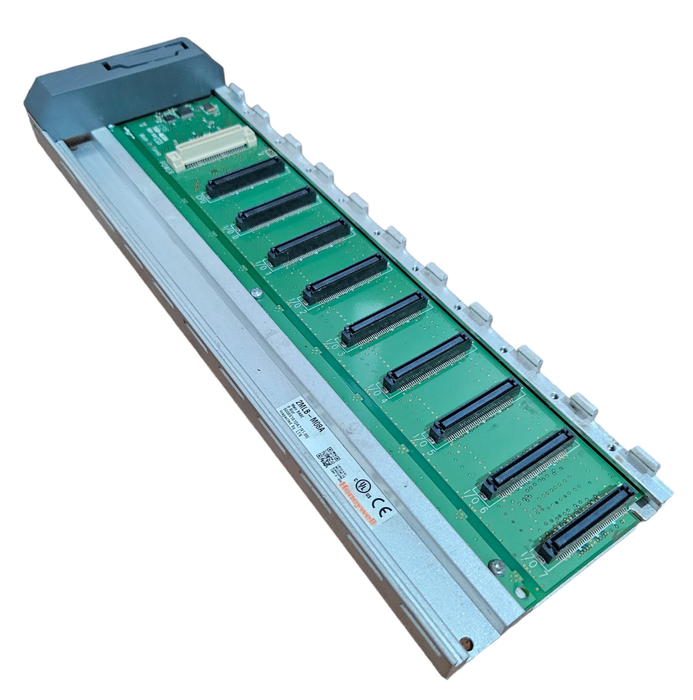

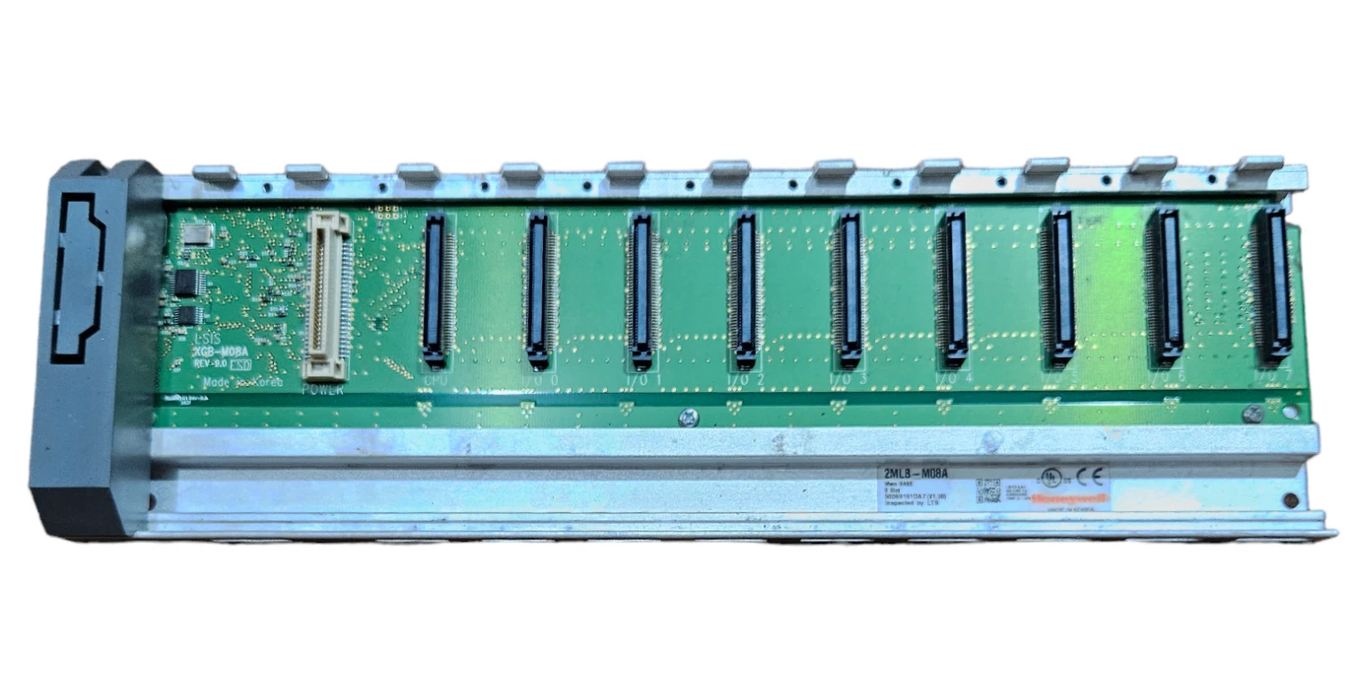

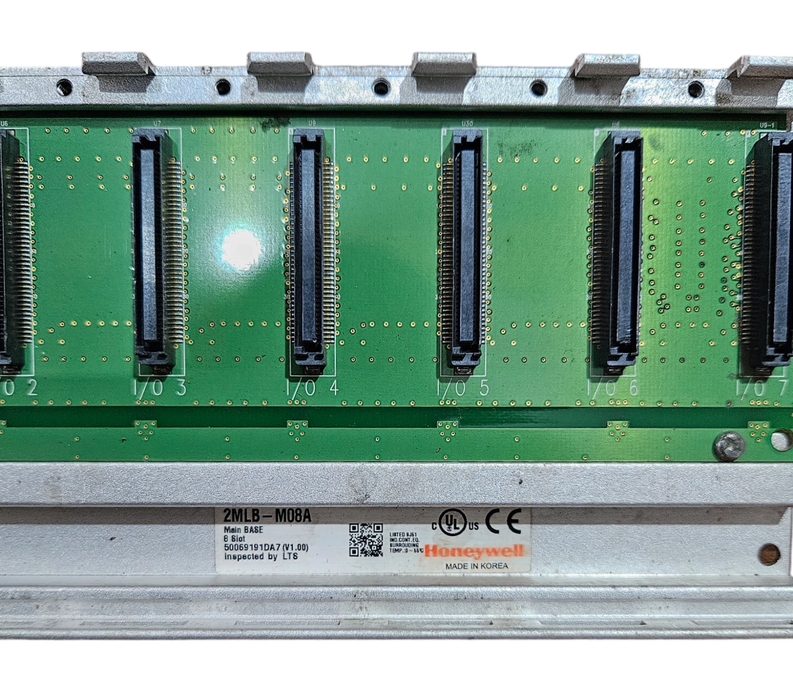

The Honeywell 2MLB‑M08A is an 8‑slot main base designed for MasterLogic‑200 PLC systems. Supports up to 7 I/O expansion bases and 6,144 I/O points.

Model: 2MLB‑M08A

✅ Applications:

• Serves as the primary I/O base in MasterLogic‑200 PLC systems

• Supports a CPU and up to 7 expansion bases (total of 96 I/O slots)

• Ideal for process control, SCADA, distributed automation, and industrial systems

🔍 Key Specifications:

• Module Type: 8‑slot main CPU base for ML‑200 PLC

• Slot Configuration: 8 modules per base; supports total of 96 local slots with expansions

• Maximum I/O: Up to 6,144 I/O points in a single-base configuration

• Compatibility: Works with MasterLogic‑200 CPU modules and Series‑8 I/O cards

• Dimensions: 318 × 98 × 19 mm

• Weight: Approx. 420 g (non-coated), 590 g per vendor listing

• Operating Conditions: 0–55 °C ambient; 5–95 % non-condensing humidity

• Coating: Optional conformal coating version (2MLB‑M08A‑CC) available
