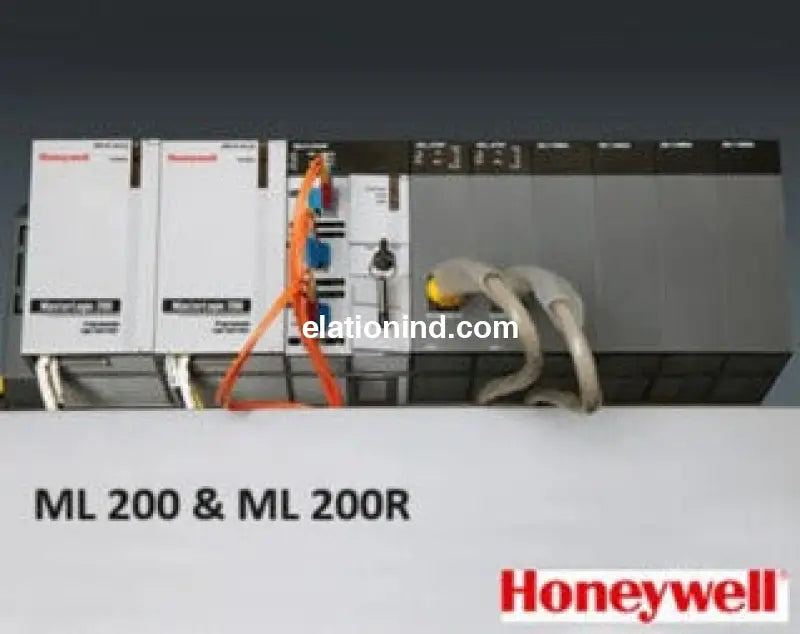

The Honeywell 2MLF‑AV8A is an 8-channel analog voltage input module for MasterLogic‑200 PLCs, supporting multiple voltage ranges, 14-bit resolution, and 16-bit data format at 250 µs/channel.

Model: 2MLF‑AV8A

✅ Applications:

• Voltage signal acquisition for MasterLogic‑200 PLCs

• Industrial process control requiring multi-range inputs

• OEM systems, SCADA, and automation panels

🔍 Key Features:

• Channels: 8 analog voltage inputs

• Input Ranges: Selectable DC 1–5 V, 0–5 V, 0–10 V, or –10–10 V

• Resolution: 14-bit conversion (~1 part per 16,000); output in 16-bit data

• Conversion Speed: 250 µs/channel

• Isolation: Photo-coupler isolation between I/O terminals and PLC power (no inter-channel isolation)

• Power Consumption: 420 mA @ 5 VDC

• Weight: ~140 g

• Terminal Connection: 18-point terminal block

• Output Formats: Unsigned, signed, precise, or percentile value per channel
