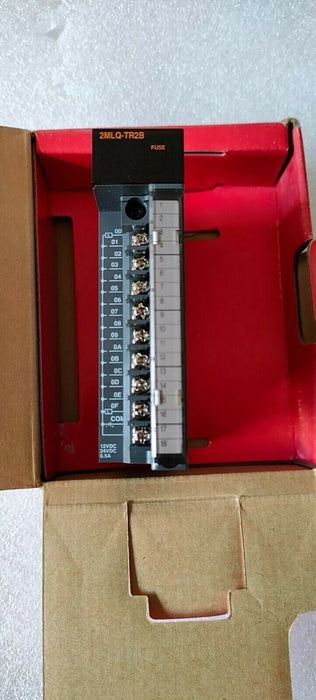

The Honeywell 2MLQ‑TR2B is a 16-point source-type transistor output module for MasterLogic‑200 PLCs, offering fast 1 ms switching, 0.5 A/channel, and 70 mA full-load current.

Model: 2MLQ‑TR2B

✅ Applications:

• Digital output expansion for MasterLogic‑200 (ML200) PLCs

• Industrial automation and machine control

• Driving 12–24 V loads like valves, indicators, and relays

• OEM panels and modular control systems

🔍 Key Features:

• Output Points: 16 transistor outputs (source type)

• Rated Voltage: DC 12 / 24 V (10.2–26.4 V)

• Max Load Current: 0.5 A per channel; 4 A per common

• Inrush Capability: Up to 4 A for 10 ms

• Response Time: ≤ 1 ms ON→OFF and OFF→ON

• Isolation: Photo-coupler output isolation; includes Zener surge absorption

• Fuse Protection: Dual 4 A module fuse; blown fuse LED & CPU signal

• Supply Current: ≈ 70 mA when all points ON (@ 24 V)

• Interface: 18-pin terminal block connector; M3 screw terminals

• Weight: 0.12 kg
