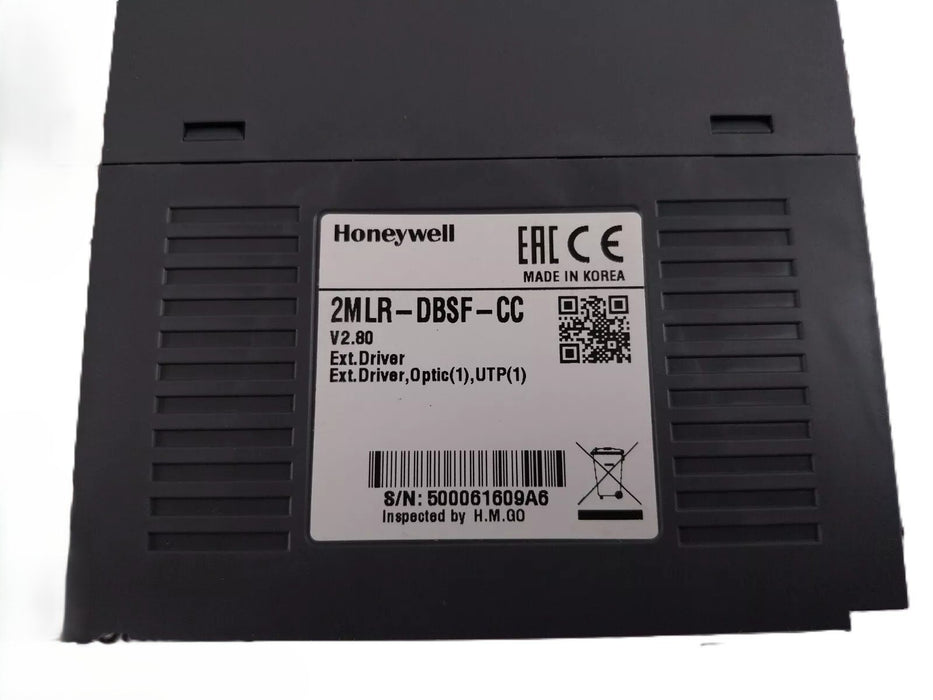

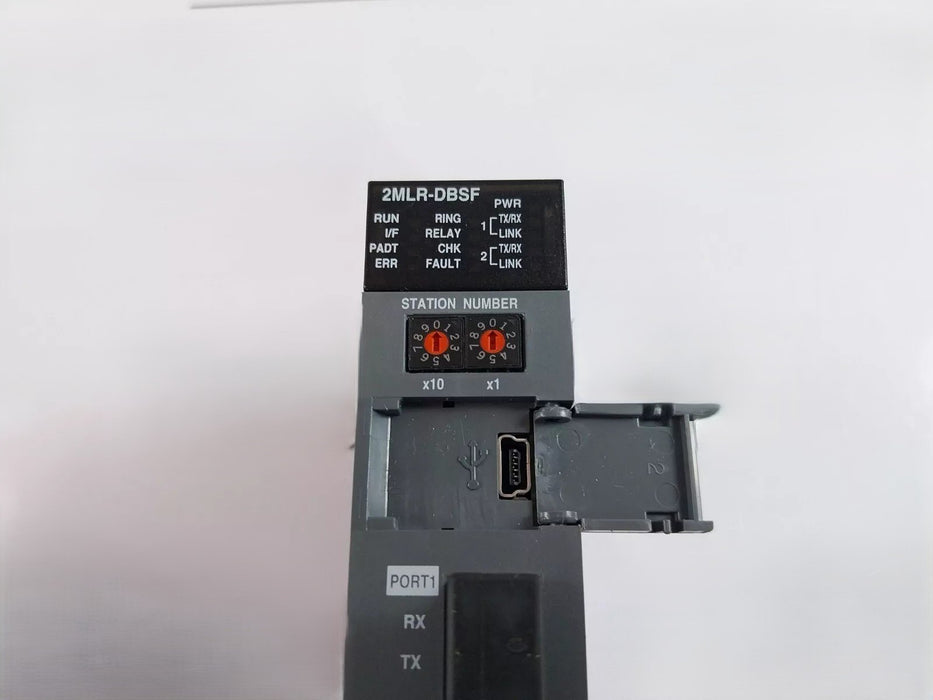

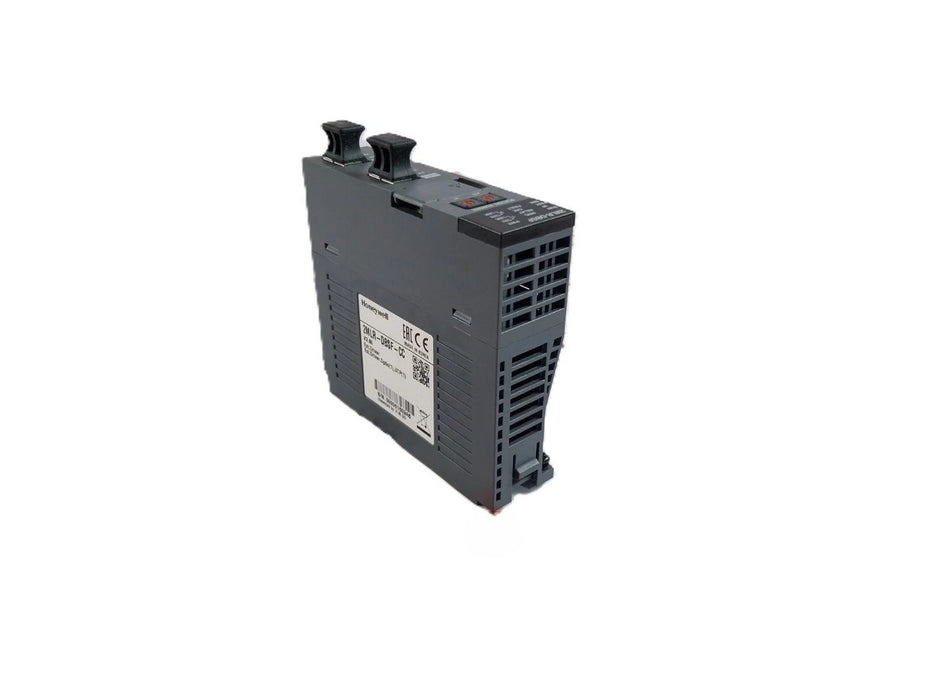

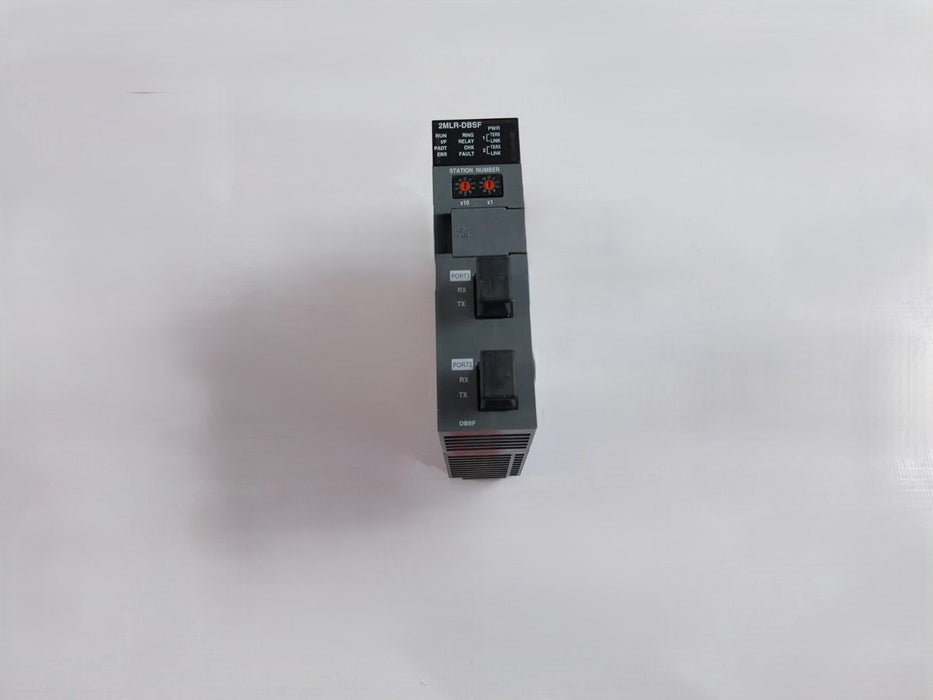

The 2MLR‑DBSF‑CC is a conformal‑coated fiber‑optic expansion driver module for MasterLogic‑200 PLC, enabling remote I/O via multimode fiber up to 2 km.

Model: 2MLR‑DBSF‑C

✅ Applications:

• Drives remote I/O expansion bases over fiber-optic network in MasterLogic‑200/200R systems

• Ideal for distributed industrial automation, SCADA, and PLC networking with EMI immunity

• Supports ring topology and up to 31 remote expansion bases at distances up to 2 km

🔍 Key Specifications:

• Module Type: Fiber‑optic I/O interface module for remote I/O expansion

• Media Type: 62.5/125 µm multimode fiber with LC connector; max 2 km range

• Network Topology: Fiber ring supporting redundancy and expansion

• Operating Temperature: 0–55 °C (standard MasterLogic‑200 range)

• Weight: ~190 g conformal‑coated version

• Coating: IPC‑grade conformal coating (“CC”) for enhanced durability in harsh environments

• Power & Draw: Powered via base backplane; draws negligible current (passive module)
