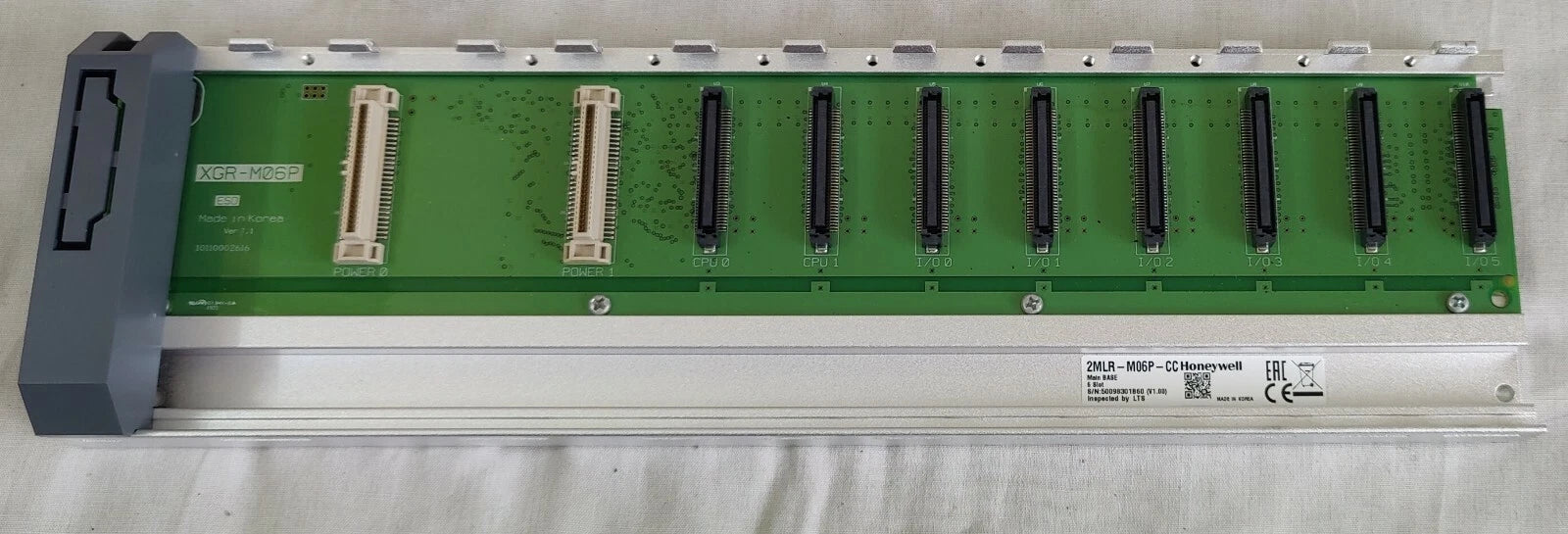

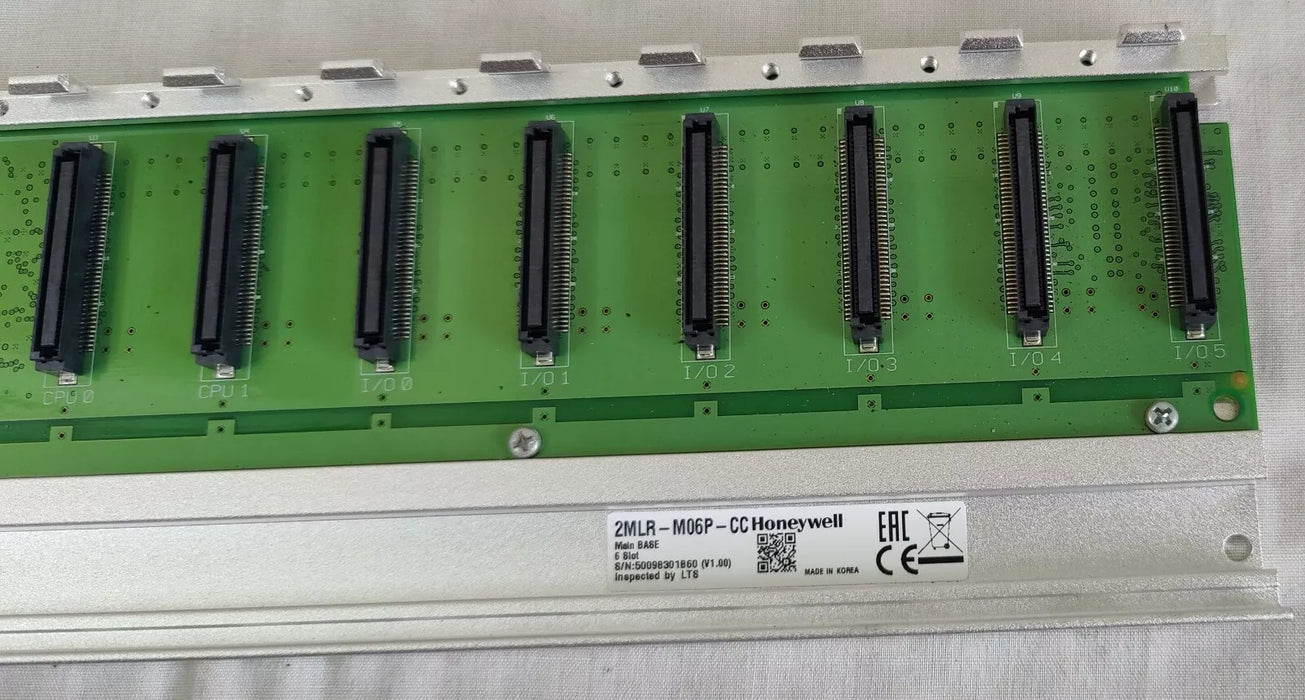

Honeywell 2MLR‑M06P‑CC MasterLogic‑200 PLC main I/O base: 6‑slot, 346×98×19 mm, 211 mA draw, supports redundant CPU, UTP/fiber I/O, conformally coated G3 for industrial use.

Key Specifications

• Model / P/N: 2MLR‑M06P‑CC – MasterLogic‑200 Main I/O base with 6 slots

• Slot Capacity: Houses up to 6 I/O modules for digital, analog, or specialty I/O

• Dimensions: 346 × 98 × 19 mm (≈13.6″ × 3.9″ × 0.75″)

• Current Draw: ~211 mA @ 5 V or supply voltage typical

• Weight: ~0.34 kg (0.75 lb)

• Coating: G3 conformal coating suitable for harsh environments

• Redundancy Support: Compatible with redundant 2MLR-CPUH PLC configurations via UTP/fiber expansion

• Communication Support: Works with FEnet/Hybrid modules using CAT5 (100 m) or fiber (2 km) to attach expansion bases

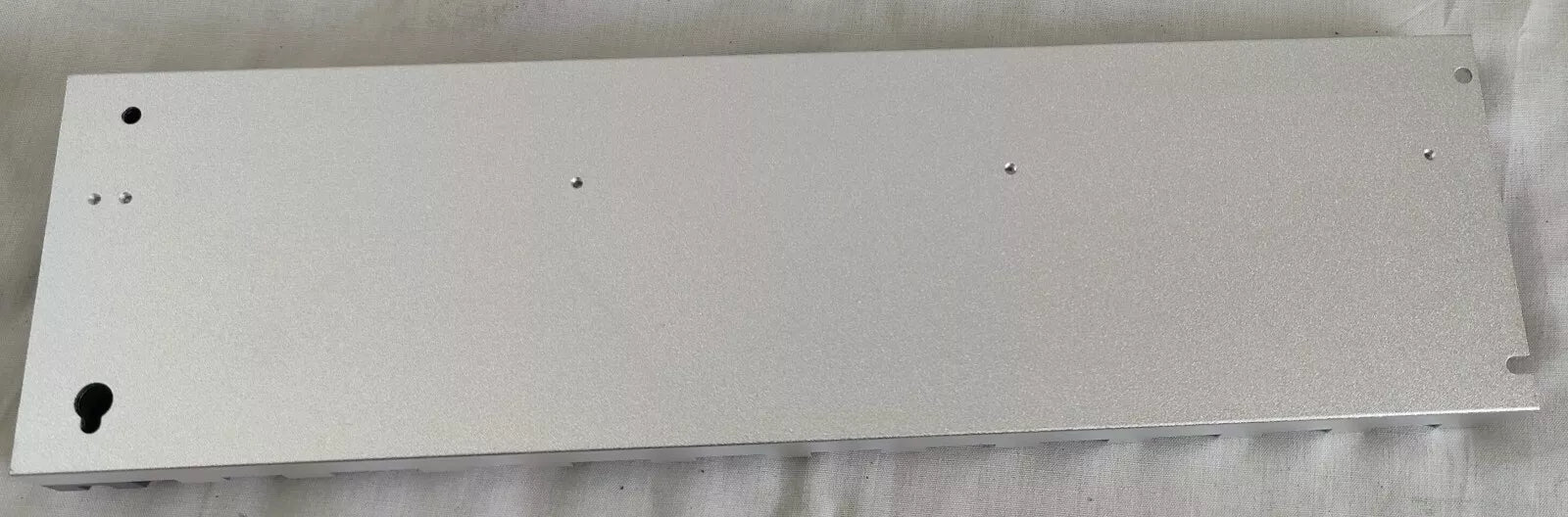

• Mounting: Standard MasterLogic rack interface for modular PLC deployment

• Use Case: Primary I/O chassis for distributed control and redundancy architectures
