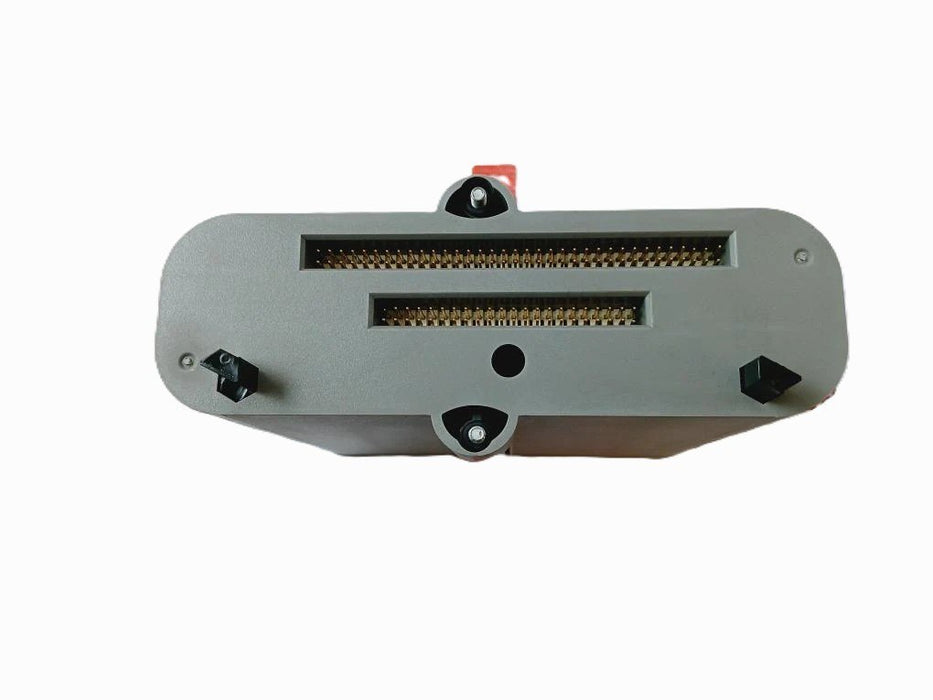

The Honeywell 8C-PAIMA1 (Part No. 51454473-175) is a precision low-level analog input module designed for Series 8 C300 controller systems. It provides 16 isolated channels capable of reading thermocouple (types J, K, T, E, R, S, B) and RTD sensors (2-, 3-, and 4-wire). With features like cold-junction compensation, signal linearization, and 500 V galvanic isolation, it's engineered for high-accuracy temperature measurements in harsh industrial environments.

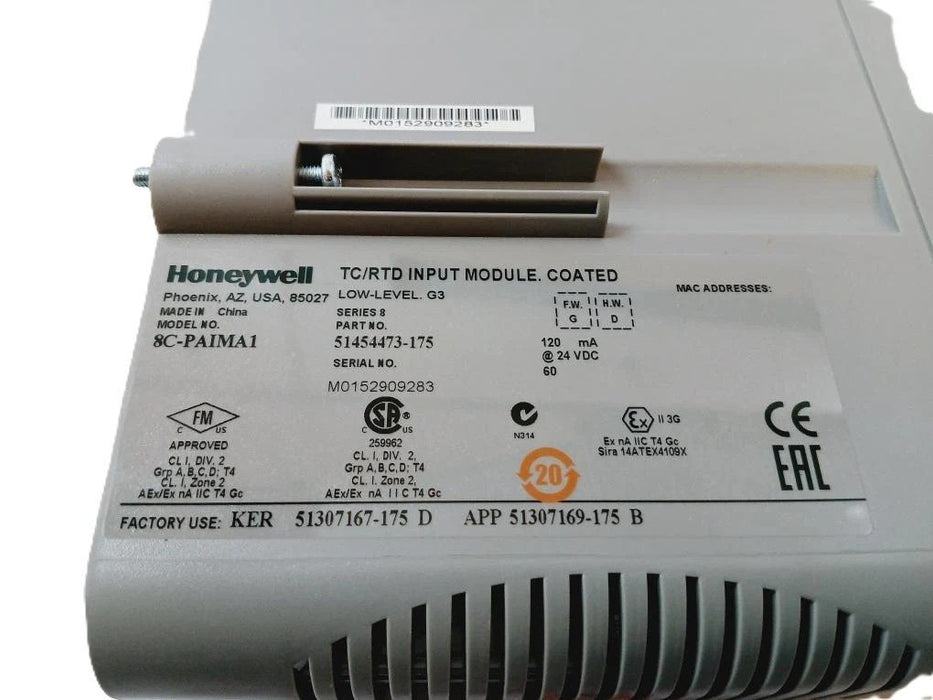

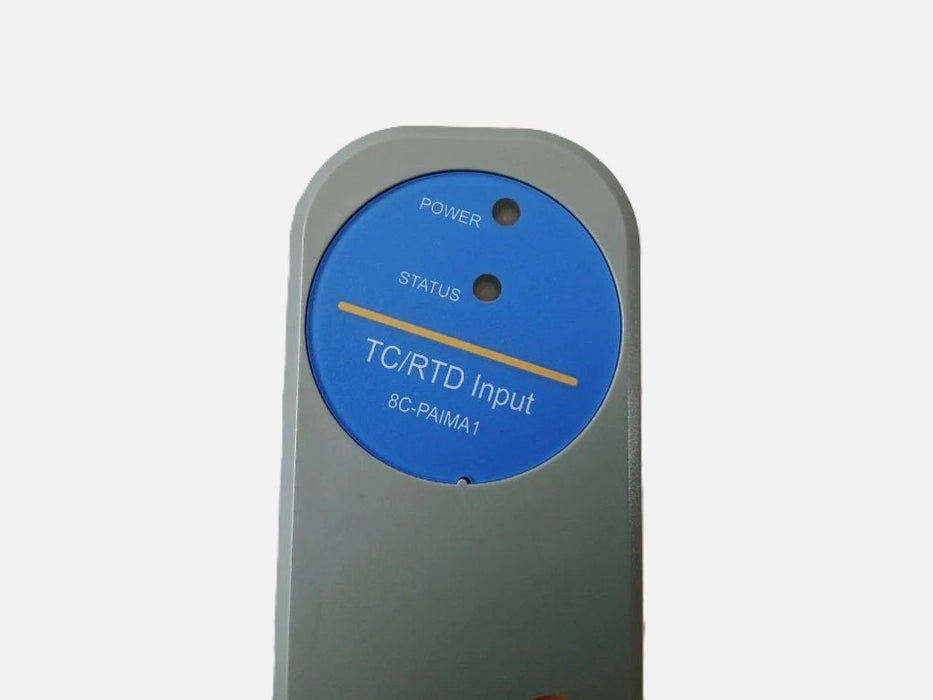

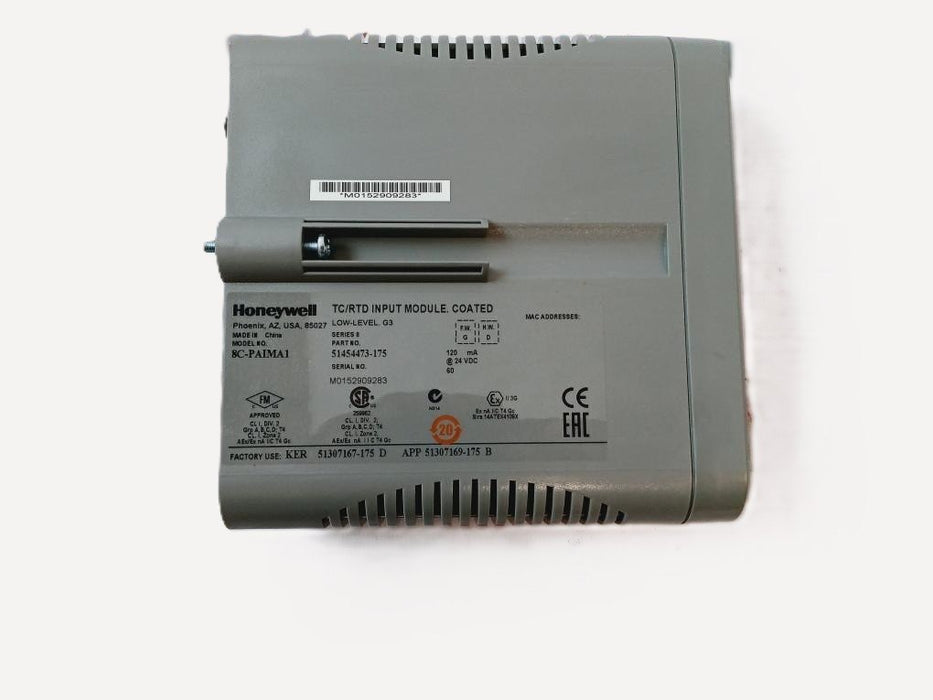

Model: 8C-PAIMA1

Part Number: 51454473-175

Applications:

• Industrial automation systems

• Factory and process control networks

• Building automation

• Transportation and infrastructure

Key Features:

• Input Channels: 16 analog inputs

• Input Types: Thermocouple (Types J, K, T, E, R, S, B) and RTD (2-wire, 3-wire, and 4-wire)

• Input Range: -200°C to +850°C (TC), -200°C to +400°C (RTD)

• Accuracy: ±0.15% of full scale

• Resolution: 16 bits

• Signal Conditioning: Cold-junction compensation, linearization, filtering

• Isolation: 500V galvanic isolation between channels and system

• Voltage Rating: 24 VDC

• Module Current Rating: 120 mA

• Mounting: Rack-mount (C300 system)

• Dimensions: 5.1 cm x 26.7 cm x 17.8 cm (2.01″ x 10.51″ x 7″)

• Weight: 0.3 kg (0.66 lbs)

• Certifications: CE, FCC, UL
