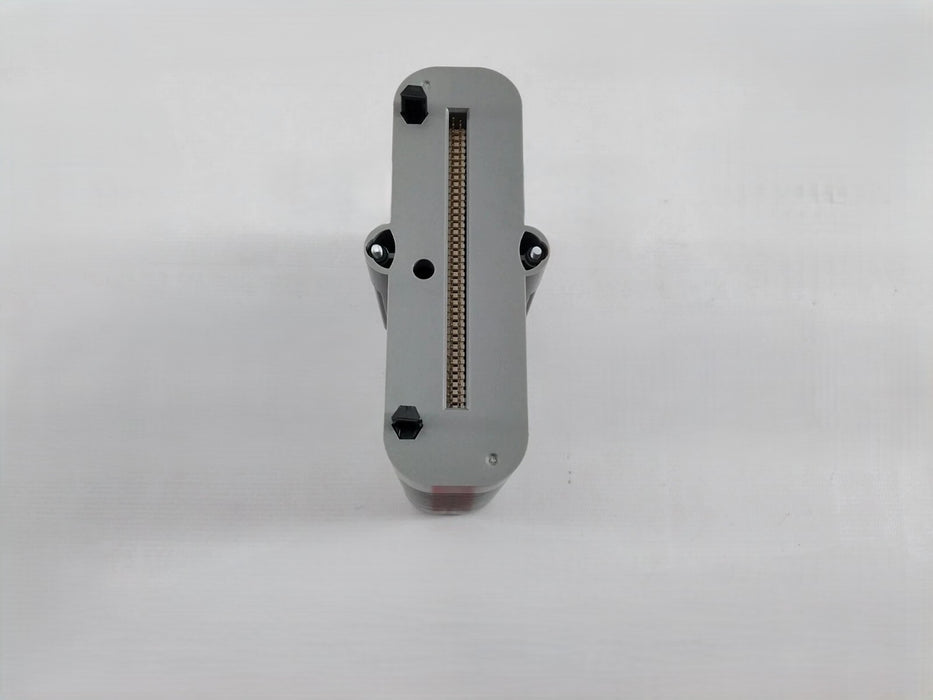

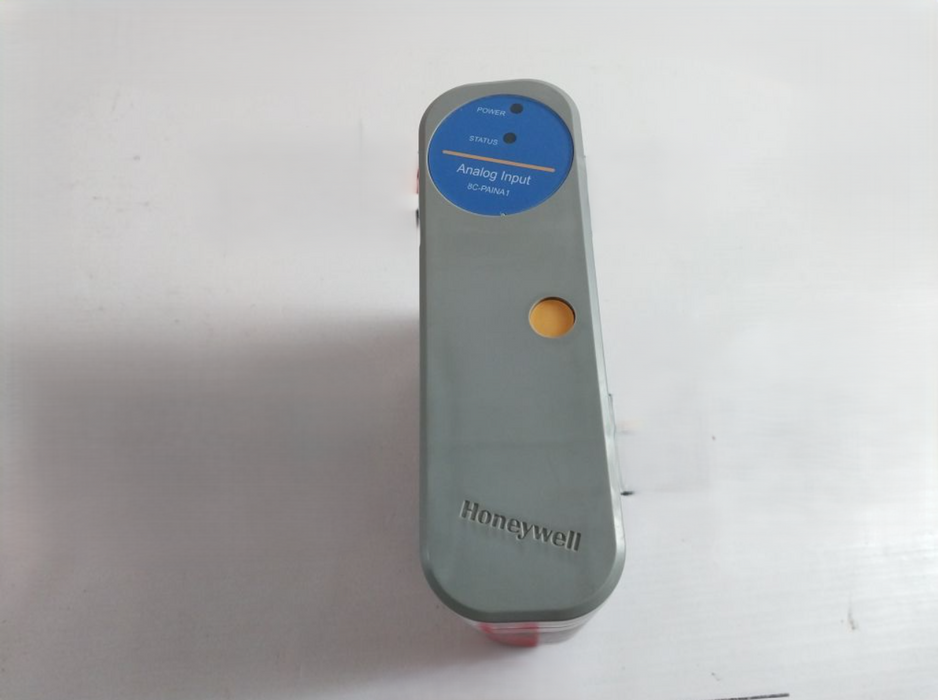

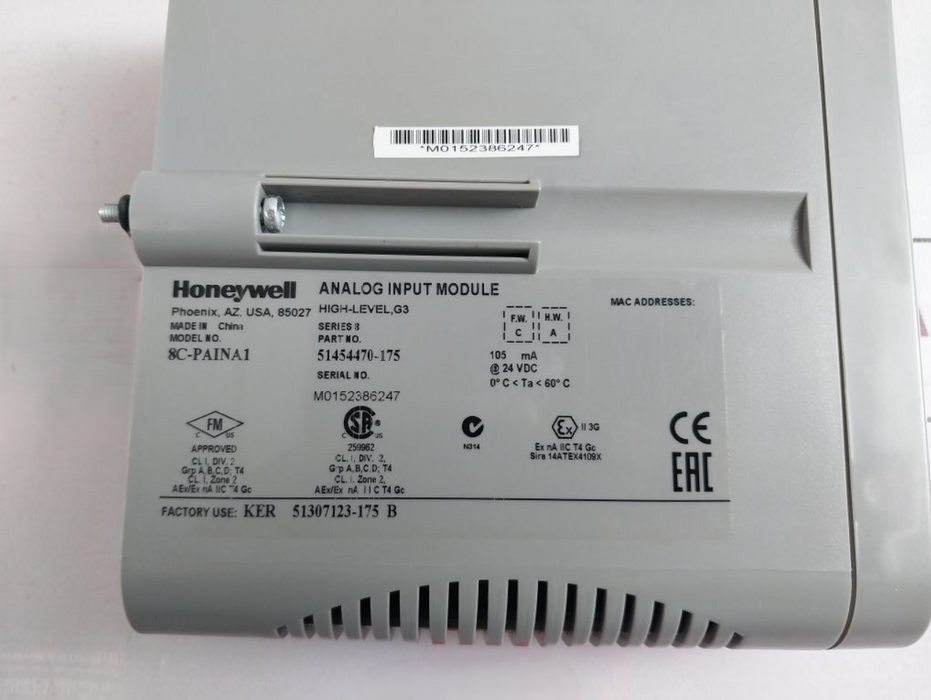

The Honeywell 8C-PAINA1 is a premium 16-channel analog input module (single-ended, high-level, non-HART) crafted for the Series 8 C300 PLC platform. Designed for industrial-grade performance, this coated module supports hot-swappable operation and offers extensive self-diagnostics, making it ideal for continuous process control and automation environments. Compliant with Honeywell’s modular IOTA architecture, it ensures precision and resilience in demanding installations.

Key Specifications:

• Input Channels: 16 single-ended analog inputs


• Signal Type: 4–20 mA through 250 Ω


• A/D Resolution: 16 bits


• Accuracy: ±0.075% full-scale @ 23.5 °C ±2 °C; ±0.15% over 0–60 °C


• Isolation: Galvanic isolation up to 1000 VAC RMS or ±1000 VDC via I-Coupler


• Scan Rate: 50 ms per channel


• Signal Filtering: –3 dB @ 6.5 Hz single-pole RC filter


• Crosstalk: ≤ –60 dB (0–60 Hz)


• Input Protection: Rated for ±30 V relative to common


• Operating Temp: 0–60 °C; Storage –40–85 °C


• Voltage Rating: 24 VDC power


• Hot-Swap Capability: Supported for safe live maintenance


• Installation Size: Fits 6″ (non-redundant) or 12″ (redundant) IOTA bases

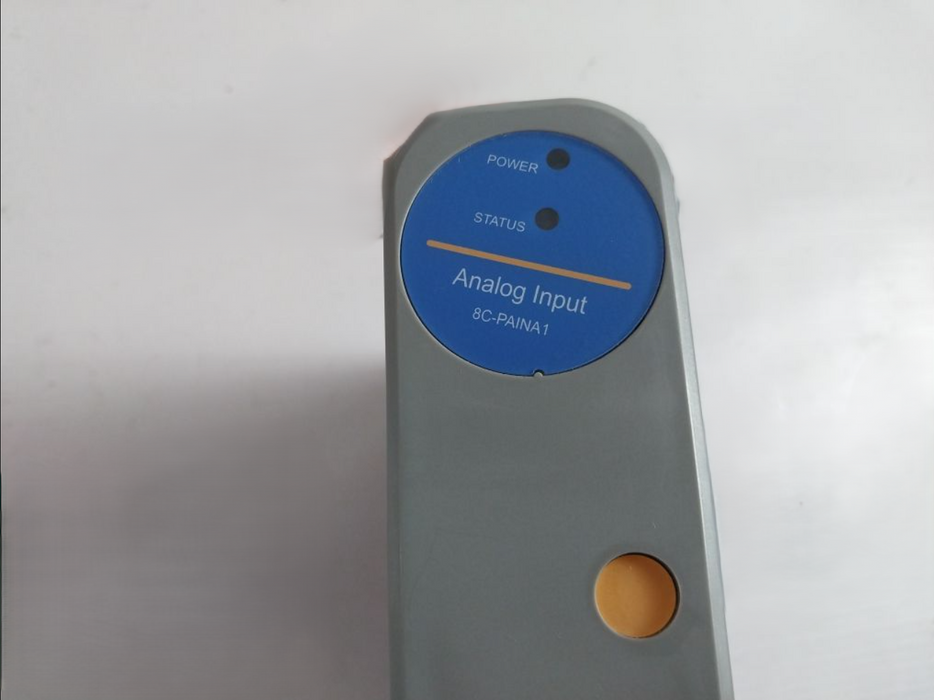

• Module Condition: Coated (environmentally protected) model
