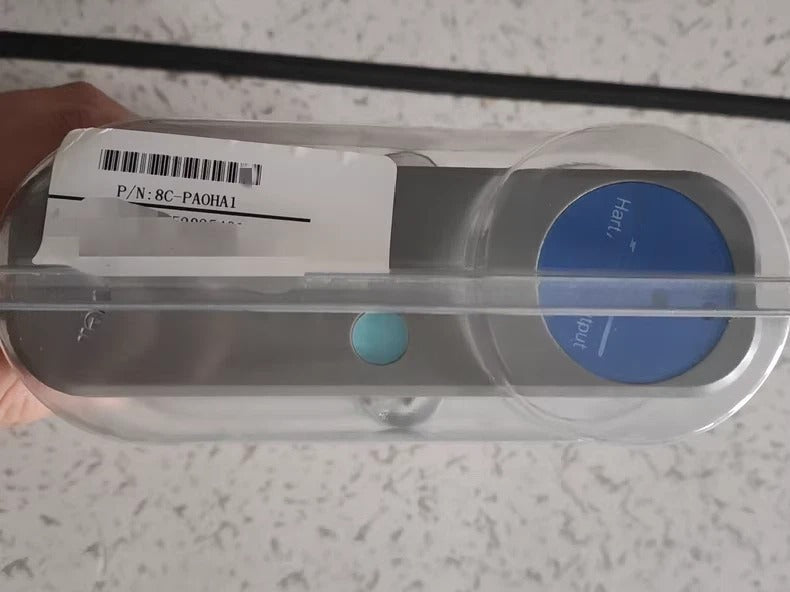

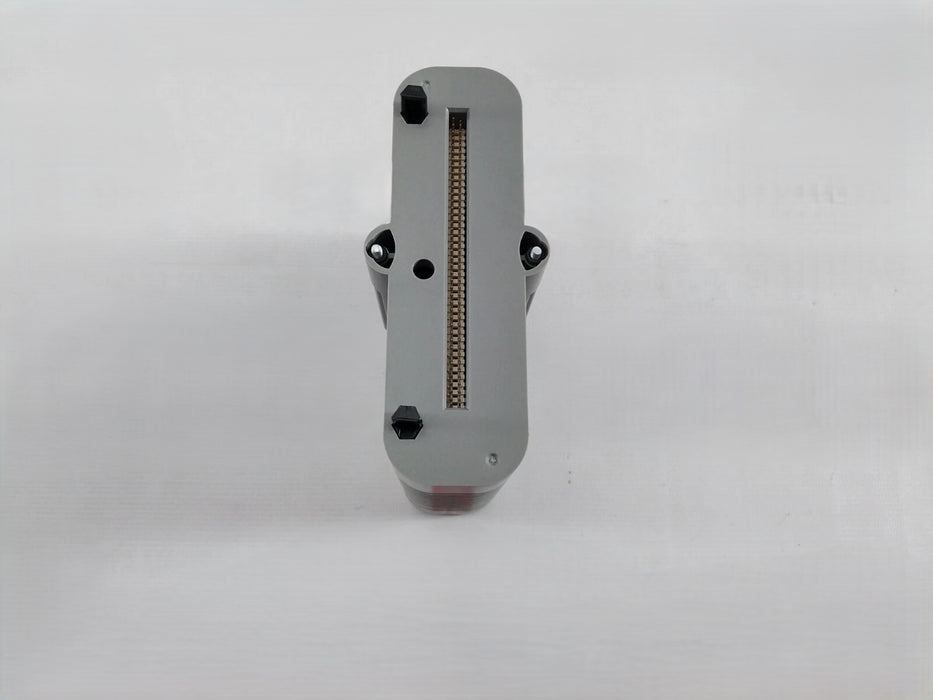

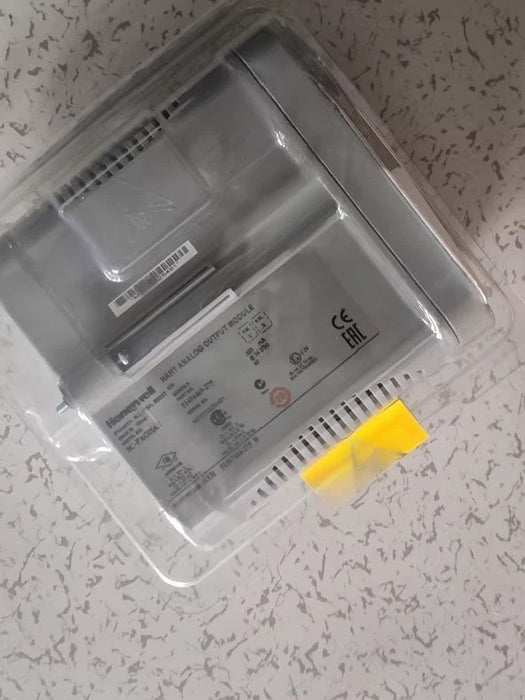

The Honeywell 8C-PAOHA1 is a precision 8-channel analog output module with HART communication capability, built for the Series 8 I/O platform. Ideal for controlling actuators, valves, and variable instruments, this rugged, coated module delivers both 4–20 mA and 0–10 V output options with high accuracy and rapid response. Backed by extensive diagnostics, fail-safe output options, and hot-swappable capability, it's perfect for mission-critical industrial automation.

Key Specifications:

• Output Type: 4–20 mA or 0–10 V per channel

• Number of Channels: 8 independent analog outputs

• Output Accuracy: ±0.05% of full scale

• Resolution: 16-bit

• Update Time: 1 ms per channel

• Input Voltage Range: 10–30 V DC

• Environmental Range: –40 °C to 60 °C, 5–95% non-condensing humidity

• Form Factor: I/O module, coated for environmental robustness

• Hot-Swappable: Supports in-service insertion/removal without system shutdown

• Fail-Safe (FAILOPT): Safe-state configuration per channel—Hold Last or configured Safe Value

• Open-Wire Detection: Channel Soft Failure alarms on wire breaks

• Dimensions: ~5.1 × 26.7 × 17.8 cm; Weight ~ 0.5 kg
