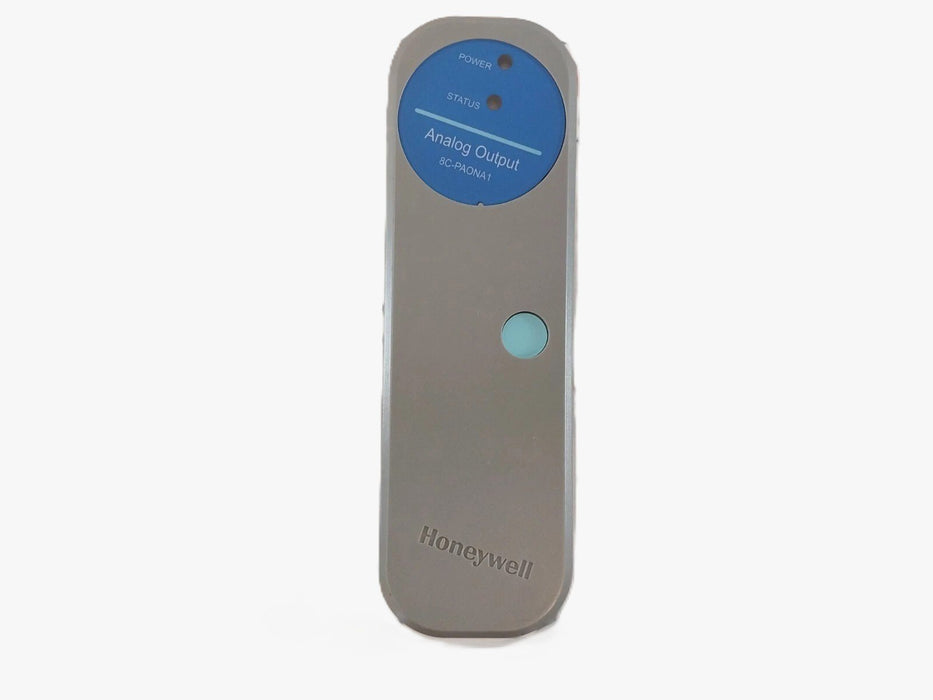

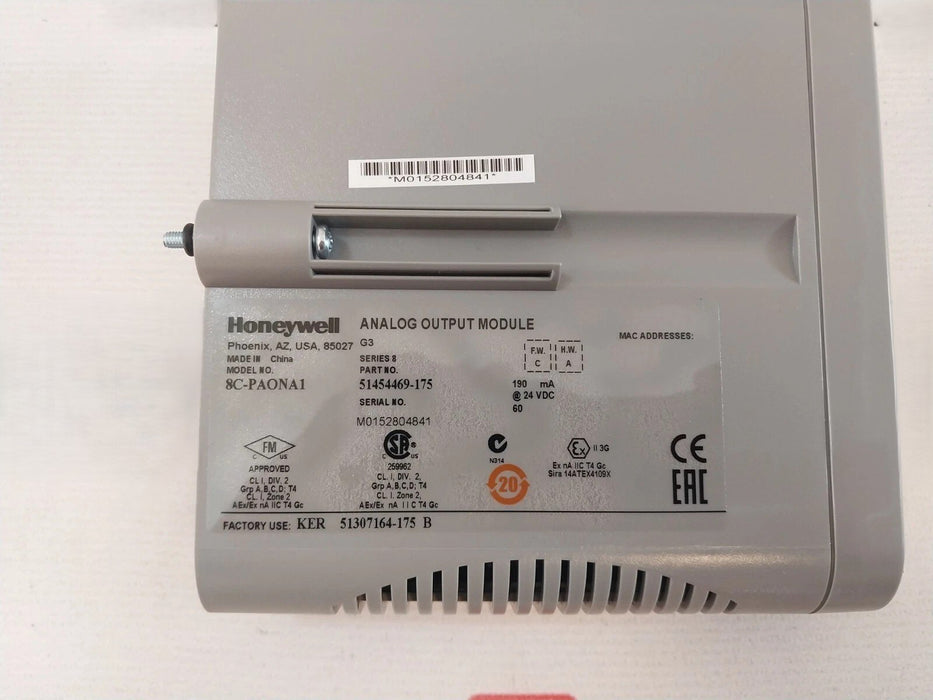

The Honeywell 8C-PAONA1 (51454469-175) is a 16-channel analog output module designed for precise current signal control in industrial automation systems, featuring high accuracy, galvanic isolation, and seamless integration with Honeywell's Series 8 I/O modules.

Model: 8C-PAONA1

Part Number: 51454469-175

Applications:

• Industrial automation systems

• Process control systems

• Distributed Control Systems (DCS)

• Manufacturing Execution Systems (MES)

Key Features:

• Output Channels: 16 analog outputs

• Output Type: 4–20 mA current loop

• Resolution: 16-bit digital-to-analog conversion

• Accuracy: ±0.2% of full scale at 25°C

• Linearity: ±0.05% of full scale nominal

• Output Ripple: <100 mV peak-to-peak at power line frequency, across 250 Ω load

• Temperature Drift: 0.005% of full scale per °C

• Load Resistance: 50–800 Ω

• Voltage Rating: 24 VDC

• Module Current Rating: 190 mA

• Directly Settable Output Current Range: 2.9 mA to 21.1 mA

• Maximum Output Compliance Voltage: 16 V

• Galvanic Isolation: System to field isolation with external user-supplied power

• Mounting: Compatible with 8C-TAOXA1 (non-redundant, 6") and 8C-TAOXB1 (redundant, 12") IOTA modules

• Operating Temperature Range: 0°C to 60°C

• Storage Temperature Range: -40°C to 85°C

• Certifications: Zone 2, Ex nA II C T4 compliance
