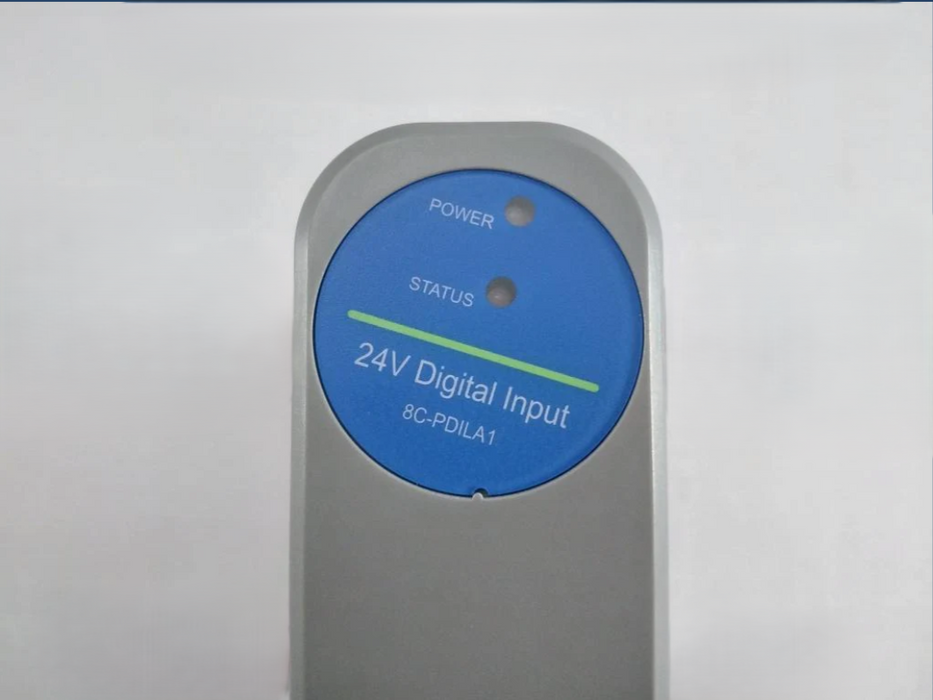

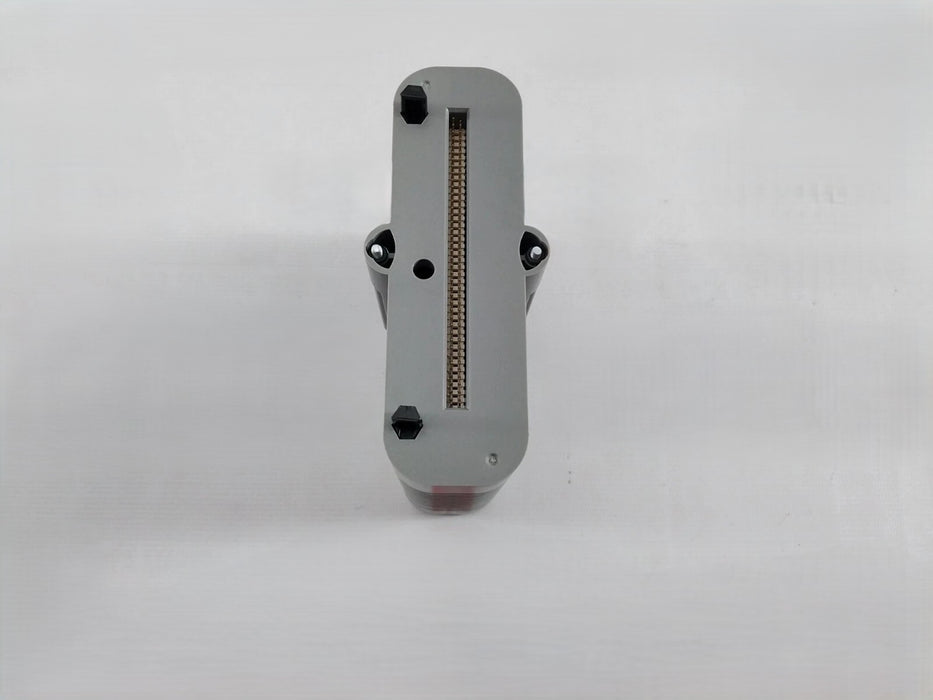

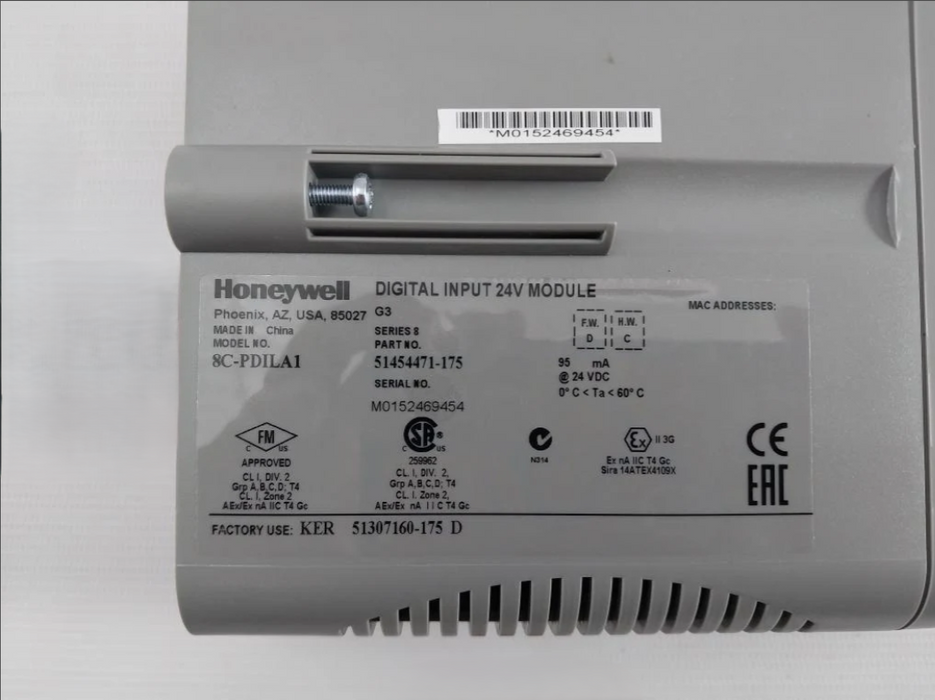

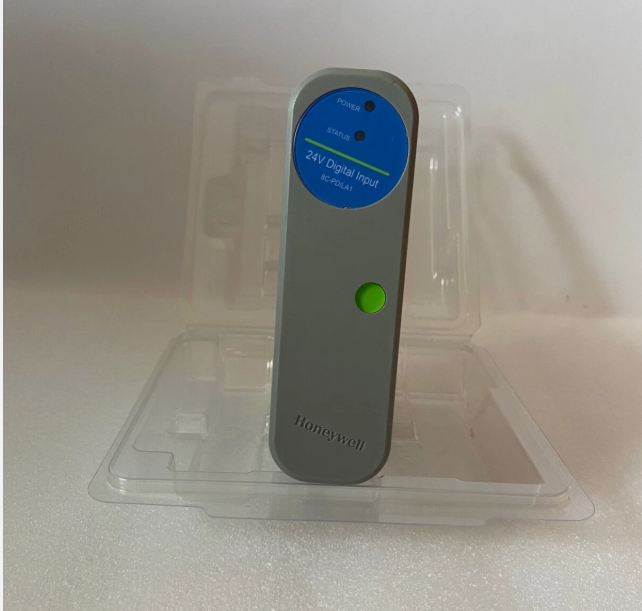

The Honeywell 8C-PDILA1 is a high-density, 32-channel digital input module engineered for the Series 8 C300 distributed control system (DCS). Designed with a coated I/O Termination Assembly (IOTA), this module provides robust 24 VDC signal acquisition, advanced diagnostics, optional redundancy, and hot-swap capability. Trusted in industrial automation for its superior noise isolation and signal accuracy, it seamlessly integrates with Honeywell's Experion platform to deliver reliable process control.

Key Specifications:

• Input Type: 24 VDC discrete inputs (dry contact, PNP/NPN)


• Channels: 32 digital input channels


• Signal Isolation: Optical, system-to-field isolation up to 1000 VAC RMS or ±1500 VDC


• Power Consumption: ~95 mA at 24 VDC


• Hot-Swap Support: Safe module removal and insertion under power


• Environmental Specs:

  • Operating: –20 °C to +55 °C

  • Storage: –40 °C to +70 °C

  • Humidity: 5% to 95% (non-condensing)

  • Shock: 30 g; Vibration: 5 g


• Size & Weight: ~0.3 kg / dimensions approx. 100 × 22.5 × 106 mm
