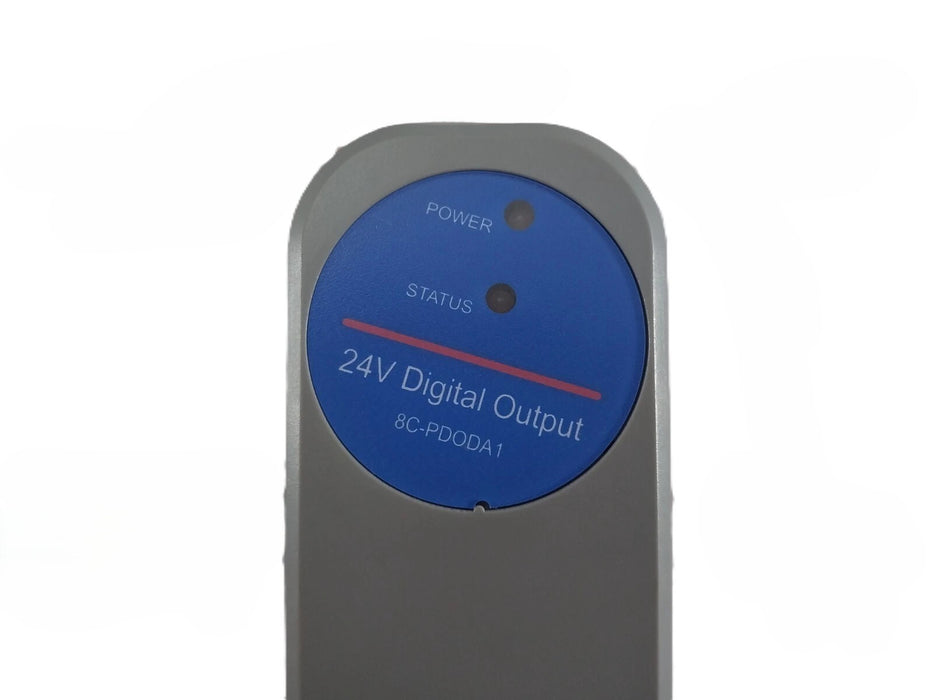

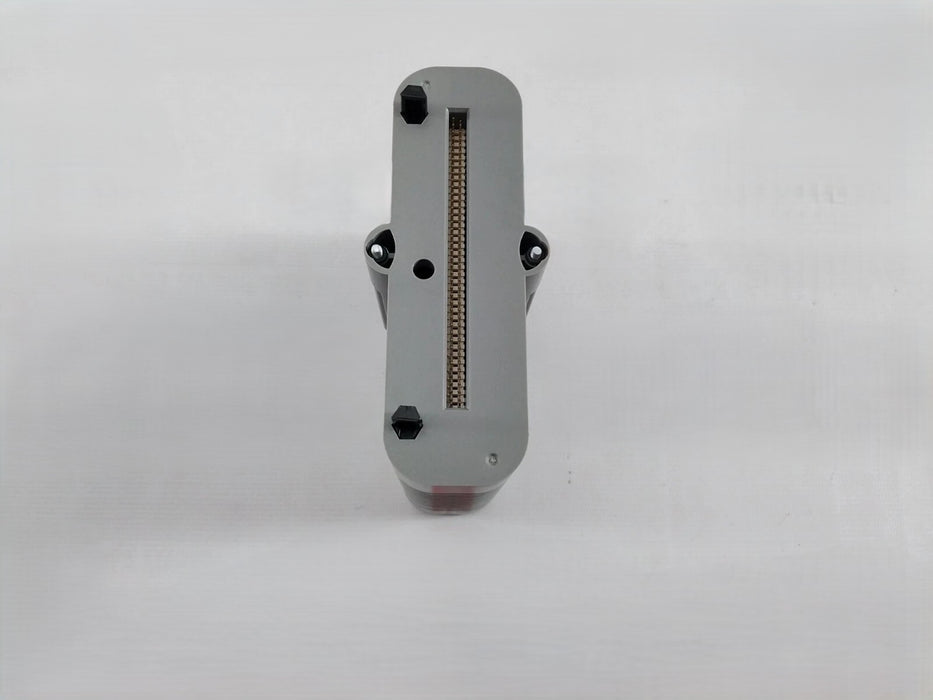

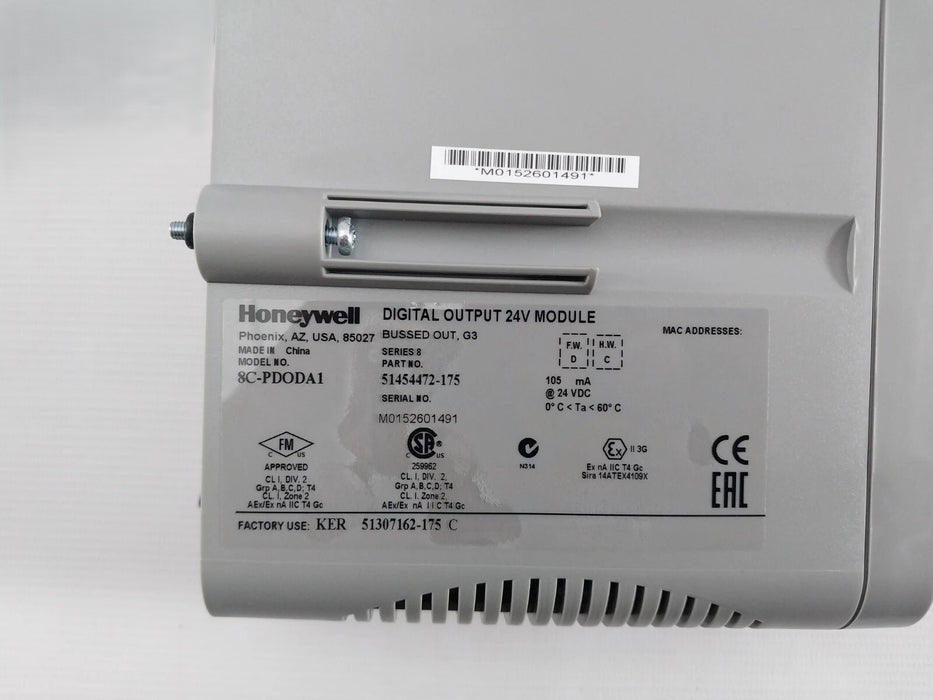

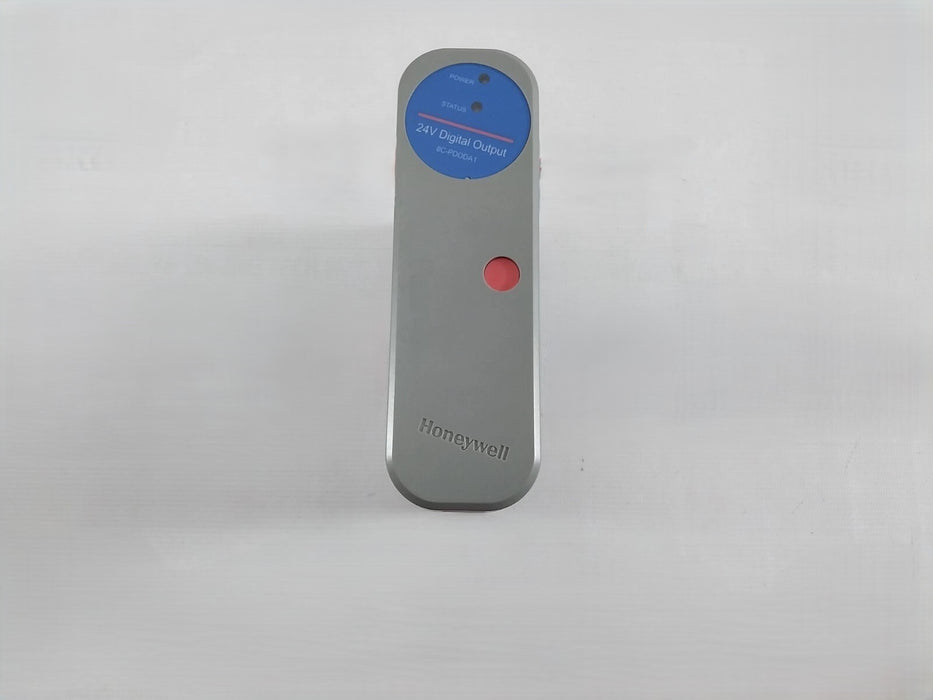

The Honeywell 8C-PDODA1 is a hardy, field-isolated digital output module tailored for the Experion LX Series 8 DCS. Featuring 32 robust output channels, this 24 VDC, bussed-output module delivers reliable performance with galvanic isolation and a conformal coating to withstand harsh industrial environments. Fully hot-swappable and supporting redundant power configurations, it's purpose-built for mission-critical automation applications.

Key Specifications:

• Output Channels: 32 digital outputs (32 channels)

• Output Type: Source, bussed output; 24 VDC rating

• Module Current Rating: 105 mA

• Load Capability:

  • Up to 100 mA per channel

  • 3.2 A maximum per module

• Galvanic Isolation: Supports 1000 VAC RMS or ±1500 VDC between system and field

• Turn-On/Off Time: ≤ 10 ms (max)

• Hot-Swap Support: Can be removed or inserted under power

• Protection Features:

  • FAILOPT safe-state configuration (Hold Last Value or Safe Value on failure)

  • Internal diagnostics and optional redundancy

• Design: Conformal coating for enhanced environmental resistance
