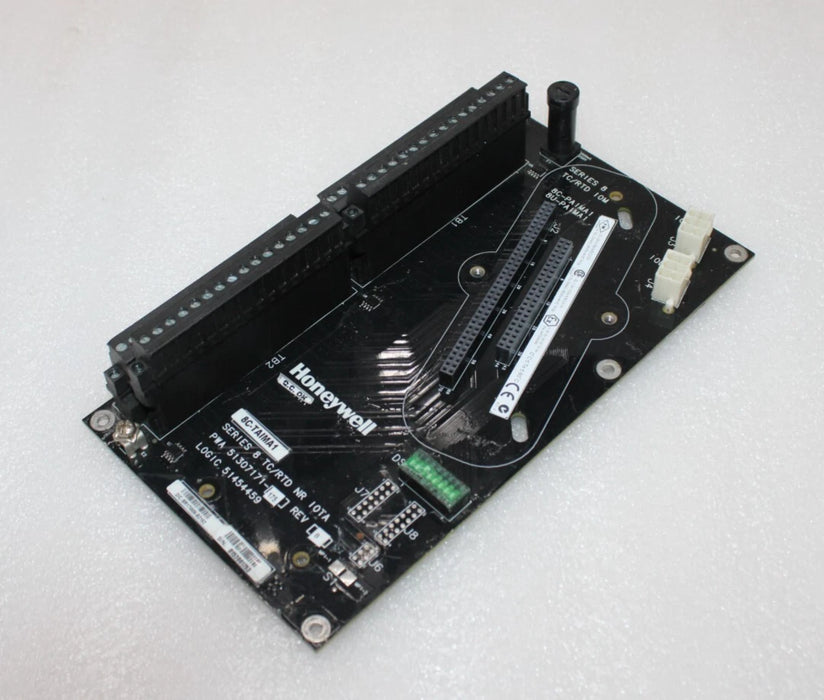

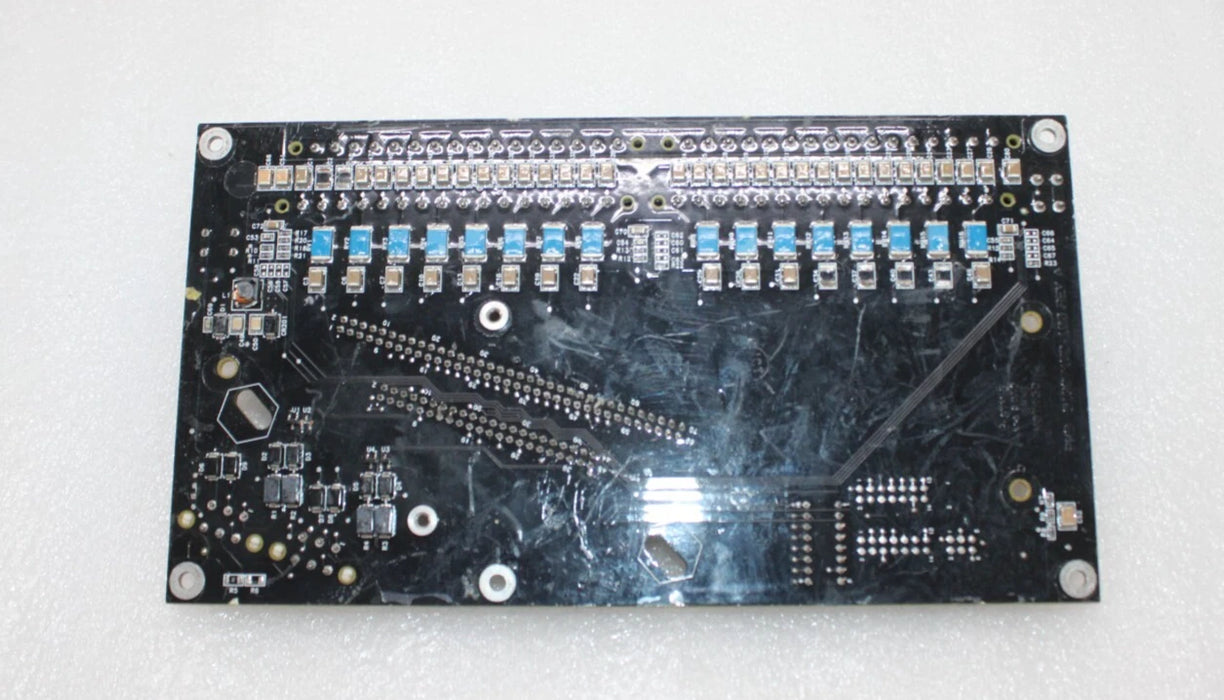

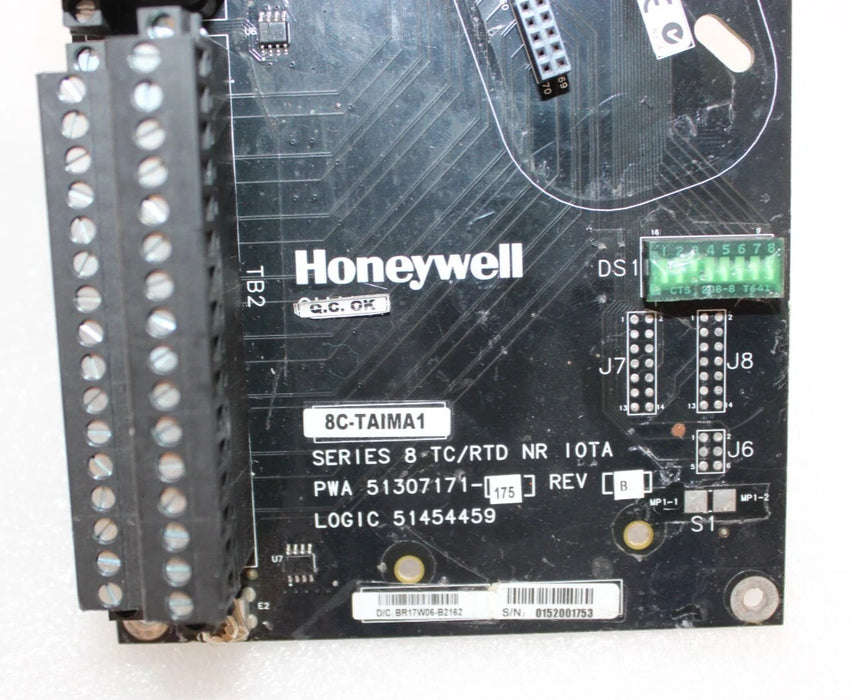

The Honeywell 8C-TAIMA1 is a low-level analog input termination assembly (IOTA) tailored for the Experion Series 8 I/O platform. Featuring support for both thermocouple and RTD inputs, this coated 9-inch module delivers precise temperature measurement across 16 fully isolated channels. Engineered for industrial conditions with conformal coating, it ensures rugged performance and integrity in demanding environments. Ideal for temperature-critical automation applications where accuracy and durability matter.

Key Specifications:

• Module Type: TC/RTD Low-Level Analog Input IOTA (I/O Termination Assembly)


• Channels: 16 fully isolated inputs


• Supported Sensor Types: Thermocouples and RTDs


• IOTA Size: 9″ (228 mm), conforms to coated Series 8 IOTA standard


• Conformal Coating: Yes—designed for industrial protection and longevity


• Input Type: TC and/or RTD


• Input Scan Rate: Up to 16 channels/sec (1 sec fixed)


• Channel Bandwidth: 0 to 4.7 Hz (-3 dB)


• Operating Temperature: 0 °C to 60 °C


• Module Current Rating: 120 mA at 24 VDC


• Dimensions: Approximately 5.1 cm × 26.7 cm × 17.8 cm


• Weight: ~0.5 kg


• Country of Origin: USA
