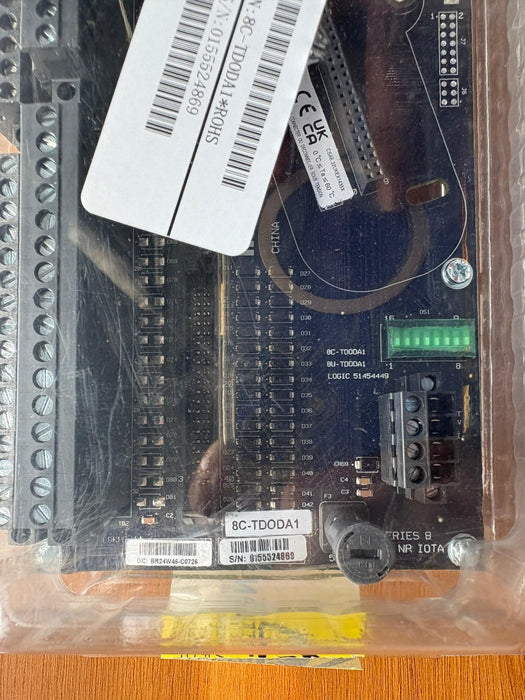

The Honeywell 8C-TDODA1 (51307149-175) is a 32-channel, 24VDC digital output IOTA module designed for non-redundant applications in industrial automation systems, offering high reliability, galvanic isolation, and seamless integration with Honeywell's Series 8 I/O modules.

Model: 8C-TDODA1

Part Number: 51307149-175

Applications:

• Industrial automation systems

• Process control systems

• Distributed Control Systems (DCS)

• Manufacturing Execution Systems (MES)

Key Features:

• Output Channels: 32 digital outputs

• Output Type: Source (sourcing outputs)

• Voltage Rating: 24 VDC

• Module Current Rating: 105 mA

• Load Voltage: 30 VDC maximum

• Load Current: 100 mA per channel (max), 3.2 A per module (max)

• Galvanic Isolation: 1000 VAC RMS for system-to-field isolation (with external user-supplied power)

• On-State Voltage: 24 VDC (typical)

• Off-State Voltage: 0 VDC

• Off-State Leak Current: 5 µA (maximum)

• Turn-On/Turn-Off Time: 10 ms (maximum)

• Safe-State Behavior (FAILOPT): Configurable per channel to hold last value or shed to a safe value

• Module Removal and Insertion: Supported under power

• Operating Temperature Range: 0°C to 60°C

• Storage Temperature Range: -40°C to 85°C

• Dimensions: Approximately 22.1 cm x 12.1 cm x 6.3 cm

• Weight: Approximately 0.35 kg
