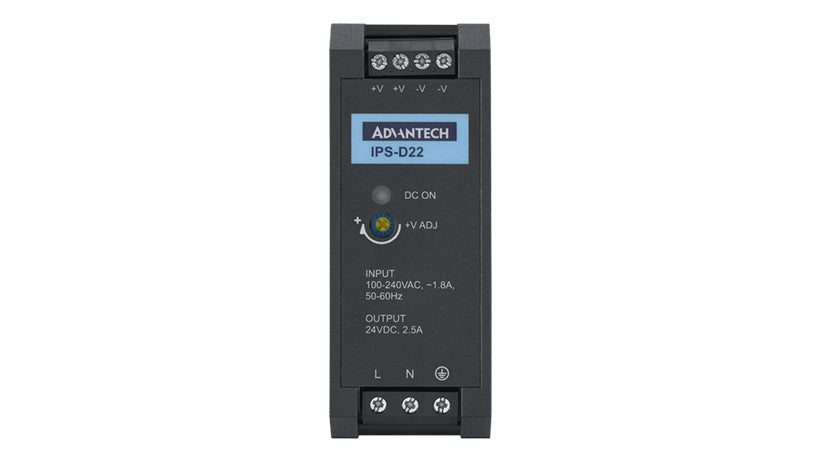

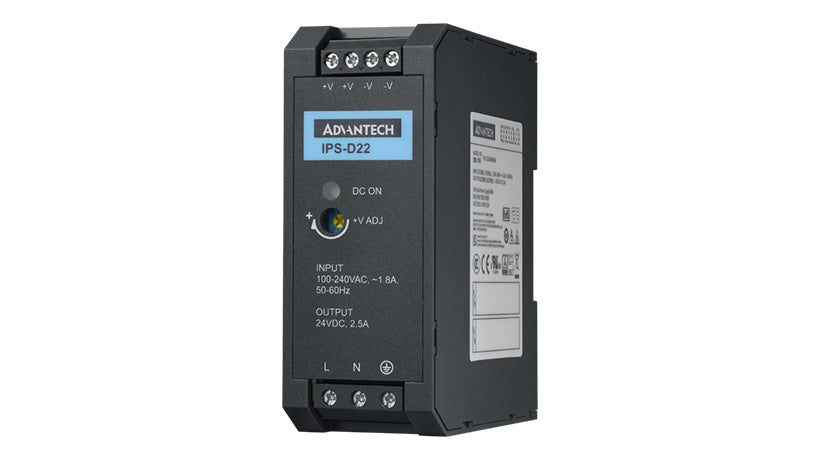

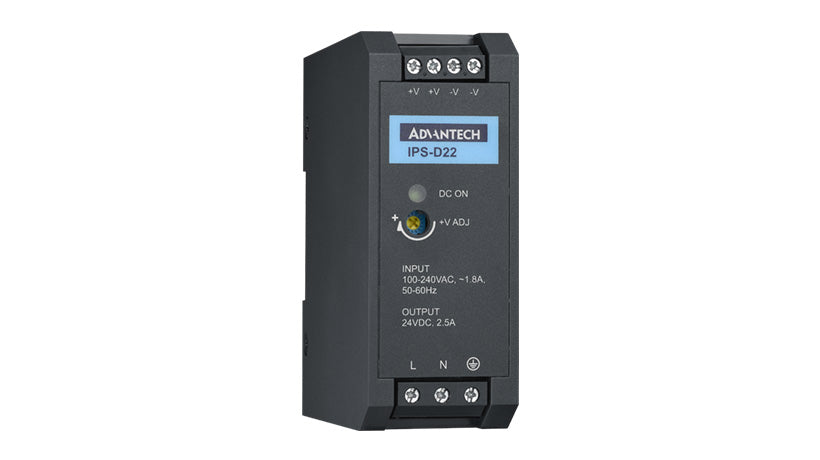

D22 DIN Rail A/D 100-240V 60W 24V

Compact design with 60 watt outputInput range: 85 ~ 264 VAC/100 ~ 375 VDCWide Operating Temperature -20-70 °C with full load up to 50 °CCold start at -30 °CHigh efficiency up to 88% @ 230VACSupports OVP/SCP/OCP/OTPLED indicator for DC OK

Power Supply - Air Cooling: Conventional | Power Supply - Dimensions (W x H x D): 37.9 x 100 x 94.1 mm | Power Supply - Efficiency: 88% @ 230Vac | Power Supply - Input Current (maximum): 115V @ 1.8A; 230V @ 1.0A | Power Supply - Input Frequency: 47 ~ 63 Hz | Power Supply - Input Power: AC to DC | Power Supply - Input Voltage: 85 ~ 264Vac; 100 ~ 375Vdc | Power Supply - LED: Green, DC OK | Power Supply - Main Connector: Screw Terminal | Power Supply - Manufacturer: Advantech | Power Supply - Mounting Rail: TS35 | Power Supply - MTBF (hours @ 25°C): 500K | Power Supply - Operating Temperature: -20 ~ 70°C | Power Supply - Output Power: 60W | Power Supply - Output Rating: 24V @ 2.5A | Power Supply - Power Derating: Full load to 50°C, Derate 2% per °C | Power Supply - Safety: CE / UL / CB / CCC / TUV / UKCA | Power Supply - Storage Humidity: 5 ~ 95% RH | Power Supply - Storage Temperature: -40 ~ 85°C

• Model: IPS-D22A60W24V-A
