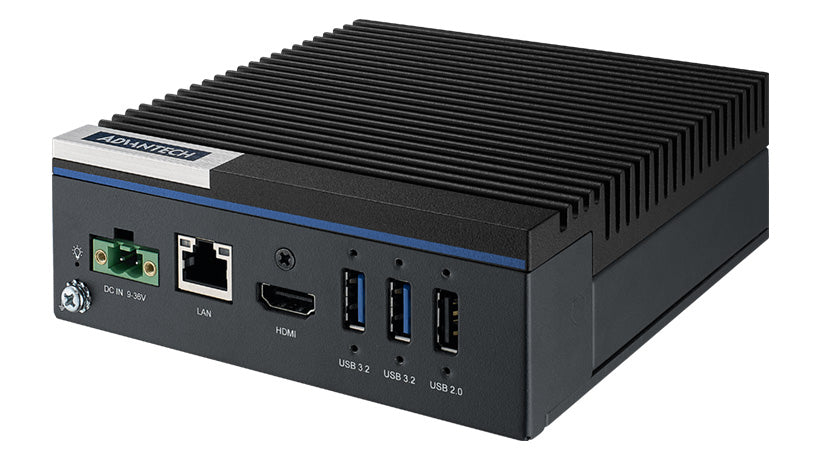

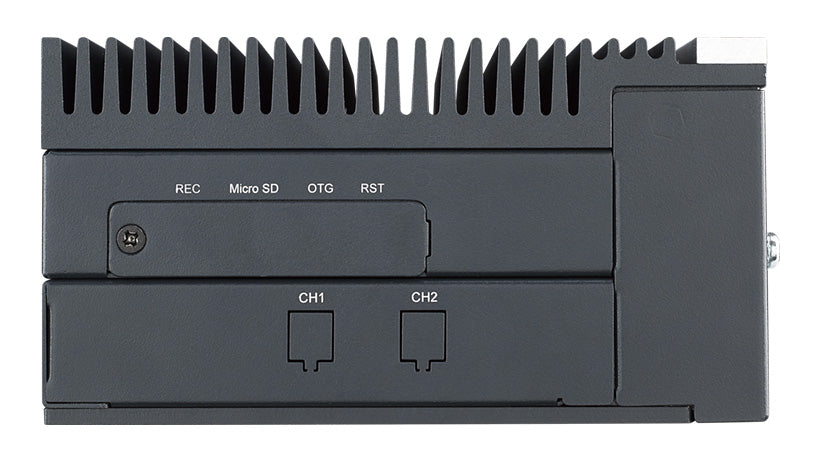

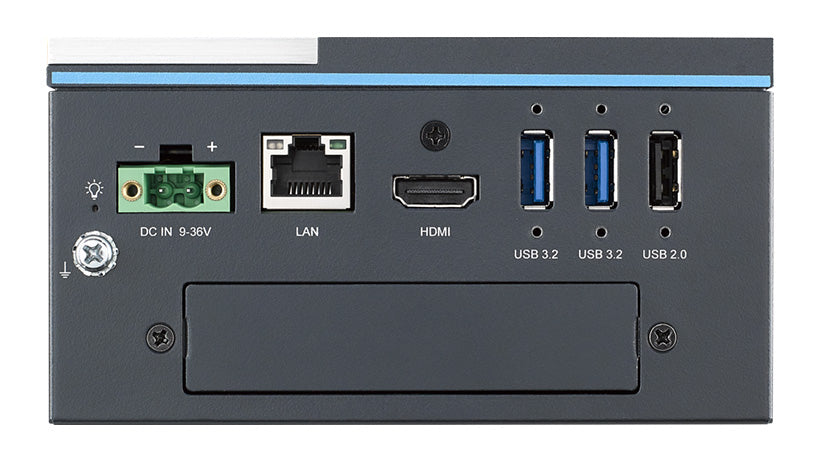

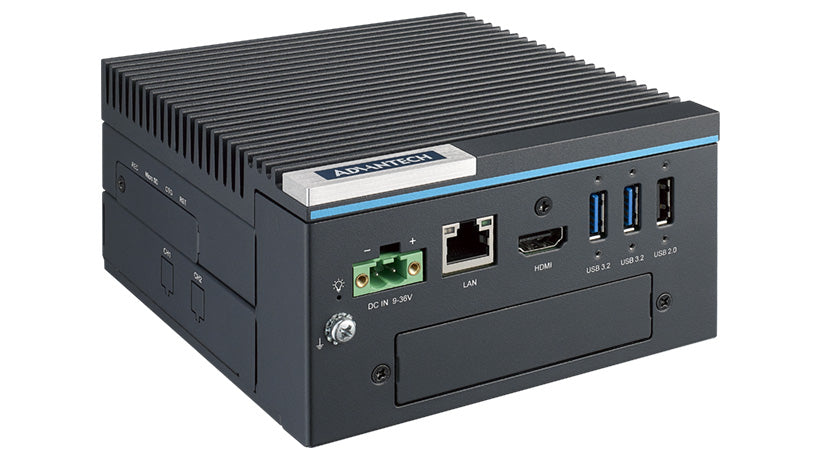

NVIDIA Jetson Orin Nano 8G Lite AI System

Fanless and ultra-compact designEmbedded with NVIDIA® Jetson Orin™ Nano up to 67 TOPSSupports 1 x GbE, 2 x USB 3.?2 Gen 1 (5 Gbit/s)Supports 1 x mPCIe, 1 x M.?2 3052, 1 x M.2 2280Supports Allxon 24/7 remote monitoring and OTA deploymentSupports Super mode with Jetpack 6.?2 and above

BSP - Jetpack: Above 5.1 (Above Linux Ubuntu 20.04) | Certification - EMC, Safety: CB/UL/CE/FCC/BSMI/CCC (No RED certification) | Environment - Operating Humidity: 95% @ 40 °C (non-condensing) | Environment - Operating Temperature: -10 ~ 60 °C with 0.7 m/s air flow | Environment - Shock: 10G / 11ms | Environment - Vibration: 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis | Expansion - M.2: 1 x M.2 3052 (B-Key, Signal: USB) | Expansion - Mini PCIe: 1 x mPCIe (Signal: PCIe + USB 2.0) | Expansion - SIM: 2 x Nano SIM slots | I/O - Display: HDMI (Max. resolution 3840x2160 @ 60Hz) | I/O - Ethernet: 1 x 10/100/1000 Mbps | I/O - OTG USB: 1 x Micro USB | I/O - USB: External: 2 x USB 3.2 Gen 2, 1 x USB 2.0 Internal: 1 x USB 2.0 (by pin header) | Mechanical - Dimension (W x H x D): 130 x 130 x 46 mm (5.1" x 5.1" x 1.8") | Mechanical - Installation: Desktop / Wall mount | Mechanical - Weight: 1.2 kg (2.65 lb) | Power - Input: 9 ~ 36 VDC | Power - Mode: Terminal block, 2-pin, AT | Processor System - CPU: 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | Processor System - GPU: 4G: 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores 8G: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | Processor System - Memory: 4GB: 4GB LPDDR5 8GB: 8GB LPDDR5 | Storage - M.2: 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4) | Storage - SD Card: 1 x Micro SD

• Model: MIC-711-ON3A1
