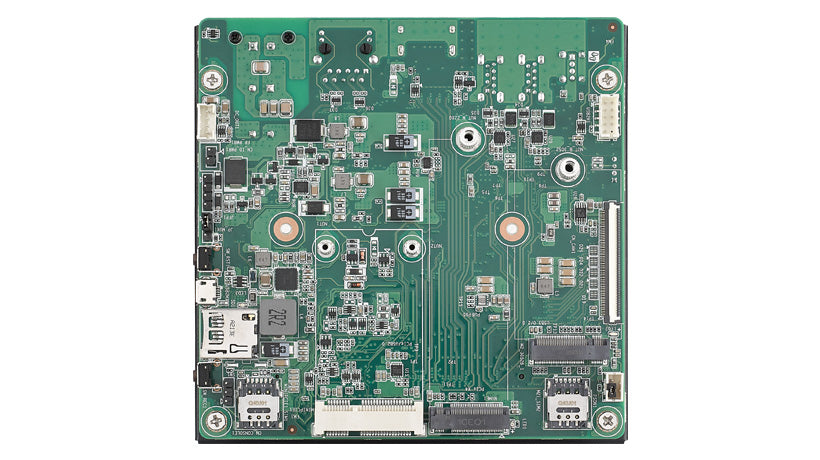

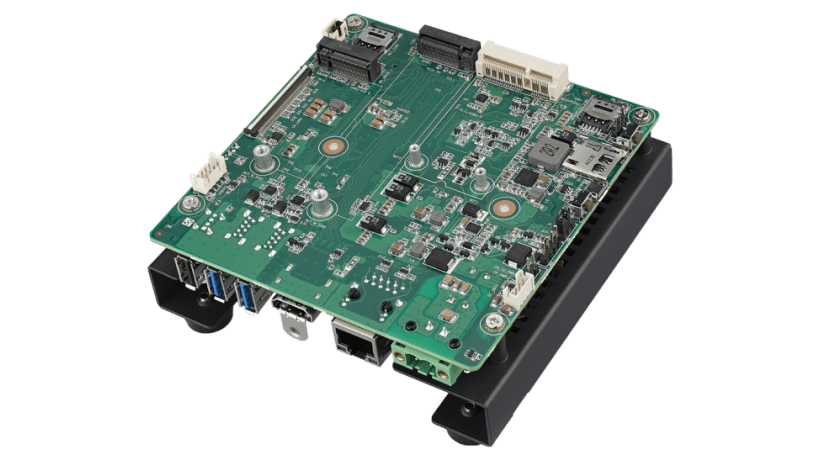

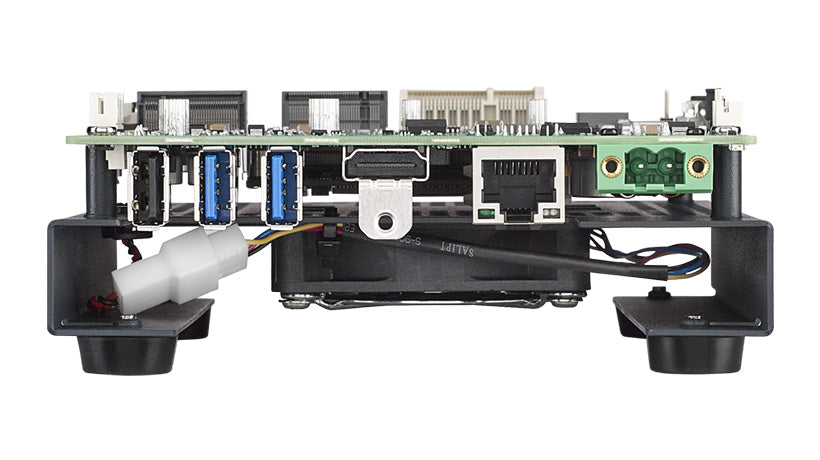

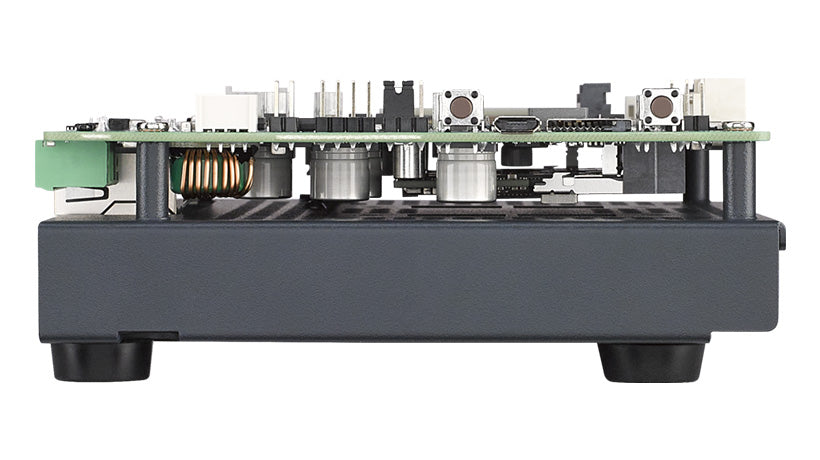

NVIDIA Jetson Orin NX 8G Developer Kit

Open-frame carrier design with thermal solutionEmbedded with NVIDIA® Jetson Orin™ NX up to 157 TOPSSupports 1 x GbE, 2 x USB 3.?2 Gen 1 (5 Gbit/s)Supports 1 x mPCIe, 1 x M.?2 3052, 1 x M.2 2280Supports Allxon 24/7 remote monitoring and OTA deploymentSupports Super mode with Jetpack 6.?2 and above

BSP - Jetpack: Above 5.1 | Expansion - GMSL (Optional): 2-ch GMSL2.0 with FAKRA connectors | Expansion - M.2: 1 x M.2 3052 (B-Key, Signal: USB) | Expansion - Mini PCIe: 1 x mPCIe (Signal: PCIe + USB 2.0) | Expansion - SIM: 2 x Nano SIM slots | Fan - Dimension: 60 x 60 x 13 mm (2.36" x 2.36" x 0.51") | Fan - RPM: 5400 RPM | I/O - Display: HDMI (Max. resolution 3840x2160 @ 60Hz) | I/O - Ethernet: 1 x 10/100/1000 Mbps | I/O - OTG USB: 1 x Micro USB | I/O - USB: External: 2 x USB 3.2 Gen 2, 1 x USB 2.0 Internal: 1 x USB 2.0 (by pin header) | Mechanical - Dimension (W x H x D): 125 x 125 x 51 mm (5.1" x 5.1" x 1.8") | Mechanical - Installation: Desktop | Mechanical - Weight: 0.8 kg (1.76 lb) | Power - Input: 12 V DC | Power - Mode: Terminal block, 2-pin, AT | Processor System - CPU: 16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3) 8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3) | Processor System - GPU: 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | Processor System - Memory: 16GB: 16GB LPDDR5 8GB: 8GB LPDDR5 | Storage - M.2: 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4) | Storage - SD Card: 1 x Micro SD

• Model: MIC-711D-OX3A1
