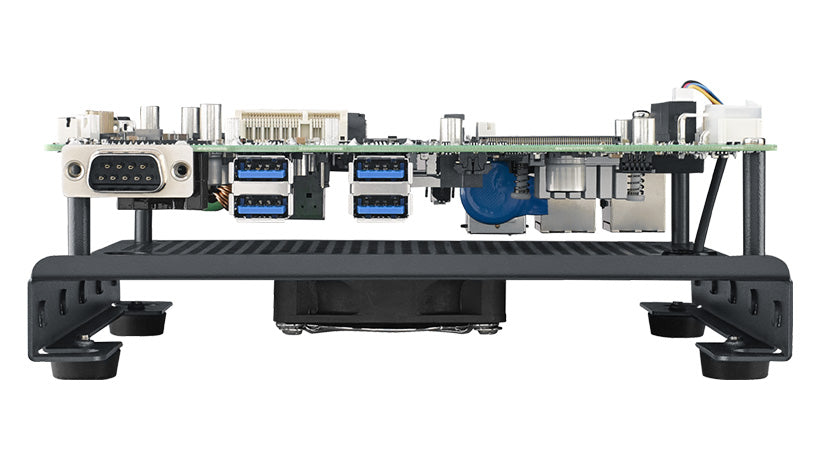

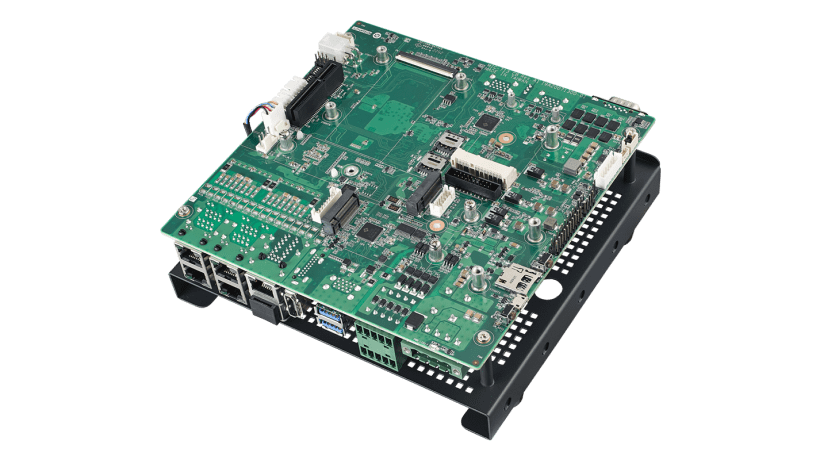

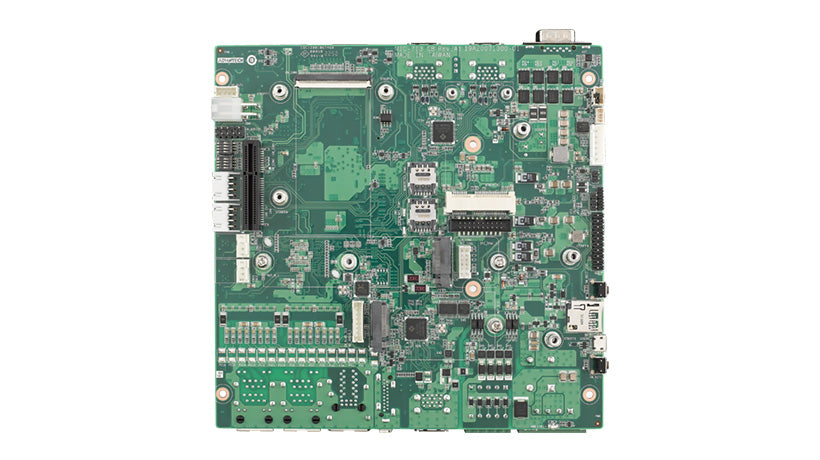

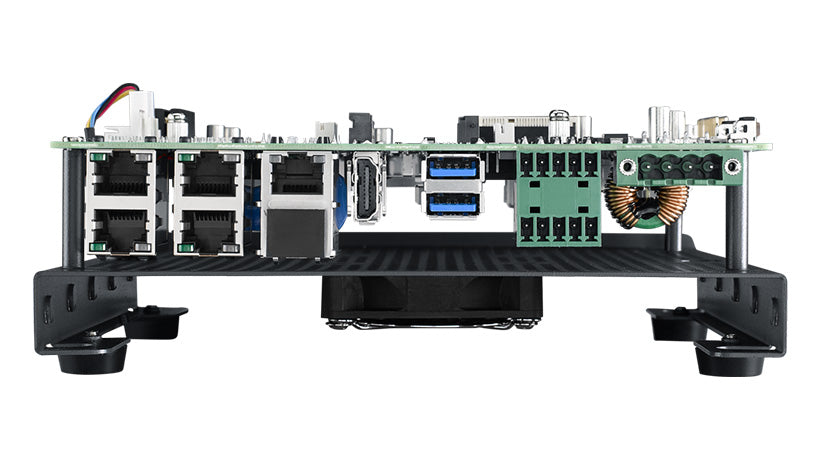

NVIDIA Jetson Orin NX 16GB AI Solution Kit

Open-frame solution kit designEmbedded with NVIDIA® Jetson Orin™ NX up to 100 TOPSSupports 5 x GbE, 6 x USB 3.?2 Gen 2Supports 1 x mPCIe, 1 x M.?2 3052, 1 x M.2 2280Supports Allxon 24/7 remote monitoring and OTA deployment

BSP - Jetpack: Above 5.1 | Certification - EMC, Safety: CE/FCC | Environment - Operating Humidity: 95% @ 40 °C (non-condensing) | Environment - Operating Temperature: -10 ~ 60 °C with 0.7 m/s air flow | Environment - Shock: 10G / 11ms | Environment - Vibration: 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis | Expansion - GMSL (Optional): 2-ch GMSL2.0 with FAKRA connectors | Expansion - M.2: 1 x M.2 3052 (B-Key, Signal: USB) | Expansion - Mini PCIe: 1 x mPCIe (Signal: PCIe + USB 2.0) | Expansion - PCIe: 1 x PCIe x4 slot (PCIe x4 link, Gen 4) | Expansion - SIM: 2 x Nano SIM slots | Expansion - TPM ( Optional): 1 x TPM 2.0 | Fan - Dimension: 60 x 60 x 13 mm (2.36" x 2.36" x 0.51") | Fan - RPM: 5400 RPM | I/O - Digital I/O: 4-ch DI, 4-ch DO | I/O - Display: HDMI (Max. resolution 3840x2160 @ 60Hz) | I/O - Ethernet: 1 x 10/100/1000 Mbps | I/O - OTG USB: 1 x Micro USB | I/O - Serial Port: 2 x RS-232/422/485 (On-board pin header) | I/O - USB: External: 6 x USB 3.2 Gen 2 | Mechanical - Dimension (W x H x D): 181.4 x 180 x 81.71 mm (7.14" x 7.09" x 3.22") | Mechanical - Installation: Desktop | Mechanical - Weight: 0.75 kg (1.65 lb) | Power - Input: 9 ~ 36 VDC | Power - Mode: AT | Processor System - CPU: 16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3) 8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3) | Processor System - GPU: 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | Processor System - Memory: 16GB: 16GB LPDDR5 8GB: 8GB LPDDR5 | Storage - M.2: 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4) | Storage - SD Card: 1 x Micro SD

• Model: MIC-713S-OX4A1
• Contact Us: +91 96993 71392
• Email: sales@elationind.com
• Worldwide Shipping Available
