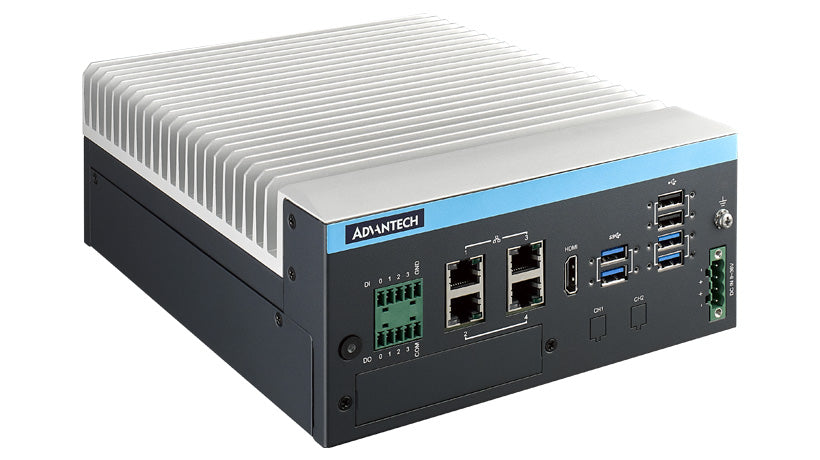

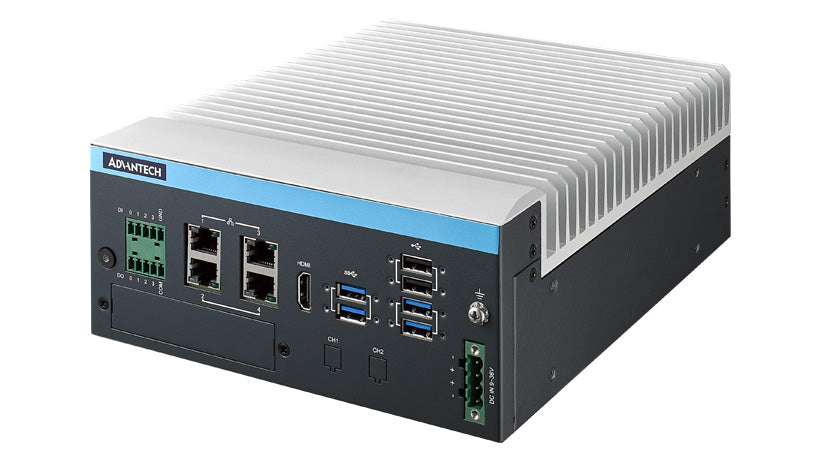

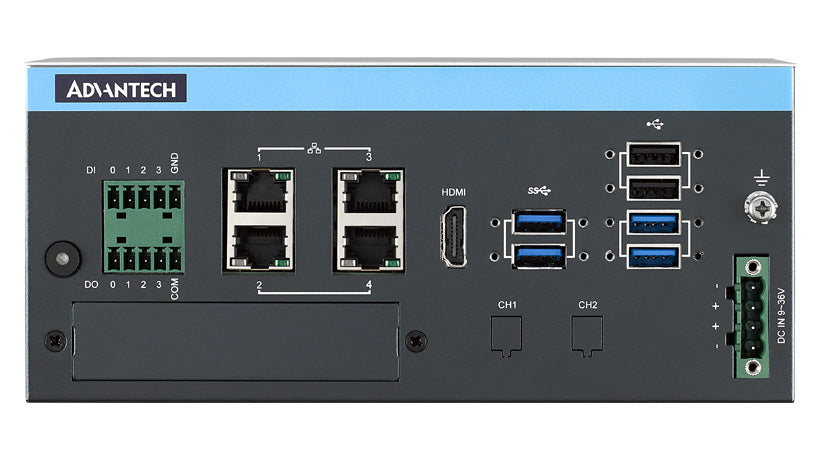

NVIDIA AGX ORIN_64G system

Compact fanless designEmbedded with NVIDIA® Jetson AGX Orin™ up to 275 TOPSSupports 4 x GbE (optional PoE), 4 x USB 3.?2 Gen 2 (10 Gbit/s)Supports 2 x mPCIe, 2 x Nano SIM slotsSupports Allxon 24/7 remote monitoring and OTA deployment; Azure Certified Devices

BSP - Jetpack: Above 5.0 | Certification - EMC, Safety: CB/UL/CE/FCC/BSMI/CCC (No RED certification) | Environment - Operating Humidity: 95% @ 40 °C (non-condensing) | Environment - Operating Temperature: -10 ~ +60 °C with 0.7 m/s airflow (MaxN mode) | Environment - Shock: 10G / 11ms | Environment - Vibration: 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis | Expansion - GMSL: 2-ch GMSL2.0 with FAKRA connectorsV | Expansion - M.2: 1 x M.2 3052 (B-Key, Signal: USB) | Expansion - Mini PCIe: 1 x mPCIe (Signal: PCIe + USB 2.0) | Expansion - SIM: 2 x Nano SIM slots | Expansion - iModule (Optional): 1 x PCIe x8 (MIC-75M10-00A2) | I/O - Digital I/O: 4-ch DI, 4-ch DO | I/O - Display: HDMI (Max. resolution 3840x2160 @ 60Hz) | I/O - Ethernet: 4 x 10/100/1000 Mbps (Optional PoE support, IEEE 802.3af/at) | I/O - OTG USB: 1 x Micro USB | I/O - Power Switch: 1 x Power ON/OFF Button | I/O - Serial Port: 2 x RS-232/422/485 (On-board pin header) | I/O - USB: External: 2 x USB 3.2 Gen 2, 1 x USB 2.0 Internal: 1 x USB 2.0 (by pin header) | Mechanical - Dimension (W x H x D): Core Module: 192 x 230 x 87 mm (7.55" x 9.05" x 3.43") Plus MIC-75M10: 192 x 230 x 111 mm (7.55" x 9.05" x 4.37") | Mechanical - Installation: Desktop / Wall mount | Mechanical - Weight: 4.5 kg (9.9 lb) | Power - Input: 9 ~ 36 VDC, 16-4A | Power - Mode: AT/ATX (Default AT) | Processor System - Al Performance Reference: Up to 275 TOPs | Processor System - CPU: 12-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU, 3MB L2 + 6MB L3 | Processor System - GPU: 2048-core NVIDIA Ampere GPU with 64 Tensor Cores] Maximum Operating Frequency: 1.3GH | Processor System - Memory: 64GB 256-bit LPDDR5 DRAM | Processor System - NVIDIA Jetson Series: AGX Orin 64G | Storage - M.2: 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4) | Storage - SD Card: 1 x Micro SD

• Model: MIC-733-AO6A1
