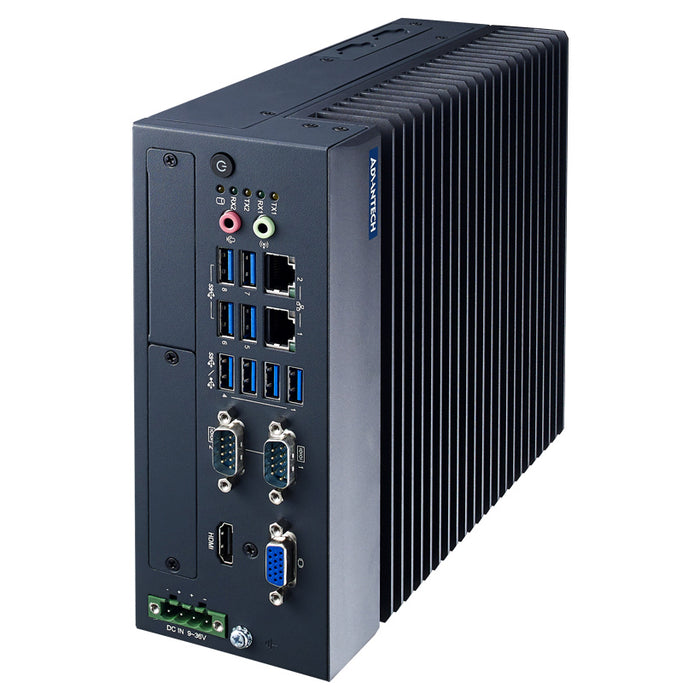

H420E, Modular IPC

Intel® 10th Gen Xeon®/Core™ i CPU socket-type (LGA1200) with Intel® W480E/H420E chipsetWide operating temperature (-10 ~ 60 °C), 9 ~ 36 VDC input power range2 x GigaLAN, 2 x USB 3.?2 (Gen2) and 6 x USB 3.2 (Gen1)2 x RS-232/422/485 and 4 x RS232 serial ports (Optional)1 x 2.?5" HDD/SSD, and 1 x mSATASupports Advantech i-Modules, FlexIO and iDoor technology, flexible configure additional HDMI, DVI, Comport, DIO, Remote switch IOVGA and HDMI™ output (The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.)Microsoft Azure PnP, AWS IoT Greengrass, Ubuntu CertifiedRED Compliance

Certification - EMC, Safety: CE/FCC Class A, CCC, BSMI, UL/CB, RED Compliance | Environment - Humidity: 95% @ 40° C (non-condensing) | Environment - Non-Operational Temperature: -40 ~ 85° C (-40 ~ 185° F) | Environment - Operating Shock: With SSD: 20 G, IEC-68-2-27, half-sine wave, 11 ms duration | Environment - Operating Temperature: -10~50 °C with 0.7 m/s air flow | Ethernet - Connector: 2 x RJ45 | Ethernet - Controller: LAN1: Intel I219V, LAN2: Intel I210IT | Ethernet - Interface: 2 x RJ-45 | Ethernet - Speed: 10/100/1000 Mbps | Expansion - Mini PCIe: 1 | Expansion - PCI: Supported via i-Module | Expansion - PCIe x1: Supported via i-Module | Expansion - PCIe x16: Supported via i-Module | Expansion - PCIe x4: Supported via i-Module | Expansion - PCIe x8: Supported via i-Module | Expansion Interface - Mini PCIe: 1 | Expansion Slot - Mini-PCIE: 1 x miniPCIe/mSATA | Front I/O Interface - Audio: 2 (Mic-in, Line-out) | Front I/O Interface - Audio Jack: 1xLine-out; 1x Mic-in | Front I/O Interface - COM: 2 x RS-232/422/485 (Supports auto flow control), 4 x RS-232 (Optional) | Front I/O Interface - Display: 1 x VGA, 1 x HDMI | Front I/O Interface - LAN: 2 | Front I/O Interface - Serial Port: 2xRS-232/422/485; 2xRS-232 | Front I/O Interface - USB: 4 x USB 3.2 (Gen1), 4 x USB 2.0 | Graphics - Controller: Intel® HD Graphics | I/O - COM Port: 2 (2 x RS232/422/485) | I/O - USB2.0: 4 | I/O - USB3.0: 4 | Mechanical - Dimension (W x H x D): 77 x 192 x 230 mm | Mechanical - Dimensions (W x H x D): 78 x 192 x 230 mm | Mechanical - Mounting: Desktop, Wall mount | Mechanical - Weight: 2.8 kg (6.17 lbs) | Mechanical - Weight (Net): 2.8 kg (6.17 lbs) | Memory - Max. Capacity: 64 GB | Memory - Socket: 2 x 260-pin DDR4 SO-DIMM | Memory - Technology: Dual-Channel DDR4 2666/2933 MHz | Miscellaneous - Control: Power Switch | Physical Characteristics - Dimensions (W x H x D): 78 x 192 x 230 mm | Physical Characteristics - Weight: 2.8 kg (6.17 lbs) | Power - Power Input: 9-36VDC | Power - Power Type: ATX/AT | Power Supply - Input Range: 9 ~ 36 VDC | Power Supply - Power Type: ATX, AT | Processor System - BIOS: AMI 128 Mbit SPI Flash | Processor System - Chipset: Intel® H420E | Processor System - Core Number: Up to 10 | Processor System - CPU: 10th Gen Intel® Xeon®/Core™ processors | Processor System - CPU TDP: Up to 65 W | Processor System - Frequency: Based on Intel CPU spec | Processor System - L3 Cache: Up to 20 MB | Processor System - Socket: 1 x LGA1200 | Storage - HDD: 1 x 2.5" internal HDD/SSD bay | Storage - M.2: - | Storage - mSATA: 1 | Storage - RAID: - | WatchDog Timer - Interval: Programmable 1 ~ 255 sec/min | WatchDog Timer - Output: System Reset

• Model: MIC-770H-20A1
