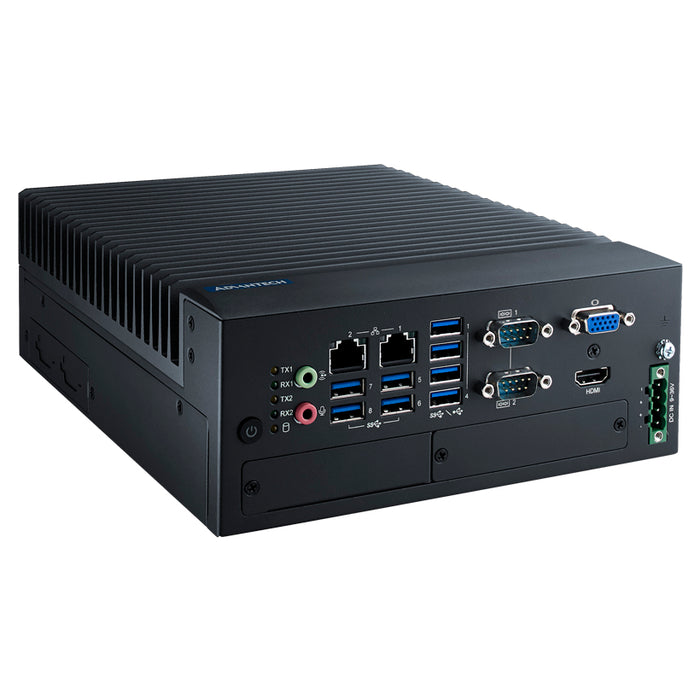

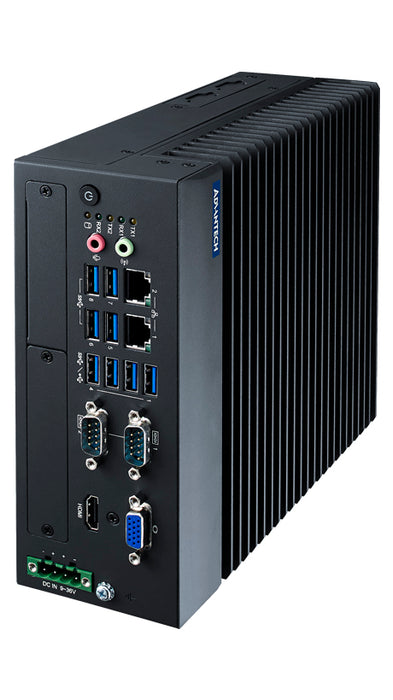

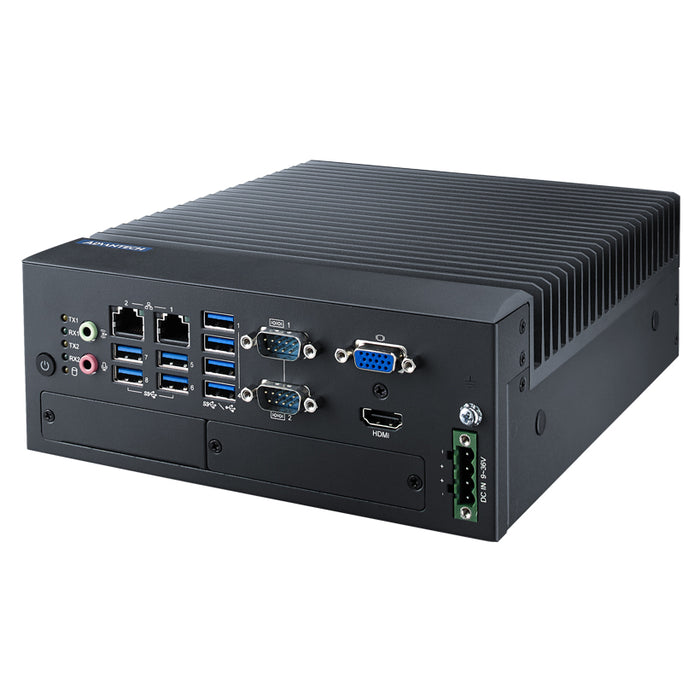

Modular IPC, 12th/13th/14th Gen Intel® Core™ i CPU, Intel® R680E Chipset

Intel® 12th/13th/14th Gen Core™ i CPU socket-type (LGA1700) with Intel® R680E/ H610E chipsetWide operating temperature (-20 ~ 60 °C)2 x GigaLAN, 2 x USB 3.?2 (Gen2) and 6 x USB 3.2 (Gen1); 2 x RS-232/422/485 and 4 x RS232 serial ports (Optional)1 x 2.?5" HDD/SSD, 1 x mSATA, and 1 x NVMe M.2; 9 ~ 36 VDC input power rangeIP40 dust proof for deployment in harsh environmentSupports FlexIO and iDoor technology, flexible configure additional DP, DVI, COM port, DIO, Remote switch IOSupports Advantech i-Modules; Supports Advantech SUSIAPI and embedded software APIsSupports Intel® vPro™/AMT and TPM technologies; Supports Advantech iBMC 1.?2 remote out-of-band power management solution on WISE-DeviceOnSupport Windows 11 IoT Enterprise LTSC

Certification - EMC: CE/FCC Class A, CCC, BSMI | Certification - EMC, Safety: CE/FCC Class A, CCC, BSMI, UL/CB | Certification - Safety Certifications: UL/CB | Display - Display Interface: VGA: Up to 1920 x 1200 | Environment - EMC: CE/FCC Class A, CCC, BSMI | Environment - Humidity: 95% @ 40° C (non-condensing) | Environment - Non-Operating Vibration: 2 G | Environment - Non-Operational Temperature: -40 ~ 85° C (-40 ~ 185° F) | Environment - Operating Shock: With SSD: 20 G, IEC-68-2-27, half-sine wave, 11 ms duration | Environment - Operating Temperature: -20~50 °C with 0.7 m/s air flow | Environment - Operating-Temperature: -20 ~ 50 °C with 0.7 m/s air flow | Ethernet - Connector: 2 x RJ45 | Ethernet - Controller: LAN1: Intel® I219-LM, LAN2: Intel® I210-IT | Ethernet - Speed: 10/100/1000 Mbps | Expansion - Mini PCIe: 2 | Expansion - PCI: Supported via i-Module | Expansion - PCIe x1: Supported via i-Module | Expansion - PCIe x16: Supported via i-Module | Expansion - PCIe x4: Supported via i-Module | Expansion - PCIe x8: Supported via i-Module | Expansion Slot - Mini-PCIE: 1 x miniPCIe/mSATA | Front I/O Interface - Audio: 2 (Mic-in, Line-out) | Front I/O Interface - COM: 2 x RS-232/422/485 (Supports auto flow control), 4 x RS-232 (Optional) | Front I/O Interface - Display: 1 x VGA, 1 x HDMI | Front I/O Interface - LAN: 2 | Front I/O Interface - USB: 2 x USB 3.2 (Gen2), 6 x USB 3.2 (Gen1), 1 x USB 2.0 (Internal) | Graphics - Controller: Intel® UHD Graphics | I/O - Audio: 2 (1 x Line-0ut, 1 x Mic-in) | I/O - Button: 1 x Power on/off switch | I/O - Serial Port: 2 x DB9, RS232/422/485 with automatic flow control | I/O - VGA: 1 | Mechanical - Dimension (W x H x D): 77 x 192 x 230 mm | Mechanical - Dimensions (W x H x D): 77 x 192 x 230 mm | Mechanical - Install: Desktop/Wall-mounting | Mechanical - Mounting: Desktop, Wall mount | Mechanical - Weight (Net): 2.8 kg (6.17 lb) | Memory - ECC Support: Yes | Memory - Max. Capacity: 64 GB | Memory - NVMe M.2: M.2 2280, M-Key | Memory - Socket: 2 x 262-pin DDR5 SO-DIMM | Memory - Technology: Dual-channel DDR5 4800 MHz | Physical Characteristics - Weight: 2.8 kg (6.17 lbs) | Power - Interface: 4-pin phoenix | Power Requirement - Power Type: AT/ATX | Power Supply - Input Range: 9 ~ 36 VDC | Power Supply - Power Type: ATX, AT | Processor System - BIOS: AMI 256 / 128 Mbit SPI Flash | Processor System - Chipset: Intel® R680E | Processor System - Core Number: Up to 24 | Processor System - CPU: Intel® Core™ processors (14th/13th/12th Gen) | Processor System - CPU TDP: Up to 65 W | Processor System - L3 Cache: Up to 30 MB | Processor System - Socket: 1 x LGA1700 | Storage - HDD: 1 x 2.5" internal HDD/SSD bay | Storage - M.2: 1 x NVMe M.2 2280 (PCIe Gen4.0 x4), M-Key | Storage - mSATA: 1 | Storage - RAID: 0/1/5/10 | Storage - SATA: SATA-III,Onboard SATA-III connector | WatchDog Timer - Interval: Programmable 1 ~ 255 sec/min | WatchDog Timer - Output: System Reset

• Model: MIC-770V3W-00A1
