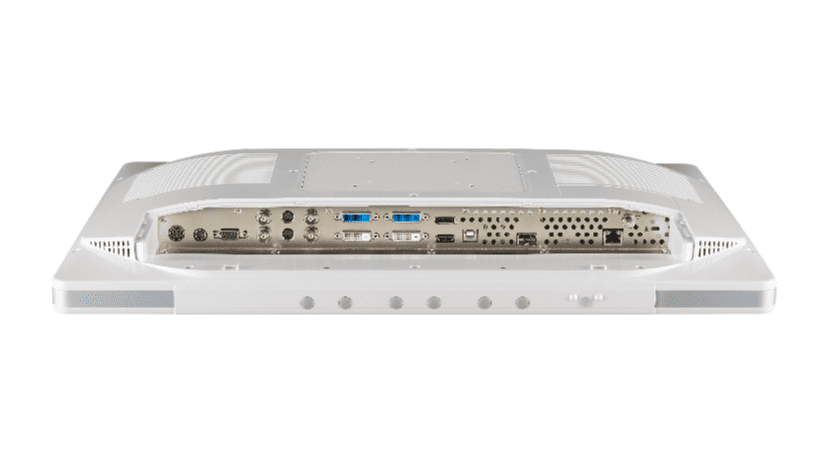

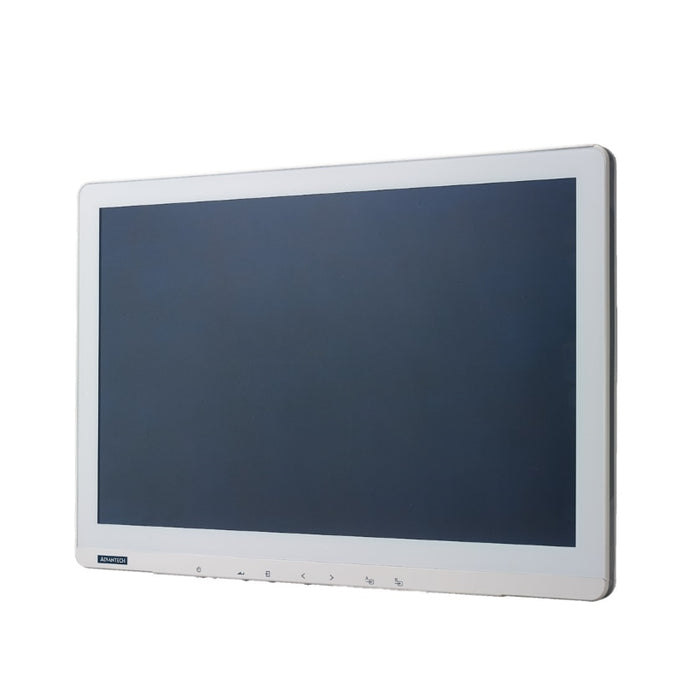

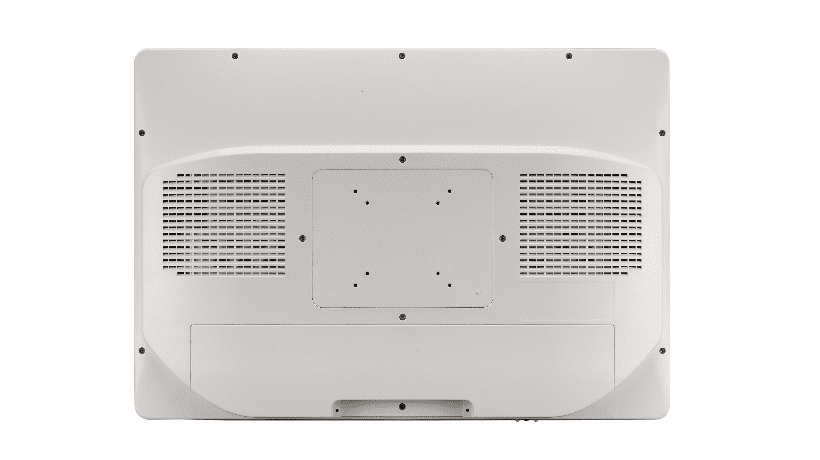

24"/ FHD/ 350nits/ Non-TS

Operational 0~40oC / Storage -20~60oCOptional upgrade to an IP-based monitor with AVASVideo enhancement features include: •14-bit LUT processing •DICOM Part 14 GSDF compliant •DICOM, clear, blue modes supportedMulti-standard video support (NTSC, PAL, SECAM)SDI support up to 1920 x 1080 @ 60HzHDMI 2.?0, DP 1.2, DVI, RGB support up to 1920 x 1200 @ 60 HzFHD resolution (1920 x 1200)High brightness display with a high contrast ratio24” true-flat monitor with AR filter

Accessories - -: Power Adapter | Certifications - Safety: CE MDR (EN60601-1; EN60601-1-2), RoHS ll | Environment - Humidity: Operation:Ta = 40 °C, 90% RH non-condensed / Storage:5 ~ 90% | Environment - Pressure: Operational: 500 hPa to 1013 hPa / Storage: 500 hPa to 1013 hPa | Environment - Temperature: Operational: 0~40° C / Storage: -20~60° C | Input - DC Power Input DC Jack x 1: DC 24 V, 4.16 A | Input - DP 1.2 Input DP Jack x 1: DisplayPort 1.2, 1920 x 1200 @ 60 Hz max. | Input - DVI Input DVI Jack x 2 (Type D): Digital RGB: TMDS, 1920 x 1200 @ 60 Hz max. | Input - HDMI 2.0 Input HDMI Jack x 1 (Type A): Digital RGB: TMDS, 1920 x 1200 @ 60 Hz max. | Input - RS-232C D-Sub Jack x 1: Service Port | Input - RS-232C Mini DIN Jack x 1 (8-pin): Service Port | Input - S-Video Input Mini DIN Jack x 1 (4-pin): Y: 1 Vp-p (75 ?), C: 0.286 Vp-p (75 ?) [NTSC] / Y: 1 Vp-p (75 ?), C: 0.300 Vp-p (75 ?) [PAL / SECAM] | Input - SDI1 Input BNC Jack x 1: Serial Input Common Mode: 2.2 Vp-p (75 ?); 1920 x 1080 @ 60 Hz max. | Input - USB Up USB-B Jack x 1: For Optional Touchscreen | Input - Video Input BNC Jack x 1: 1 Vp-p (75 ?) [NTSC / PAL / SECAM] | LCD - Aspect Ratio: 16:10 | LCD - Backlight: LED | LCD - Color Depth: 8-bit 16.7M Colors | LCD - Contrast Ratio (Typ.): 1000 : 1 | LCD - Display Mode: AH-IPS | LCD - Native Luminance (Typ.): 350 cd/m2 | LCD - Pixel Pitch: 0.270 x 0.270 mm | LCD - Resolution: 1920 x 1200 | LCD - Response Time: 14ms (G to G) | LCD - Screen Size: 24.07” (518.4 x 324.0 mm) | LCD - Touchscreen: Anti-Reflection, non touchscreen | LCD - Viewing Angle: 178°/ 178° | Optional Input - Audio Input: Audio Jack x 1 | Optional Input - AVAS NDcoder: - | Optional Input - AVAS SFP+ Module x 1: For Video Over IP Option, Please Contact Sales | Optional Input - RGB Input: D-sub x 1 | Optional Input - SDI2 Input / BNC Jack x 1: By request only | Optional Output - Audio Output: Speaker 2x3W | Optional Output - SDI2 Output / BNC Jack x 1: by request only | Output - DC Power Output DC Jack x 1: DC 5 V or DC 12 V | Output - DVI Jack x 2 (Type D): Digital RGB: TMDS, 1920 x 1200 @ 60 Hz max. | Output - S-Video Output Mini DIN Jack x 1 (4-pin): Y: 1 Vp-p (75 ?), C: 0.286 Vp-p (75 ?) [NTSC] / Y: 1 Vp-p (75 ?), C: 0.300 Vp-p (75 ?) [PAL / SECAM] | Output - SD/1 Output BNC Jack x 1: Serial Input Common Mode: 2.2 Vp-p(75?); 1920 x 1080 @ 60 Hz max. | Output - SDI1 Output BNC Jack x 1: Serial Input Common Mode: 2.2 Vp-p (75 ?); 1920 x 1080 @ 60 Hz max. | Output - Video Output BNC Jack x 1: 1 Vp-p (75 ?) [NTSC / PAL / SECAM] | Physical Characteristics - Dimensions (W x D x H): 578.13 x 68 x 402.78mm | Physical Characteristics - IP Ratings: Front IP65 / Top IPX1 | Physical Characteristics - VESA Mount: 100 x 100; 75 x 75 mm | Physical Characteristics - Weight: 7.2 kg | Power - Consumption: 26.7 W | Power - Rating: DC 24 V, 4.16 A max. | Warranty - -: 3 years

• Model: PAX-324-C2B-NAS
