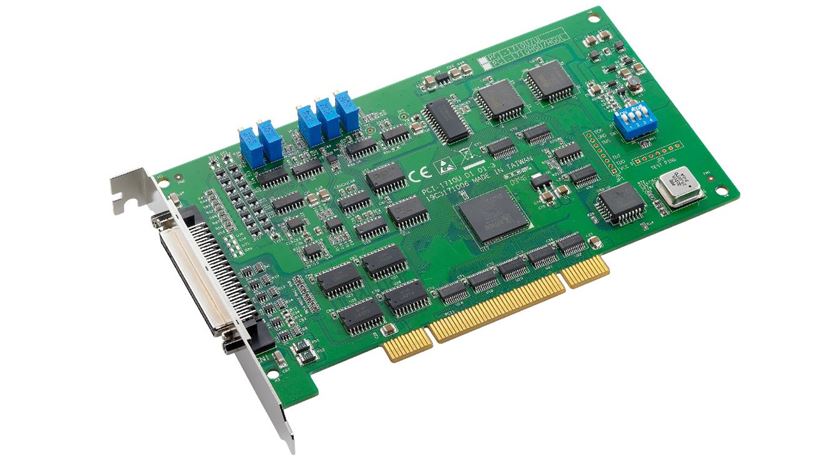

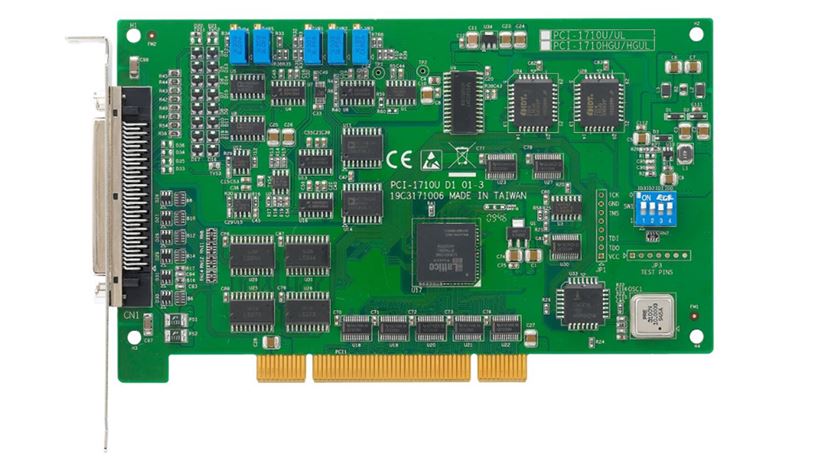

100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card

16-ch single-ended or 8-ch differential or a combination of analog input12-bit A/D converter, with up to 100 kHz sampling rateOnboard programmable counterTwo 12-bit analog output channels16-ch digital input and 16-ch digital outputAutomatic channel/gain scanningOnboard FIFO memory (4,096 samples)Programmable gainBoardID™ switch

Analog Input - Channels: 16 | Analog Input - Input Range: ±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V | Analog Input - Resolution(Bits): 12-bit | Analog Input - Sampling Rates(S/s): 100 KS/s (sum) | Analog Output - Channels: 2 | Analog Output - Output Ranges: 0~5 V, 0~10 V | Analog Output - Resolution: 12-bit | Analog Output - Update Rate(S/s): Static update | Counter/Encoder Input - Channels: 2 | Counter/Encoder Input - Counting Range: 16-bit | Digital Input - Channels: 16 (TTL) | Digital Output - Channels: 16 (TTL) | General - Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt

• Model: PCI-1710U-DE
