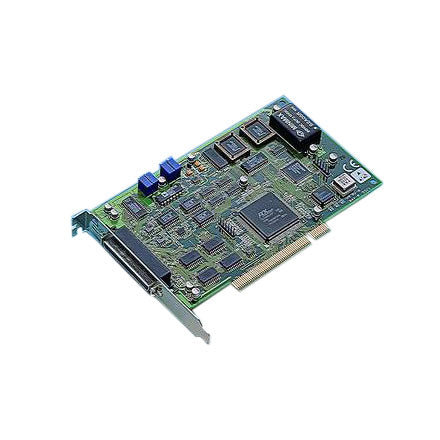

100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card

16-ch single-ended analog inputCost-effective12-bit A/D converter, with up to 100 kHz sampling rate16 single-ended analog inputs12-bit A/D converter, with up to 100 kHz sampling rateProgrammable gain16 digital inputs and 16 digital outputs16-ch digital input and 16-ch digital outputTwo 12-bit analog output channelsTwo 12-bit analog output channelsOnboard FIFO memory (1,024 samples)Onboard FIFO memory (1024 samples)Automatic channel/gain scanningAutomatic channel/gain scanningOnboard programmable counterProgrammable gainOnboard programmable counter

Analog Input - Channels: 16 | Analog Input - Input Range: ±0.625 V ±1.25 V, ±2.5 V, ±5 V, ±10 V | Analog Input - Resolution(Bits): 12-bit | Analog Input - Sampling Rates(S/s): 100 KS/s (sum) | Counter/Encoder Input - Channels: 2 | Counter/Encoder Input - Counting Range: 16-bit | Digital Input - Channels: 16 (TTL) | Digital Output - Channels: 16 (TTL) | General - Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt

• Model: PCI-1711UL-CE
