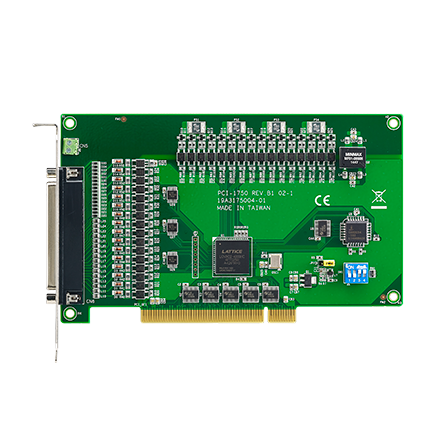

32-ch Isolated Digital I/O and 1-ch Counter PCI Card

16 isolated DI and 16 isolated DO channelsHigh voltage isolation on all isolated channels (2,500 VDC)High sink current on isolated output channels (200 mA/channel)Supports dry contact or 5 ~ 50 VDC isolated inputsInterrupt handling capabilityTimer/counter interrupt capability

Counter/Encoder Input - Channels: 1 | Counter/Encoder Input - Counting Range: 16-bit | Digital Input - Channels: 16 (Isolated) | Digital Input - Isolation Protection: 2,500 VDC | Digital Output - Channels: 16 (Isolated) | Digital Output - Isolation Protection: 2,500 VDC | General - Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt

• Model: PCI-1750-BE
