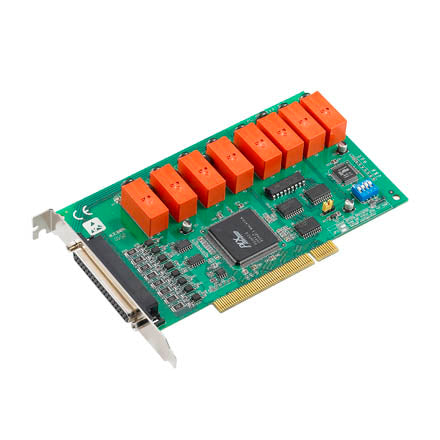

8-ch Relay and 8-ch Isolated Digital Input PCI Card

Wide input range (10 ~ 50 VDC)8 relay output channels and 8 isolated digital input channelsLED indicators to show activated relays4 Form C and 4 Form A type relay output channelsInterrupt handling capabilityOutput status read-backRetained relay output values when hot system resetHigh-voltage isolation on input channels (3,750 VDC)High ESD protection (2,000 VDC)High over-voltage protection (70 VDC)ISA-Compatible with PCL-725Male DB37 matching connector includedBoardID™ switch

Digital Input - Channels: 8 (Isolated) | Digital Input - Isolation Protection: 2,500 VDC | General - Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt | Relay Output - Channels: 4 Form C, 4 Form A | Relay Output - Contact Rating (Resistive): 2 A @ 30 VDC, 2 A @ 250 VAC

• Model: PCI-1761-BE
