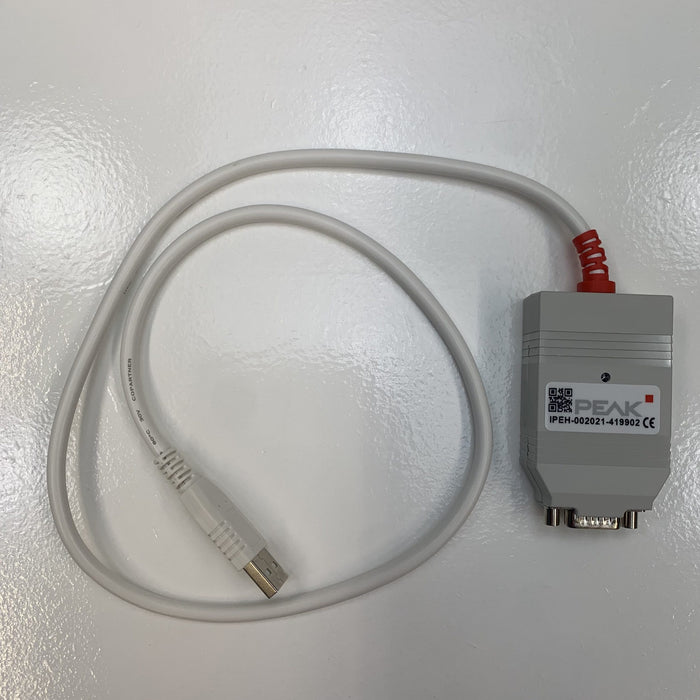

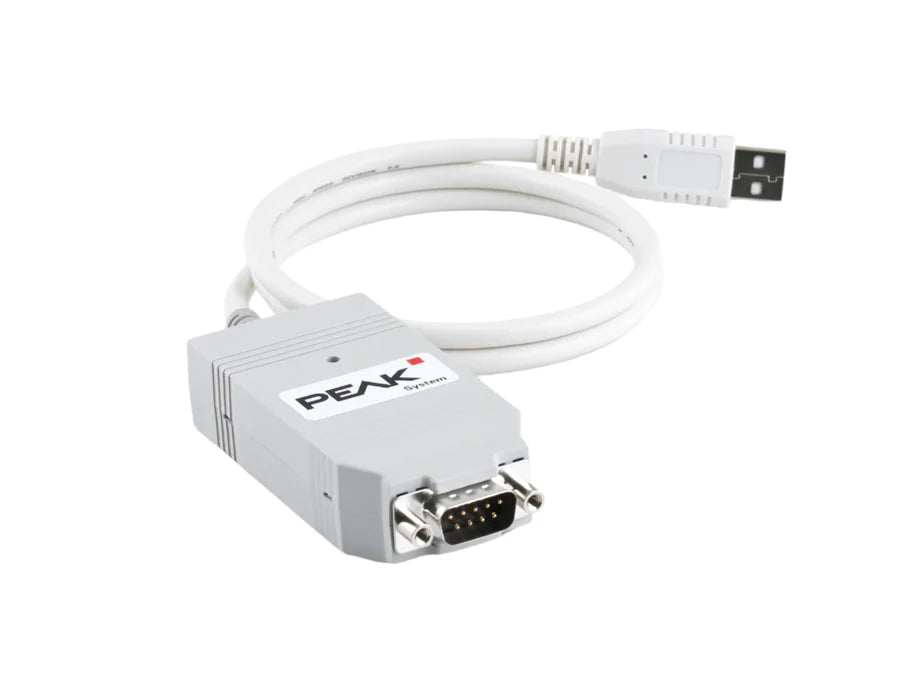

Peak-System PCAN‑USB IPEH‑002021 is a compact non‑isolated adapter: USB‑A to D‑Sub 9 CAN, 5 kbit–1 Mbit/s, LED status, includes PCAN‑View & PCAN‑Basic, Windows/Linux/macOS support.

Key Specifications

• Model / P/N: IPEH‑002021 — non‑opto‑isolated version of PCAN‑USB

• Bus Standard: High‑speed CAN (ISO 11898‑2), supports 5 kbit/s to 1 Mbit/s

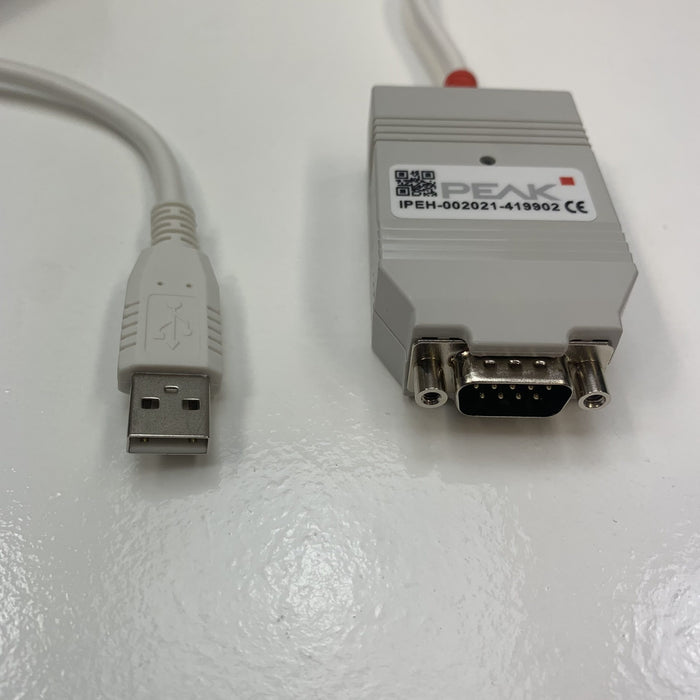

• Connectors: USB‑A (USB 1.1/2.0/3.0 compatible), 9‑pin D‑Sub male for CAN

• Controller / Transceiver: NXP SJA1000 + PCA82C251

• Time-Stamp Resolution: ~42 µs

• Power: Supplied via USB (+5 V), max ~200 mA

• Termination Option: Solder-bridge enabled 120 Ω termination from S/N 200000 onward

• Operating Temp & Enclosure: –40 to +85 °C, IP20 plastic housing

• Software Bundle: Includes PCAN‑View tool and PCAN‑Basic API (Windows/Linux); macOS supported via third-party
