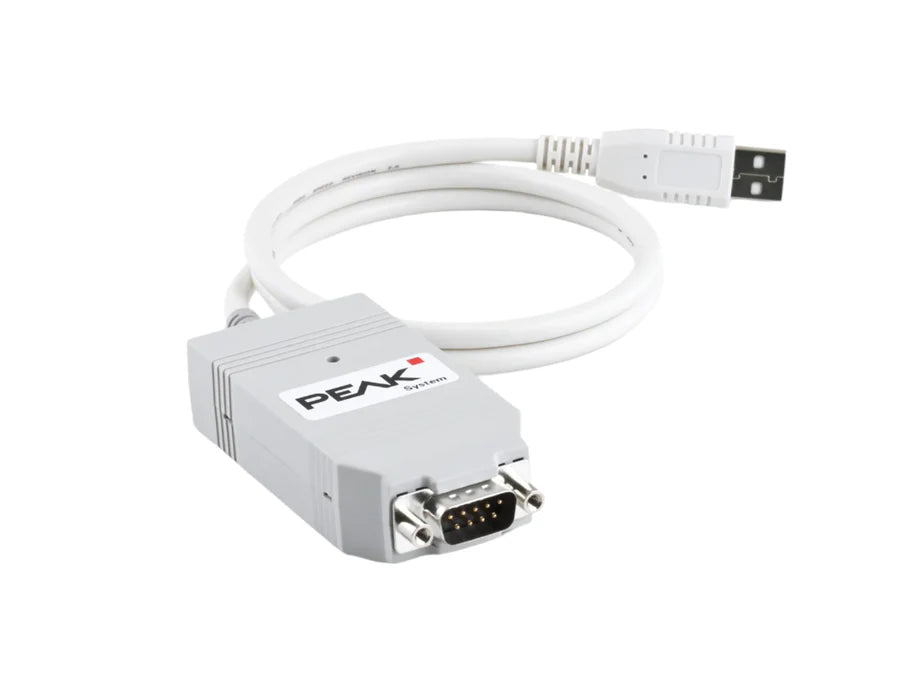

Peak‑System PCAN‑USB IPEH‑002022 is an opto‑isolated CAN‑to‑USB adapter, ISO 11898‑2, 5 kbit–1 Mbit/s, galvanic isolation up to 500 V, rugged full-speed USB support (Windows/Linux/Mac).

Key Specifications

• Model / P/N: PCAN‑USB IPEH‑002022 – opto‑decoupled version with 500 V galvanic isolation

• Bus Standard: High-speed CAN (ISO 11898‑2), supports bit rates from 5 kbit/s to 1 Mbit/s

• Connector & USB: USB‑A (1.1/2.0/3.0 compatible), D‑Sub 9 for CAN

• Isolation: Galvanic isolation on CAN lines up to 500 VDC

• CAN Transceivers: NXP SJA1000 controller, PCA82C251 transceiver

• Time‑Stamp Accuracy: ~42 µs resolution

• Operating Temp: –40 °C to +85 °C

• Dimensions & Weight: ~87×43×22 mm, 83 g

• Software Bundle: Includes PCAN‑View (CAN monitor) and PCAN‑Basic API; drivers available for Windows and Linux
