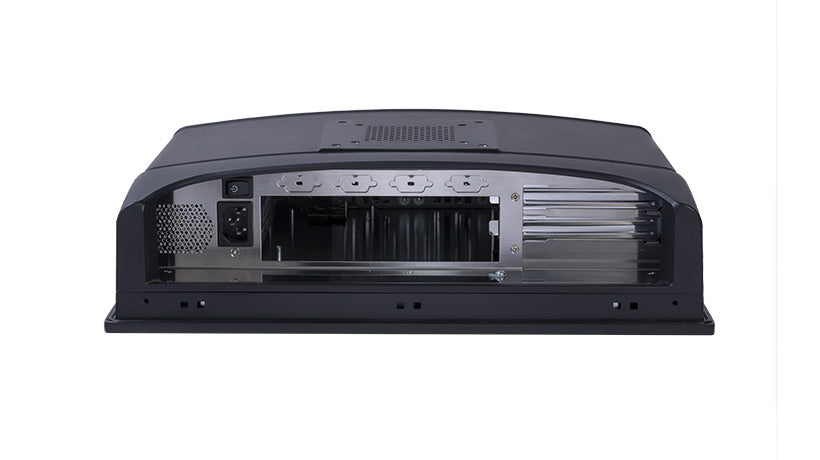

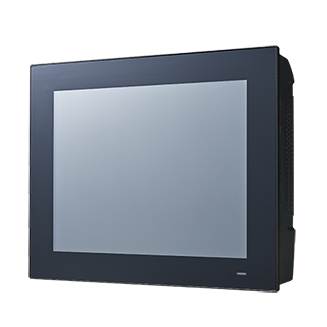

PPC-6151C-RTAE 15'' PPC Optimized Chassis, Res.,100-240VAC
15'' PPC Optimized Chassis, Res.,100-240VAC
15” true-flat PPC with Resistive touchSupports certified mini-ITX motherboard up to 65W TDP processorSupport PCI or PCIe expansion slotFront LED indicators for power statusFront panel is IP66 compliant
Environment - Ingress Protection: Front Panel IP65 | Environment - Relative Humidity: 95% RH (non-condensing) | Environment - Storage Temperature: -30~60 °C (-22~140 °F) | Environment - Vibration Protection: 2 Grms, random | Hardware - Certification: CE, FCC class A, CB/UL, CCC, UKCA, VCCI | Hardware - Power Input: 100~240 VAC | I/O Interface - Power Connector: 1 x AC inlet | LCD Display - Backlight Life (hrs): 50,000 | LCD Display - Display Size: 15" | LCD Display - Luminance (cd/m2): 500 | LCD Display - Max. Resolution: 1024 x 768 | LCD Display - Viewing Angle (H/V°): 176/176 | Mechanical - Dimension (W x H x D): 391 x 313 x 104 mm | Mechanical - Enclosure: Die-cast aluminum alloy, PC + ABS | Mechanical - Mounting: Stand, Wall, VESA, Panel | Mechanical - Weight (Net): 5.03 kg (11.08 lb) | Touchscreen - Touch Type: 5-wire resistive
Datasheet- Model: PPC-6151C-RTAE
