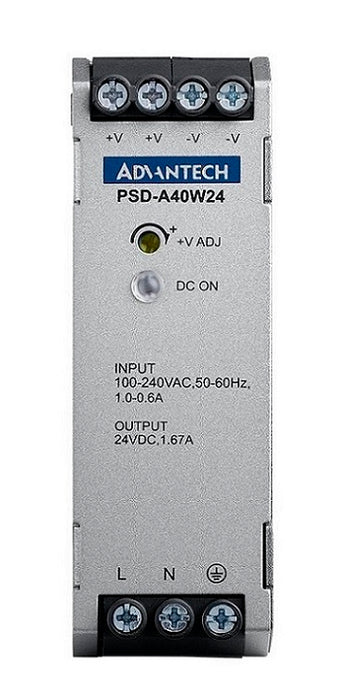

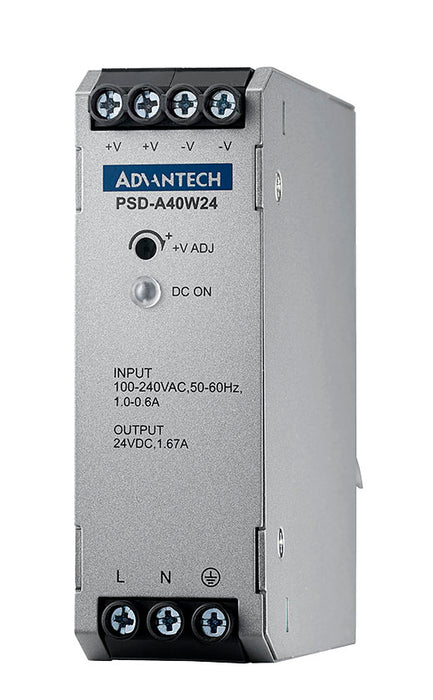

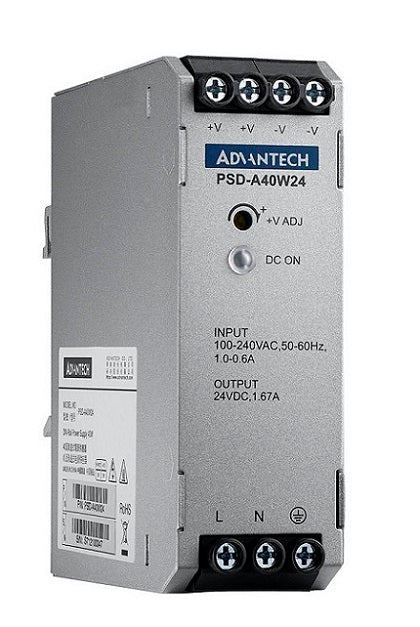

DIN Rail AC to DC 100-240V 40W 24V

Extra slim design with 40 watts outputHigh power density: 2.?27 watts per cubic inchInput range 85 ~ 264 VAC / 110 ~ 375 VDCPower boost with 150% peak loadFull protection with auto recovery functionFull load output up to 60°CAdjustable output

Power Supply - Air Cooling: Conventional | Power Supply - Dimensions (W x H x D): 32 x 90.2 x 100 mm | Power Supply - Efficiency: 89% | Power Supply - Input Current (maximum): 115V @ 1.0A | Power Supply - Input Frequency: 47 ~ 63 Hz | Power Supply - Input Power: AC to DC | Power Supply - Input Voltage: 85 ~ 264V | Power Supply - LED: Green, DC OK | Power Supply - Main Connector: Screw Terminal | Power Supply - Manufacturer: Advantech | Power Supply - Mounting Rail: TS35 | Power Supply - MTBF (hours @ 25°C): 500K | Power Supply - Operating Temperature: -25 ~ 70°C | Power Supply - Output Power: 40W | Power Supply - Output Rating: 24V @ 1.67A | Power Supply - PFC Function: Yes | Power Supply - Power Derating: Full load to 60°C, Derate 2.5% per °C | Power Supply - Safety: CE / FCC / UL / TUV / CB / CCC | Power Supply - Storage Humidity: 95% RH | Power Supply - Storage Temperature: -40 ~ 85°C

• Model: PSD-A40W24
