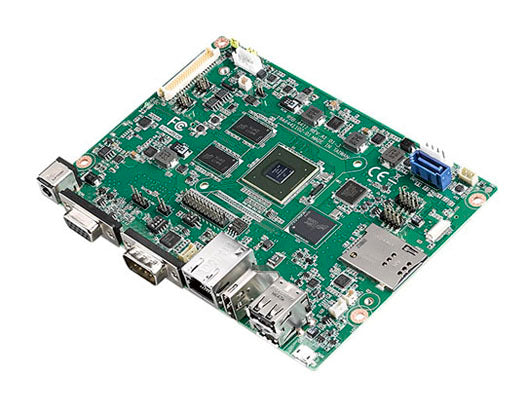

NXP A2 i.MX6 Dual Core/1GB DDR 0~60

NXP Cortex-A9 i.?MX6 Dual / Quad core 1.0 GHzOn-board DDR3 1 GB & 4 GB eMMC NAND FlashHDMI and VGA 1920x1080 at 60Hz, Dual Channel 18/24 bit LVDSSupports full HD 1080P H/W video codec engine3 UART, 1 GbE, 5 USB 2.?0, 20 GPIO, 2 I2C, 1 SPIM.?2 for WIFI/BT support , mini-PCIe for WIFI/3G supportLow power consumptionSupports Linux and Android

Certification - EMC: CE/FCC Class B | Display - Graphic Engine: 2 IPUs. OpenGL ES 2.0 for 3D, BitBlt for 2D and OpenVG 1.1 | Display - H/W Video Codec: Decoder: MPEG-4 ASP, H.264 HP , H.263, MPEG-2 MP,MJPEG BP Encoder: MPEG-4 SP,H.264 BP,H.263,MJPEG BP | Display - HDMI: 1920 x 1080 | Display - LVDS: 2 24-bit LVDS, 1024 x 768 | Display - VGA: 1920 x 1080 | Environment - Operational Temperature: 0~60°C (32~140°F) | Ethernet - Chipset: NXP i.MX6 integrated RGMII | Form Factor - Form Factor: 3.5" SBC | I/O - Audio: Line-Out, Mic-In | I/O - CAN: 2 CAN bus 2.0B | I/O - GPIO: 20-pin 3.3V TTL Level GPIOs | I/O - I2C Bus: 2x | I/O - PCIe: 1 PCIe 1x | I/O - SATA: 1 SATA II | I/O - SDIO: 4-bit SDIO | I/O - Serial port: 2 x 2-wire RS-232, 1 x RSB-232/422/485 | I/O - SPI Bus: 1 | I/O - USB: 1 x USB OTG, 2 x USB Type A, and 3 x USB pin headers | Memory - Capacity: On-board DDR3 1 GB | Memory - Flash: 16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR for board information | Memory - Technology: DDR3 1066 | Operating System - Linux: Yocto Linux & Android | Physical - Dimension (mm): 146 x 102 mm | Power - Power Supply Voltage: Vin: 12-24V | Processor - CPU: NXP ARM® Cortex®-A9 i.MX6 Dual core | RTC - RTC: Yes | Watchdog Timer - WatchDog Timer: 256 Level timer interval, from 0~128 sec

• Model: RSB-4411CD-PNA2E
