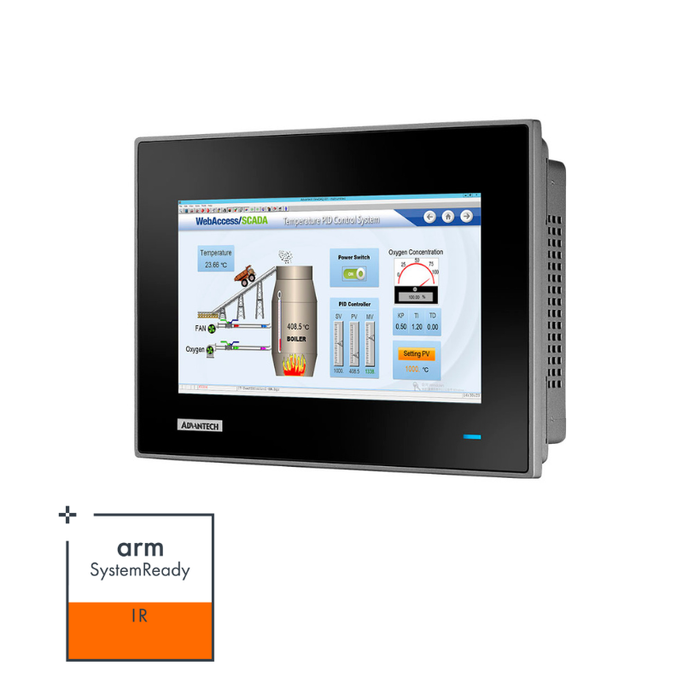

7"i.MX8M Mini Quad,4GB RAM,16GB eMMC WCAN,Yocto

arm SystemReady IR certifiedNXP® ARM® Cortex™-A53 i.?MX 8M Mini quad-core processor7" 16:9 LCD with multi-touch P-CAP and true-flat IP66-rated front panelUp to 4 GB DDR4 RAM and 16 GB eMMC storage onboard2 x 10/100/1000 Mbps LANs with optional IEEE 802.3at/af PoE-PD module support1 mb FRAM backup memory for unexpected power interruptions2 x Serial port with 120? termination resistor that one supports the CAN 2.?0B protocol and offers a programmable bit rate of up to 1 Mb/secEmbedded browser and for rapid Web App developmentSupports Linux Yocto and Android

Environment - Ingress Protection: Front Panel IP66 | Environment - Isolation Protection: Chassis grounding protection | Environment - Operating Temperature: -20~60 °C (-4~140 °F) | Environment - Relative Humidity: 95% RH (non-condensing) | Environment - Shock Protection: 10 G, half sine | Environment - Storage Temperature: -30~70 °C (-22~158 °F) | Environment - Vibration Protection: 2 Grms, random | Hardware - Certification: CB, UL, CE, FCC Class A, CCC, BSMI | Hardware - CPU: NXP® ARM® Cortex™ A53 i.MX8M 1.6 GHz Quad-Core | Hardware - Expansion: 1 x M.2 E Key 2230 | Hardware - Hardware Security: TPM 2.0 | Hardware - I/O: 1 x RS-232, 1 x RS-232/422/485 | Hardware - LAN: 10/100/1000Base-T Ethernet x 2 | Hardware - Memory: 1 x LPDDR4 with 4 GB | Hardware - OS Support: Linux Yocto | Hardware - Power Input: 24 VDC ±20% | Hardware - Storage: 1 x eMMC (16 GB), 1 x micro SD Slot | I/O Interface - LAN Ports: 2 x 10/100/1000 Mbps | I/O Interface - Serial Ports: 1xRS-232/422/485,1xRS-485/Canbus | I/O Interface - USB Ports: 2 x USB 2.0 | LCD Display - Backlight Life (hrs): 50,000 | LCD Display - Display Size: 7" | LCD Display - Luminance (cd/m2): 425 | LCD Display - Max. Resolution: 1024 x 600 | Mechanical - Enclosure: Die cast magnesium alloy, Die-casting aluminum | Mechanical - Mounting: VESA, Panel | Mechanical - Weight (Net): 2 kg (4.41 lb) | Touchscreen - Touch Type: PCAP | Wireless Communication - Standard (Technology): WIFI

• Model: TPC-107W-N32YB
