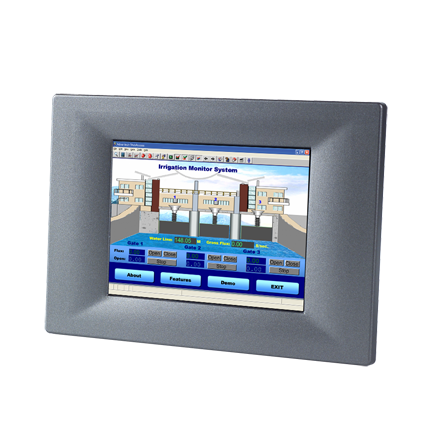

3.5" Touch Panel Computer with Cortex-A8 WinCE6.0

TI Cortex-A8 processor on board3.?5" QVGA TFT LED LCDSuper slim and compact design with plastic housingFanless cooling systemIP65 compliant front panelBuilt-in micro SD card with Windows® CE OS1 x SD card slotAutomatic data flow control RS-485Supports 1Mbit FRAM for data back-up

Environment - Ingress Protection: Front Panel IP65 | Environment - Operating Temperature: 0~50 °C (32~122 °F) | Environment - Storage Temperature: -20~60 °C (-4~140 °F) | Environment - Vibration Protection: 2 Grms, random | Ethernet - Speed: 10/100 Mbps | Hardware - Certification: CE, FCC class A ; CB/UL, CE, FCC Class A, CCC, BSMI | Hardware - CPU: TI® ARM® Cortex™ A8 AM3517 | Hardware - I/O: 1 x USB 2.0 | Hardware - LAN: 1 x 10/100 Mbps | Hardware - Memory: 1 x SO-DIMM with 256 MB DDR2 | Hardware - OS Support: Microsoft® Windows CE 6.0 | Hardware - Power Consumption: 8 W @ 24 VDC | Hardware - Power Input: 18~32 VDC | Hardware - Storage: 512MB on board micro SD card, 1 x SD Card slot | Hardware - Watchdog Timer: Programmable | I/O Interface - Serial Ports: 1 x RS-232/485/Canbus | LCD Display - Backlight Life (hrs): 30,000 | LCD Display - Display Size: 3.5" | LCD Display - Luminance (cd/m2): 450 | LCD Display - Max. Resolution: 320 x 240 | LCD Display - Viewing Angle (H/V°): 160/140 | Mechanical - Dimension (W x H x D): 120.79 x 85.5 x 26.5 mm | Mechanical - Enclosure: ABS | Mechanical - Mounting: Panel | Mechanical - Weight (Net): 0.25 kg (0.55 lb) | Touchscreen - Touch Type: 4-wire resistive

• Model: TPC-31T-E3AE
