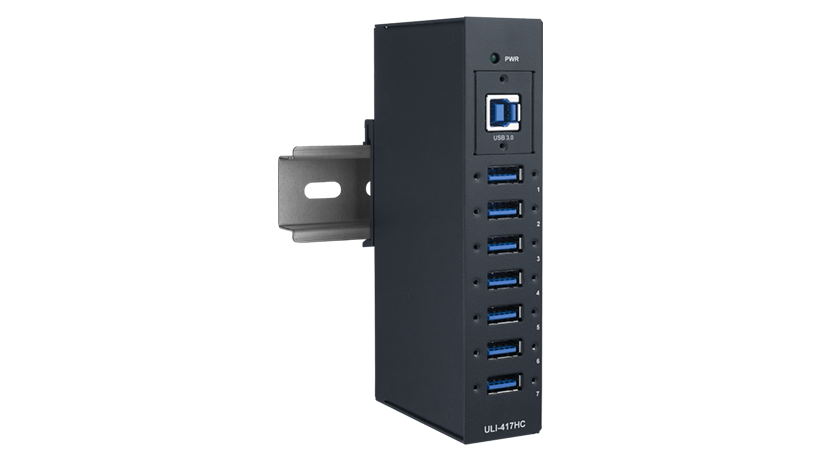

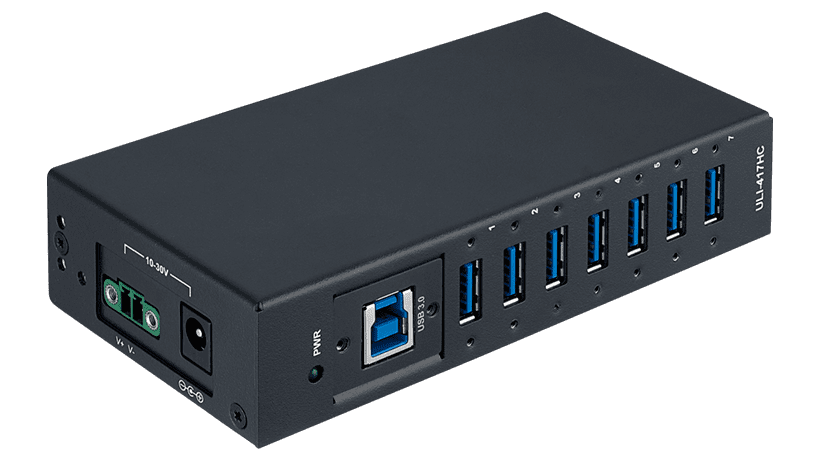

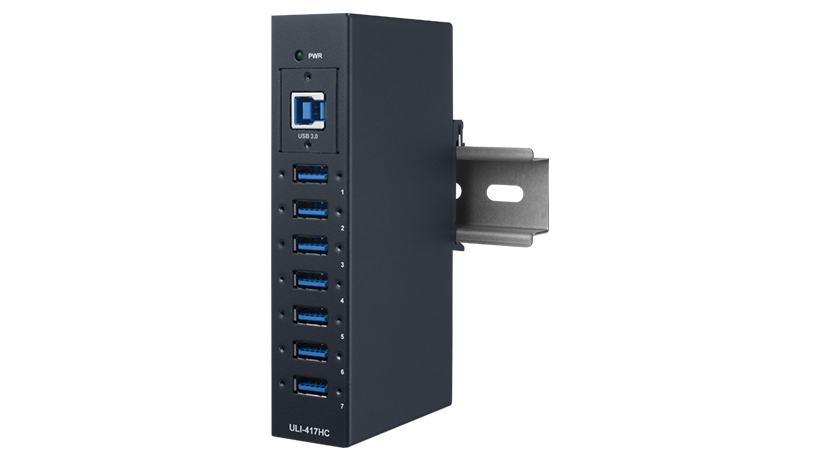

7-port Industrial Isolated USB 3.2 Gen 1 Hub

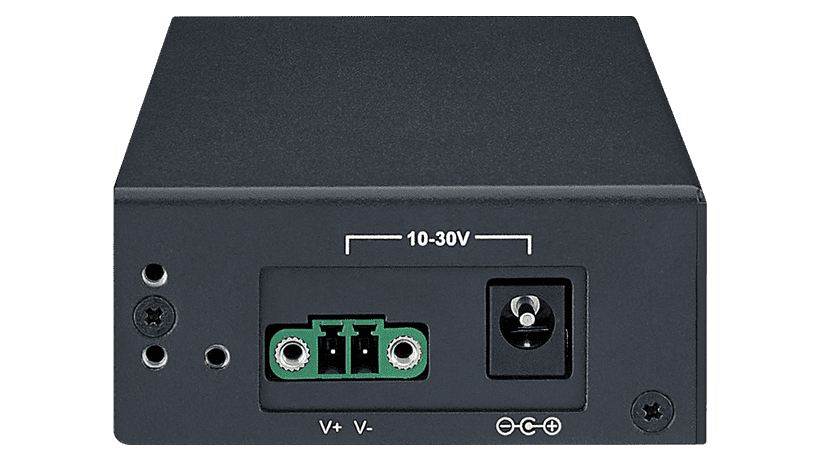

7-port USB 3.?2 Gen1 speeds up to 5 Gbps2.?5kv isolated protection for power port and upstream signal port15 kV ESD level 4 protection and 1kV surge protectionLoad current by external power or USB bus power.Each downstream port supports up to 1.?2A, with a maximum of 3.6A shared by all ports by external power adapter.500 mA Max. shared by all ports by USB bus power10-30VDC Power inputs with polarity reverse protectionWith either the DC power jack or 2-pin terminal block power connectorScrew lock designed for USB3 Vision

Accessory General - Mounting: DIN | Downstream USB Port - Connector Type: Type A (Female) | Downstream USB Port - Maximum Transfer Rate: SuperSpeed (5 Gbps) | Downstream USB Port - Port Number: 7 | Downstream USB Port - Standard: USB 3.2 Gen 1 / USB 3.0 | Environment - Operating Temperature: -10 ~ 60°C (14 ~ 140°F) | Mechanism - Enclosure (Metal): Metal | Power - Power Input (DC): 10 ~ 30 VDC | Protection - ESD Protection: 8 kV (Contact) ; 15 kV (Air) | Protection - Isolation: 2,500 VDC | Upstream USB Port - Connector Type: Type B (Female) | Upstream USB Port - Maximum Transfer Rate: SuperSpeed (5 Gbps) | Upstream USB Port - Standard: USB 3.2 Gen 1 / USB 3.0

• Model: ULI-417HC-A
