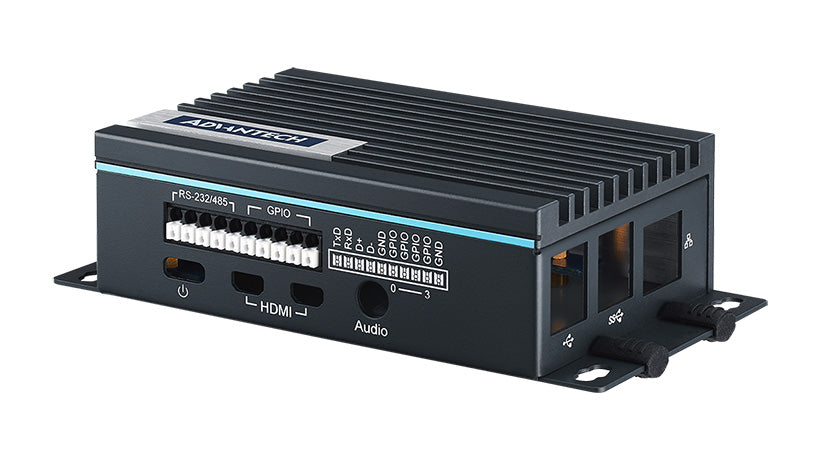

Industrial Raspberry Pi gateway kit with 1 x RS-232/485, 4 x GPIO, 8 GB SD card, and Raspbian OS

UNO-220 industrial-grade chassis transforms RPi 4 into a ruggedized gateway for shopfloor environmentsIndustrial-grade power and I/O gateway kit installed with Raspbian OS provides RPi 4 -ready solutions for rapid prototypingAn power and industrial I/O board for RS-232/485 and GPIO extensionAmazon AWS IoT Greengrass certified

Environment - Ingress Protection: IP40 | Environment - Operating Temperature: 0~50 °C (32~122 °F) | Environment - Relative Humidity: 10~95% RH (non-condensing) | Hardware - Certification: CE, FCC | Hardware - I/O: 4 x GPIO | Hardware - OS Support: Raspbian | Hardware - Power Consumption: 15 W @ 5 VDC | Hardware - Storage: 1 x 8 GB Micro SD card | Hardware - Watchdog Timer: 1~255 s | I/O Interface - Serial Ports: 1 x RS-232/485 | Mechanical - Dimension (W x H x D): 100 x 70 x 32 mm | Mechanical - Enclosure: Aluminum housing | Mechanical - Mounting: Stand, Din-rail | Mechanical - Weight (Net): 0.5 kg (1.1 lb) | Power Requirements - Output PoE+ Power: PSE for 802.3at/802.3af PoE network

• Model: UNO-220-P4N1AE
