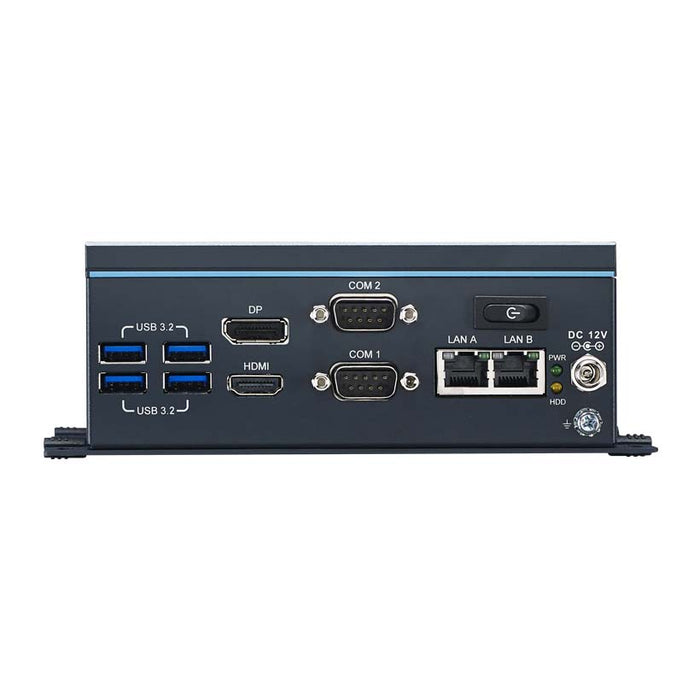

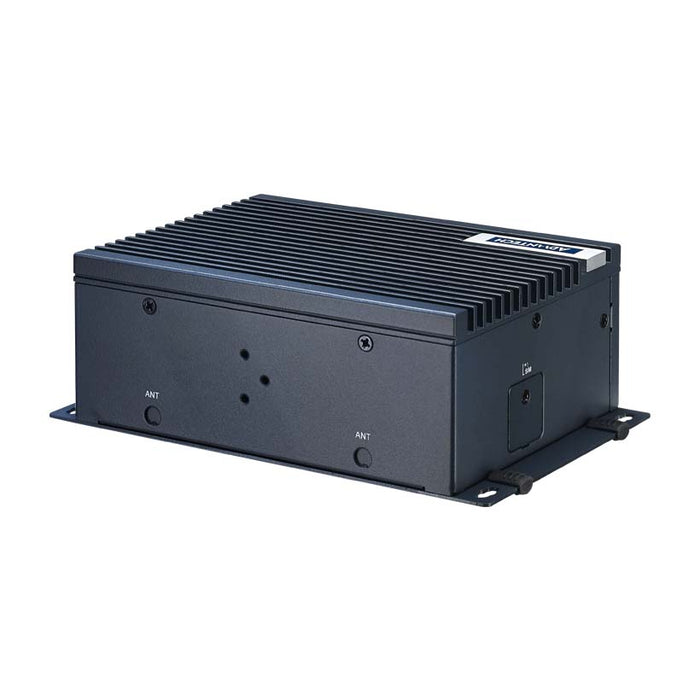

Compact IoT Edge Computer with Intel® Core™ i5-8365U CPU

8th generation Intel® Core™ i processor2 x GbE, 4 x USB3.2, 2 x RS-232/422/485, 1 x HDMI, 1 x DP, 1 x GPIO (8 bit)Compact, fanless designRubber stopper for stand mount and optional kit for DIN-rail mountingThreaded DC jack for reliable power supplyOptimized mechanical design for easy RAM swapping

Environment - Ingress Protection: IP20 | Environment - Operating Temperature: -20~60 °C (-4~140 °F) | Environment - Relative Humidity: 10~95% RH (non-condensing) | Environment - Shock Protection: 50 G, half sine | Environment - Storage Temperature: -40~85 °C (-40~185 °F) | Environment - Vibration Protection: 3 Grms, random | Hardware - Certification: CB, UL, CE, FCC, CCC, BSMI | Hardware - CPU: 8th Gen. Intel® Core™ i5-8365UE 1.60GHz Quad-Core | Hardware - Graphics Engine: Intel® UHD Graphic 620 | Hardware - Hardware Security: TPM 2.0 | Hardware - LED Indicators: PWR | Hardware - Memory: 1 x DDR4 SO-DIMM Slot | Hardware - OS Support: Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux | Hardware - Power Input: 12 VDC | Hardware - Storage: 32 G eMMC | Hardware - Watchdog Timer: 1~255 s | I/O Interface - Audio: Line-Out | I/O Interface - Displays: 1 x HDMI, 1 x DP | I/O Interface - Expansion: 1 x M.2 B key, 1 x M.2 E key | I/O Interface - LAN Ports: 2 x 10/100/1000 Mbps | I/O Interface - Power Connector: 1 x DC Jack | I/O Interface - Serial Ports: 2 x RS-232/422/485 | I/O Interface - USB Ports: 4 x USB 3.2 | Mechanical - Dimension (W x H x D): 150 x 107 x 60 mm | Mechanical - Enclosure: Aluminum housing | Mechanical - Mounting: Stand, Din-rail | Mechanical - Weight (Net): 1.8 kg (3.96 lb)

• Model: UNO-238-85N1AE
