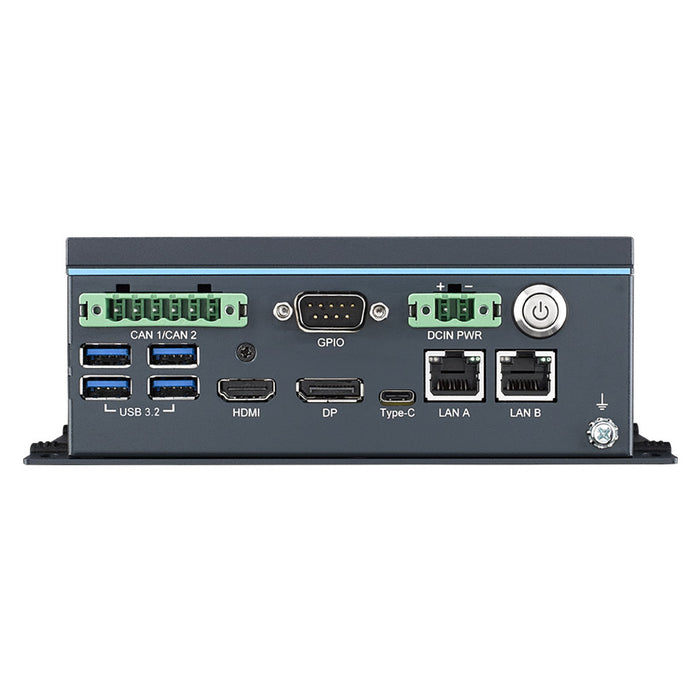

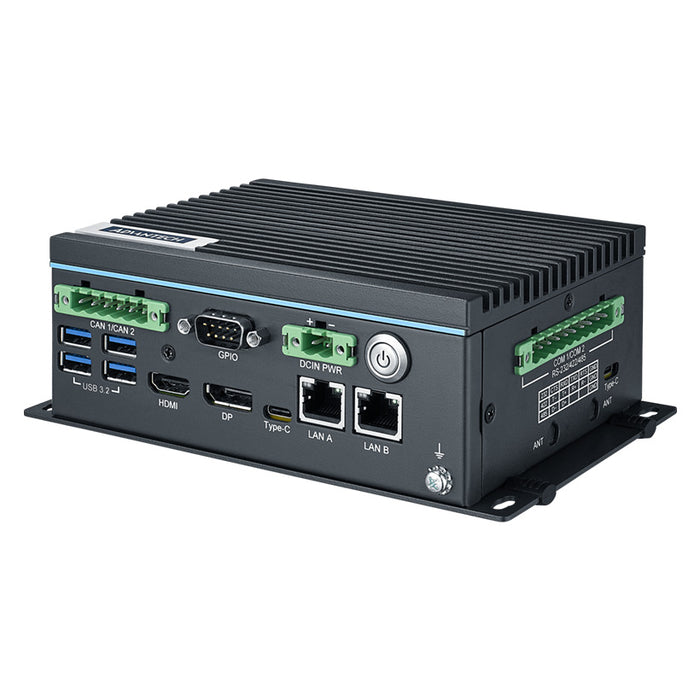

i3-1215UE,4xUSB 3.2 DP+HDMI,2xCOM,GPIO/C

12th Gen Intel® Core™ i Processor up to 10 CoresDual Channel DDR5-4800 up to 64GBM.?2 E-Key, B-Key, M-Key (support NVMe) expansion for storage/wirelessEquipped with CANBus for reliable communicationDC-in terminal block for wiring flexibilitySupports multiple displays for ThinManager solutionSupports software APIs, WISE DeviceOn, WISE Edge365

Environment - Ingress Protection: IP20 | Environment - Operating Temperature: -20~60 °C (-4~140 °F) | Environment - Relative Humidity: 5~95% RH (non-condensing) | Environment - Shock Protection: 50 G, half sine | Environment - Storage Temperature: -40~85 °C (-40~185 °F) | Environment - Vibration Protection: 2 Grms, random | Hardware - Certification: CB, UL, CE, FCC, CCC, BSMI | Hardware - CPU: Intel® Core™ i3-1215UE 1.2GHz Alder Lake 6-Core | Hardware - Graphics Engine: Intel® Iris Xe® Graphics | Hardware - Hardware Security: TPM 2.0 | Hardware - I/O: 2 x CAN Bus, 4 x USB 3.2, 2 x Type C, 1 x GPIO | Hardware - LED Indicators: PWR | Hardware - Memory: 2 x SO-DIMM Slot with DDR5 4800MHz | Hardware - OS Support: Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux | Hardware - Power Input: 12~24 VDC | Hardware - Storage: 1 x SATA M.2 SSD slot (2280 M-Key) | Hardware - Watchdog Timer: 1~255 s | I/O Interface - Displays: 1 x HDMI, 1 x DP | I/O Interface - Expansion: 1 x M.2 B key, 1 x M.2 E key | I/O Interface - LAN Ports: 1 x 10/100/1000 Mbps, 1 x 10/100/2500 Mbps | I/O Interface - Power Connector: 1 x 10-Pin Terminal Block | I/O Interface - Serial Ports: 2 x RS 232/422/485 | Mechanical - Dimension (W x H x D): 150 x 107 x 60 mm | Mechanical - Enclosure: Aluminum housing | Mechanical - Mounting: Stand, Din-rail | Mechanical - Weight (Net): 1.8 kg (3.96 lb)

• Model: UNO-238-C3N1AE
• Contact Us: +91 96993 71392
• Email: sales@elationind.com
• Worldwide Shipping Available
