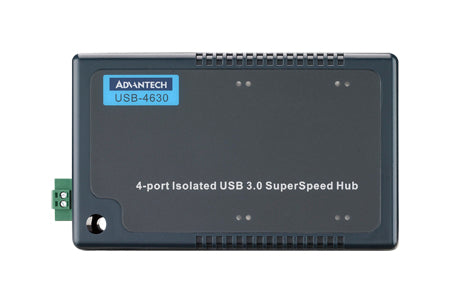

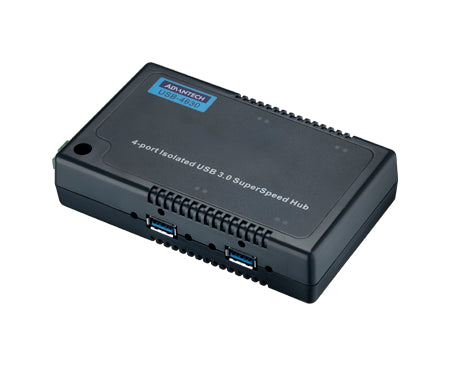

4-Port SuperSpeed Isolated USB 3.0 Hub

2,500 VDC voltage isolation for upstream port4 downstream USB 3.?0 SuperSpeed portsSupplied by external 10 ~ 30 VDC power or by USB bus powerESD protection up to ±15 kV (level 4)LED indicators for power-on and speed of each downstream port

Accessory General - Mounting: DIN | Downstream USB Port - Connector Type: Type A (Female) | Downstream USB Port - Maximum Transfer Rate: SuperSpeed (5 Gbps) | Downstream USB Port - Port Number: 4 | Downstream USB Port - Standard: USB 3.2 Gen 1 / USB 3.0 | Environment - Operating Temperature: 0 ~ 70°C (32 ~ 158°F) | Mechanism - Enclosure (Metal): Metal | Power - Power Input (DC): 10 ~ 30 VDC | Protection - ESD Protection: 8 kV (Contact) ; 15 kV (Air) | Protection - Isolation: 2,500 VDC | Upstream USB Port - Connector Type: Type B (Female) | Upstream USB Port - Maximum Transfer Rate: SuperSpeed (5 Gbps) | Upstream USB Port - Port Number: 1

• Model: USB-4630-BE
