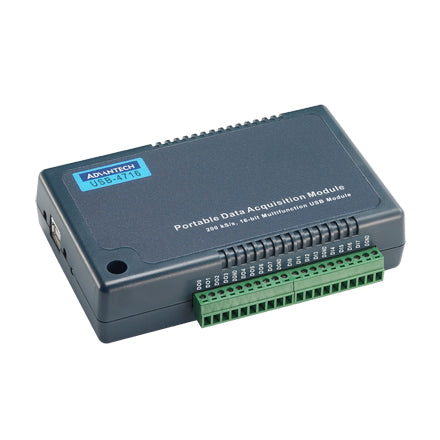

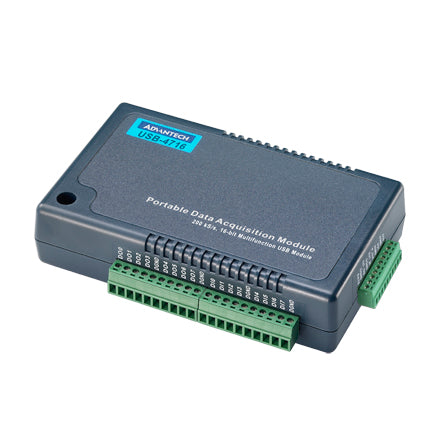

200KS/s, 16-bit USB Muntifunction Module

Supports USB 3.?0 SuperSpeedBus-powered16 analog input channels16-bit resolution AISampling rate up to 200 kS/s8-ch DI/8-ch DO, 2-ch AO and one 32-bit counterDetachable screw terminal on modulesSuitable for DIN-rail mountingOne lockable USB cable for secure connection includedPortable

Analog Input - Input Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, 0~10 V, 0~5 V, 0~2.5 V, 0~1.25 V | Analog Input - Resolution(Bits): 16-bit | Analog Input - Sampling Rates(S/s): 200 KS/s (sum) | Analog Output - Channels: 2 | Analog Output - Resolution: 16-bit | Analog Output - Update Rate(S/s): Static update | Counter/Encoder Input - Channels: 2 | Counter/Encoder Input - Counting Range: 32-bit | Digital Input - Channels: 8 (TTL) | Digital Output - Channels: 8 (TTL) | General - Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt

• Model: USB-4716-BE
