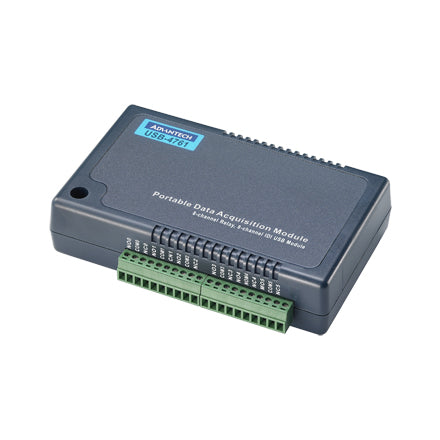

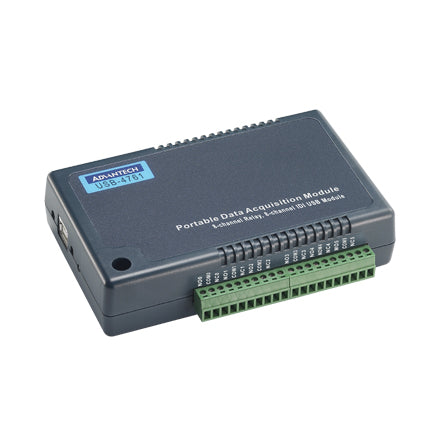

8ch Relay & 8ch Isolated DI USB Module

Compatible with 1.?1/2.0Bus-powered8 relay output channels and 8 isolated digital input channelsLED indicators to show activated relays8 Form C type relay output channelsHigh-voltage isolation on input channels (2,500 VDC)High ESD protection (2,000 VDC)Wide input range (5 ~ 30 VDC)Interrupt handling capabilityPortableDetachable screw terminal on modulesSuitable for DIN-rail mountingOne lockable USB cable for secure connection included

Digital Input - Channels: 8 (Isolated) | Digital Input - Isolation Protection: 2,500 VDC | General - Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt | Relay Output - Channels: 8 Form C | Relay Output - Contact Rating (Resistive): 1 A @ 30 VDC, 0.3 A @ 110 VAC, 0.5 A @ 120 VAC, 0.25 A @ 240 VAC

• Model: USB-4761-CE
