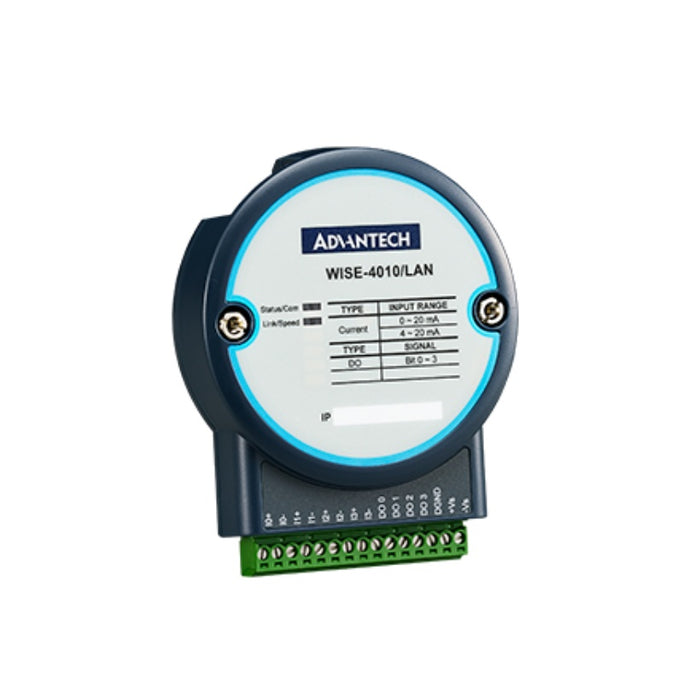

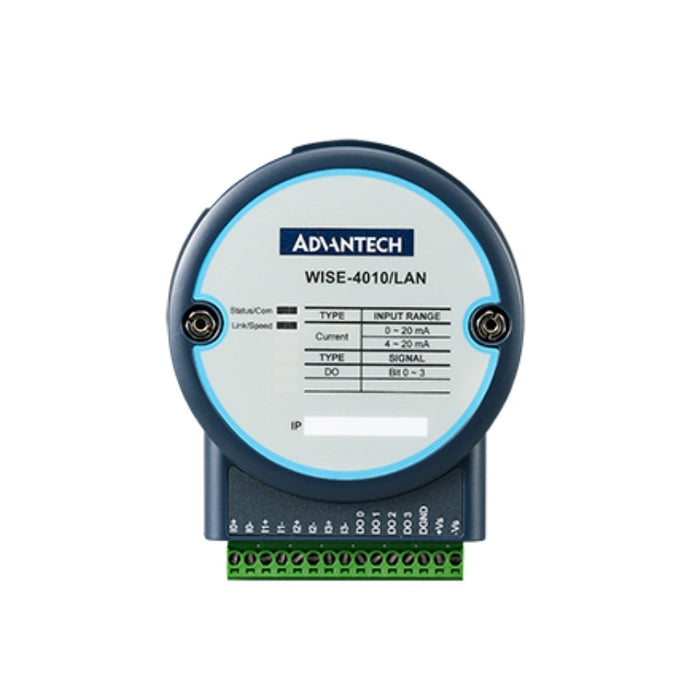

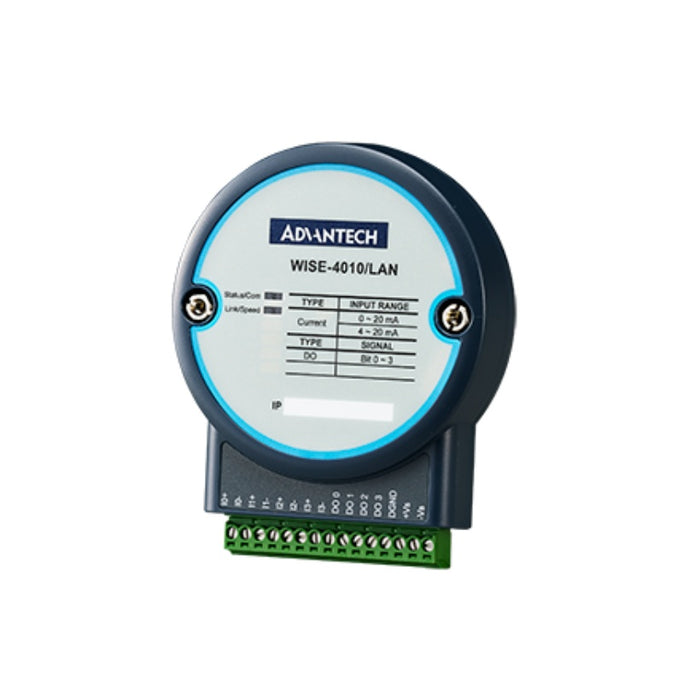

4-ch CI 4-ch DO IoT Ethernet I/O Module

Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTTSupports RESTful web API in JSON formatSupports local logging with RTC time stampSupports mobile device web configuration in HTML5Supports 10~30 VDC power with reverse protectio

Analog Input - Channels: 4 | Analog Input - Input Range: 0~20 mA, 4~20 mA | Analog Input - lnput Type: mA | Analog Input - Resolution(Bits): 12-bit | Analog Input - Sampling Rates(S/s): 10/100 S/s (per channel) | Communications - Interface: Ethernet | Digital Output - Channels: 4 (TTL) | Digital Output - Voltage Rating: 0~30 VDC | Environment - Operating Temperature: -40~70 °C (-40~158 °F) | Environment - Storage Humidity: 0~95% RH (non-condensing) | Environment - Storage Temperature: -40~85 °C (-40~185 °F) | General - Connectors: 1 x RJ45, 1 x 15-pin plug-in screw terminal | General - Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP | Power Requirements - Input Voltage: 10~30 VDC

• Model: WISE-4010LAN-B
