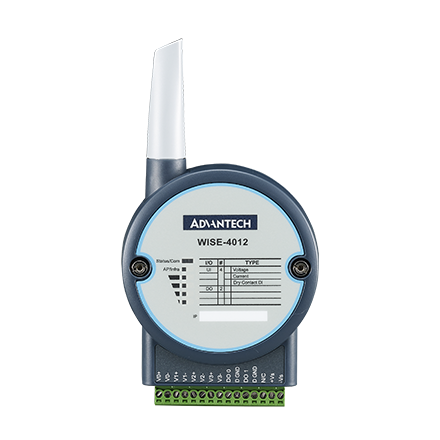

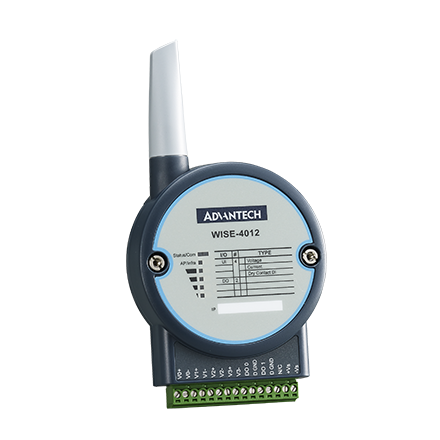

4AI/2DO 2.4G WiFi IoT Wireless I/O

Supports IEEE 802.11 a/b/g/n (2.?4GHz) Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTPs, MQTTStores 10,000+ data points locally with SNTP/RTC time sync and WDT auto connection recoverySupports RESTful web API in JSON format for IoT integrationWith UDP-based AES-128 encrypted wireless P2P, abnormal inputs can automatically trigger up to 16 WISE modules in the field

Analog Input - Burn-out Detection: Yes | Analog Input - Channels: 4 | Analog Input - Input Range: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, 0~150 mV, 0~500 mV, 0~1 V, 0~5 V, 0~10 V, 0~20 mA, 4~20 mA, ±20 mA | Analog Input - Isolation Protection: 4,200 VDC | Analog Input - lnput Type: V, A, Dry contact DI | Analog Input - Resolution(Bits): 16-bit | Analog Input - Sampling Rates(S/s): 10/100 Hz (sum) | Digital Input - Channels: 4 (TTL) | Digital Input - Input Voltage: Dry Contact Logic level 0: open Logic level 1: close to Iso.GND | Digital Input - Isolation Protection: 4,200 VDC | Digital Output - Channels: 2 (TTL) | Digital Output - Isolation Protection: 4,200 VDC | Environment - Operating Temperature: -25~70 °C (-13~158 °F) | Environment - Relative Humidity: 20~95% RH (non-condensing) | Environment - Storage Humidity: 0~95% RH (non-condensing) | Environment - Storage Temperature: -40~85 °C (-40~185 °F) | General - Connectors: 1 x Plug-in screw terminal | General - Humidity (Operating): 20~95% RH (non-condensing) | General - Humidity (Storage): 0~95% RH (non-condensing) | General - Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT | Hardware - Certification: CE, FCC Class A, R&TTE, NCC, SRRC, RoHS, KC | Hardware - LED Indicators: Status, Communication (TX/RX), AP/Infra, Signal Strength | Hardware - Power Consumption: 2.5 W @ 24 VDC | Hardware - Power Input: 10~30 VDC | Hardware - Watchdog Timer: 1.6 s | Mechanical - Dimension (W x H x D): 80 x 148 x 25 mm | Mechanical - Enclosure: PC | Mechanical - Mounting: DIN-rail, Wall, Stack | Mechanical - Weight (Net): 0.15 kg | Power Requirements - Input Voltage: 10~30 VDC | Wireless Communication - Frequency Band: IEEE 802.11 b/g/n 2.4 (GHz) | Wireless Communication - Standard (Technology): WIFI

• Model: WISE-4012-AE
