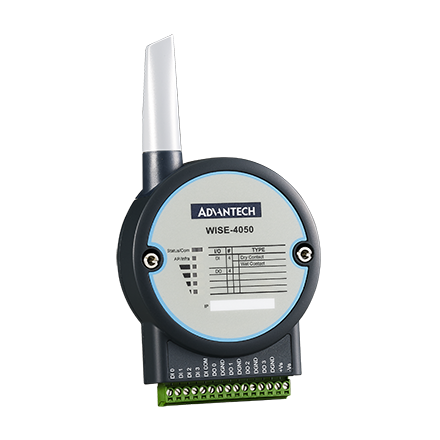

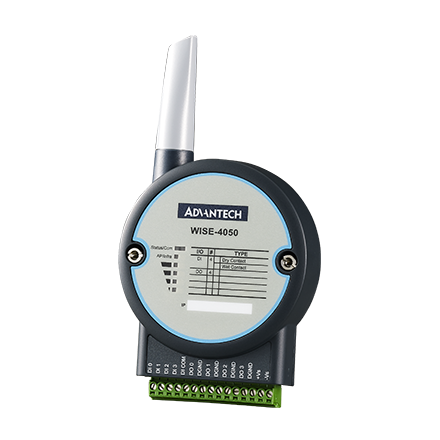

4-ch DI and 4-ch DO IoT Wireless I/O Module

Supports IEEE 802.11 a/b/g/n (2.?4GHz) Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTPs, MQTTStores 10,000+ data points locally with SNTP/RTC time sync and WDT auto connection recoverySupports RESTful web API in JSON format for IoT integrationWith UDP-based AES-128 encrypted wireless P2P, abnormal inputs can automatically trigger up to 16 WISE modules in the field

Digital Input - Channels: 4 (TTL) | Digital Input - Input Voltage: Dry Contact Logic level 0: Open Logic level 1: Close to DI COM Wet Contact Logic level 0: 0~3 VDC Logic level 1: 10~30 VDC | Digital Input - Isolation Protection: 4,200 VDC | Digital Output - Channels: 4 (TTL) | Digital Output - Isolation Protection: 4,200 VDC | Environment - Operating Temperature: -25~70 °C (-13~158 °F) | Environment - Relative Humidity: 20~95% RH (non-condensing) | Environment - Storage Humidity: 0~95% RH (non-condensing) | Environment - Storage Temperature: -40~85 °C (-40~185 °F) | General - Connectors: 1 x Plug-in screw terminal | General - Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT | Hardware - Certification: CE, FCC Class A, R&TTE, NCC, SRRC, RoHS, KC, ANATEL | Hardware - LED Indicators: Status, Com, AP/Station, Signal Strength | Hardware - Power Consumption: 2.2 W @ 24 VDC | Hardware - Power Input: 10~30 VDC | Hardware - Watchdog Timer: 1.6 s | Mechanical - Dimension (W x H x D): 80 x 148 x 25 mm | Mechanical - Enclosure: PC | Mechanical - Mounting: DIN-rail, Wall, Stack | Mechanical - Weight (Net): 0.15 kg | Power Requirements - Input Voltage: 10~30 VDC | Wireless Communication - Frequency Band: IEEE 802.11 b/g/n 2.4 (GHz) | Wireless Communication - Standard (Technology): WIFI | Wireless Communication - Standard(Technology): WIFI

• Model: WISE-4050-B
