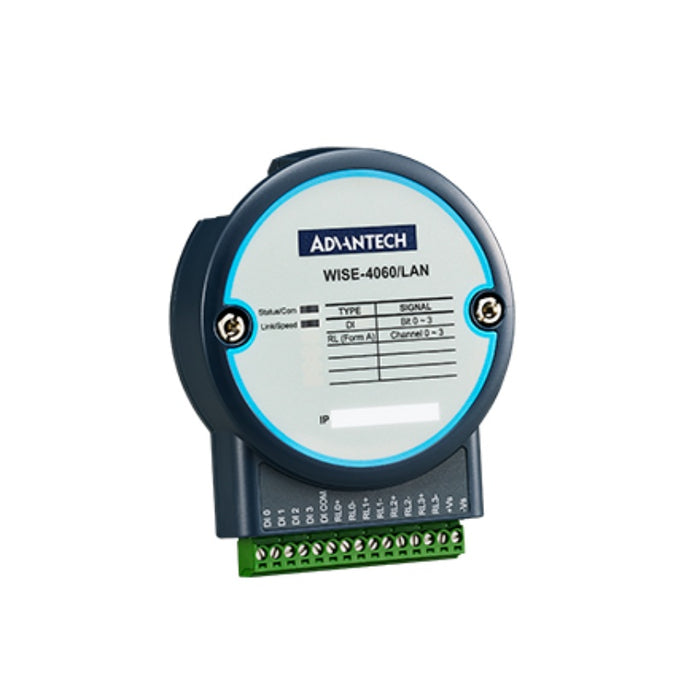

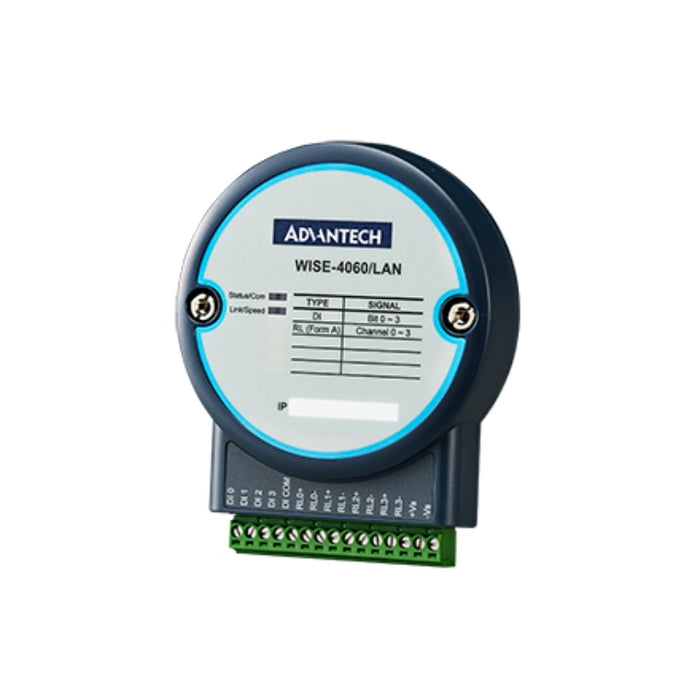

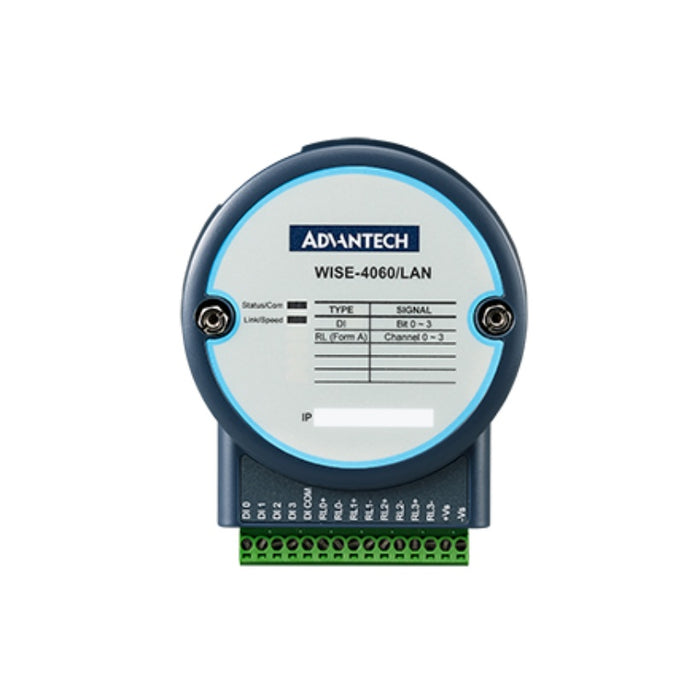

4-ch DI and 4-ch Relay IoT Ethernet I/O Module

Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTTSupports RESTful web API in JSON formatSupports local logging with RTC time stampSupports mobile device web configuration in HTML5Supports 10~30 VDC power with reverse protection

Communications - Interface: Ethernet | Environment - Operating Temperature: -40~70 °C (-40~158 °F) | Environment - Storage Humidity: 0~95% RH (non-condensing) | Environment - Storage Temperature: -40~85 °C (-40~185 °F) | General - Connectors: 1 x RJ45, 1 x 15-pin plug-in screw terminal | General - Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP | Isolated Digital Input - Channels: 4 | Isolated Digital Input - Input Voltage: Dry Contact Logic level 1: close to DI COM Logic level 0: open Wet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC | Isolated Digital Input - Isolation Protection: 3000 Vrms | Power Requirements - Input Voltage: 10~30 VDC | Relay Output - Channels: 4 | Relay Output - Contact Rating (Resistive): 3 A @ 30 VDC, 5 A @ 250 VAC | Relay Output - Relay Type: 1 x Form A

• Model: WISE-4060LAN-B
