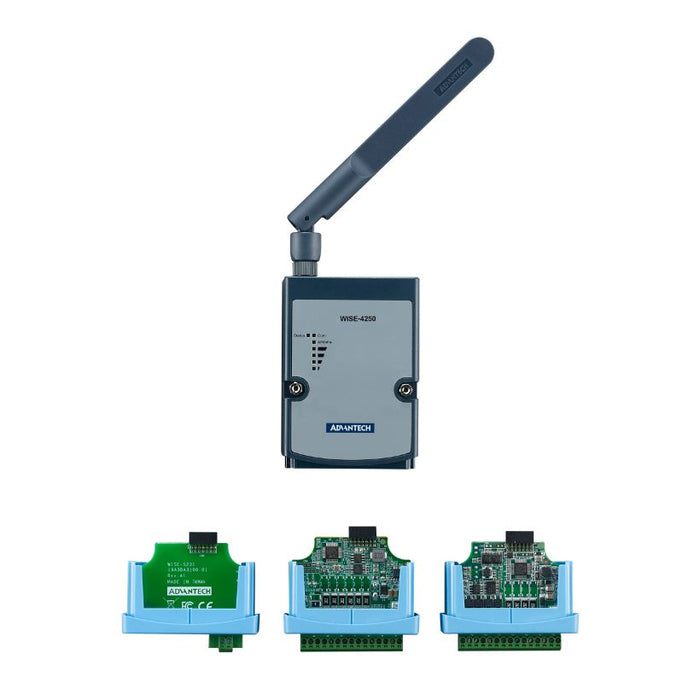

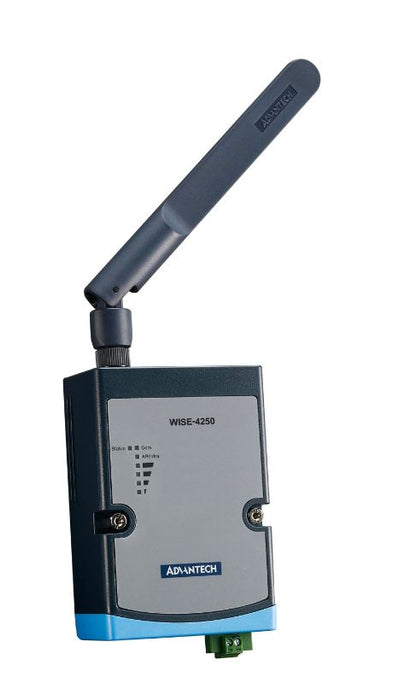

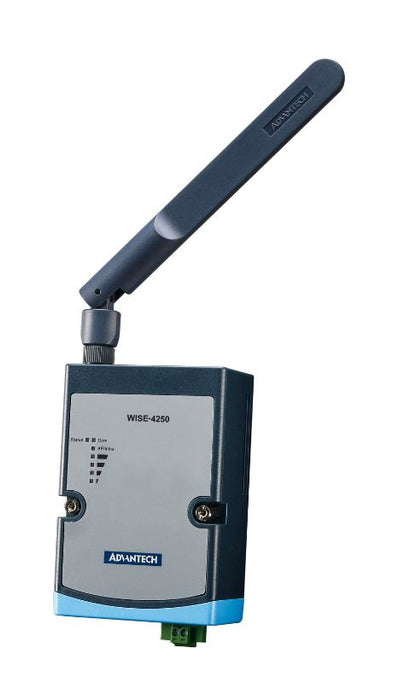

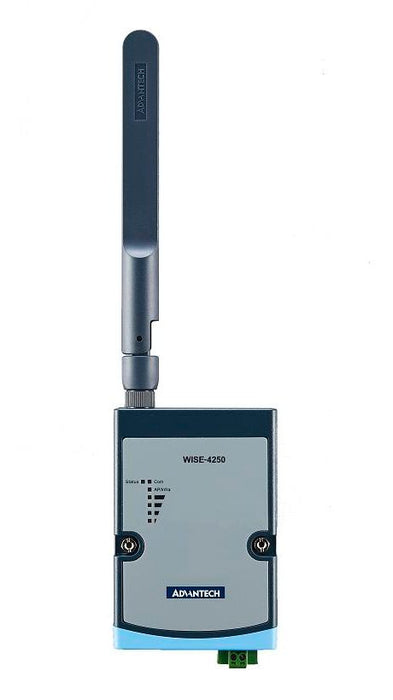

Wi-Fi 802.11a/b/g/n/ac 2.4/5G IO module

Supports IEEE 802.11 ac (2.?4/5GHz) for stable wireless connectivitySupports interchangeable I/O and Sensor modules (additional purchase required) and is easily configured with web UISupports MQTT and RESTful API protocols for uploading data to cloud service platforms such as AWS, Azure, SCADA, and WebAccessSmart Roaming enables seamless AP switchingSupports WPA3 / TLS 1.?3 encryption and X.509 certificate authentication for secure data transmissionWith UDP-based AES-128 encrypted wireless P2P, abnormal inputs can automatically trigger up to 16 WISE modules in the fieldStores 10,000+ data points locally with SNTP/RTC time sync and Watchdog timer auto connection recovery

Environment - Operating Temperature: -25~70 °C (-13~158 °F) | Environment - Relative Humidity: 20~95% RH (non-condensing) | Environment - Storage Humidity: 0~95% RH (non-condensing) | Environment - Storage Temperature: -40~85 °C (-40~185 °F) | General - Protocol: Modbus/TCP, TCP, UDP, HTTP, HTTPS, DHCP, MQTT, SNTP, Modbus/RTU, REST | Hardware - Certification: CE, FCC, RoHS, TELEC, NBTC | Hardware - LED Indicators: Status, Line-power, Wireless Com, Initial/Normal, Signal Strength | Hardware - Power Consumption: 1.2 W @ 24 VDC | Hardware - Watchdog Timer: 1.6 s | Mechanical - Dimension (W x H x D): 70 x 102 x 38 mm | Mechanical - Enclosure: PC | Mechanical - Mounting: DIN-rail, Wall, Pole, Stack | Mechanical - Weight (Net): 0.5 kg (1.1 lb) | Power Requirements - Input Voltage: 10~50 VDC | Protection - Short Circuit Protection: Yes | Wireless Communication - Frequency Band: IEEE 802.11 a/b/g/n/ac 2.4/5 (GHz) | Wireless Communication - Standard (Technology): WIFI

• Model: WISE-4250-A
